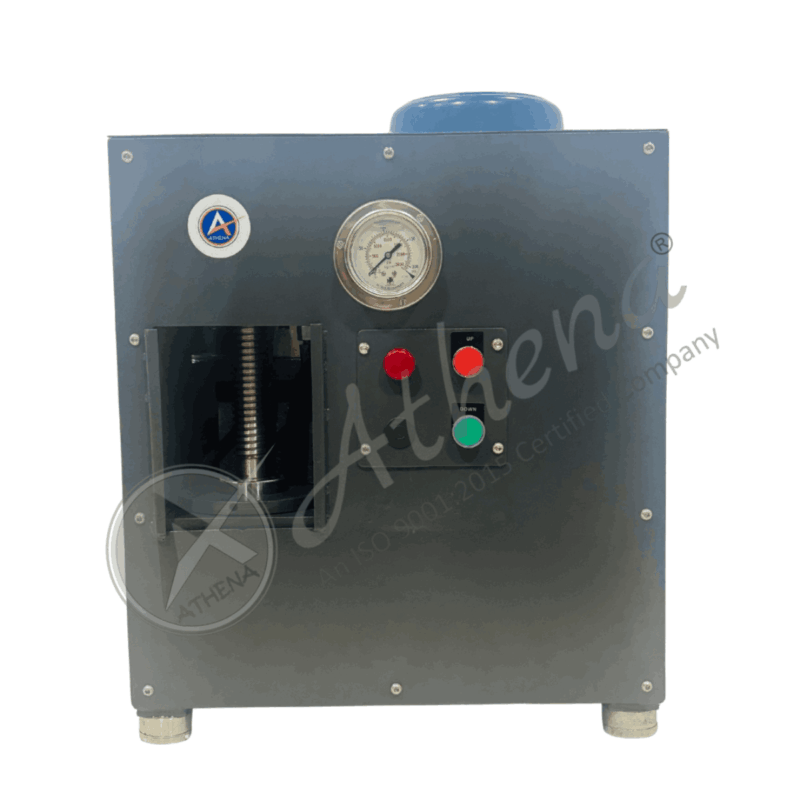

Automatic Hydraulic Press
Precision-Engineered Pellet Press for IR/FTIR/XRF Sample Preparation
Athena Instruments introduces the Automatic Hydraulic Press, a robust and precision-driven pellet press specifically designed for the automated compaction of solid samples used in IR, FTIR, and XRF analysis. Built with industrial-grade materials and advanced hydraulic control, this compact press delivers uniform pressure, enhanced safety, and consistent pellet quality across pharmaceutical, petrochemical, environmental, and research laboratories.
Available in multiple tonnage capacities (15T, 25T, and 40T), the press is engineered for stability, automation, and ease of use. All models are thoroughly tested for pressure stability and certified to meet global quality and safety standards including CE, ISO 9001:2015, and FDA.
Key Features :
- High-Grade Construction : Built with a powder-coated metallic body and precision-machined hydraulic assembly for long-term durability and minimal maintenance.
- Fully Automatic Operation : Integrated with a digital timer and pressure control, the press ensures automatic pressing and ram retraction for reliable sample formation.
- Dual Mode Functionality : Supports both automatic and manual operation, allowing users to control ejection manually when required.
- Stable Pressure Delivery : Ensures consistent pressure hold (≤1 MPa / 5 min) to support accurate and uniform pellet formation.
- Enhanced Safety Design : Equipped with a transparent polycarbonate safety shield, emergency stop button, stroke limiter, and electronic interlocks for operator protection.
- Compact & Efficient : Designed for space-constrained labs with a modular layout, offering easy setup, safe operation, and smooth sample handling.
Applications
IR/FTIR/XRF Sampling
Ideal for preparing clean, consistent solid pellets for use in spectroscopic and elemental analysis.
Pharmaceutical Testing
Used to compact powdered samples for analytical quality testing in formulations and R&D labs.
Academic & Industrial Research
Reliable for repeated use in scientific institutes and research labs for pressing powder specimens.
Materials & Polymer Labs
Supports standard and customized sample compaction for thermal, optical, or chemical studies.
Product Models & Specifications
|
Model Name |
Pressure Range |
Piston Diameter |
Double Stroke |
Oil Pump Capacity |
Motor HP |
Table Diameter |
Workspace (mm) |
Weight |
|---|---|---|---|---|---|---|---|---|
|
AT AHP–15T |
0–15 Ton |
55 mm |
50 mm |
10 ltr |
10 HP |
160 ×160 mm |
150 × 150 × 230 |
70 kg |
| AT AHP–25T | 0–25 Ton | 60 mm | 50 mm | 30 ltr |
2 HP |
200 ×200 mm | 170 × 170 × 230 | 120 kg |
| AT AHP–40T | 0–40 Ton | 85 mm | 50 mm | 40 ltr | 3 HP | 265 ×265mm | 230 × 230 × 230 | 180 kg |
- Motor: Crompton Make
- Pressure Stability: ≤1 MPa / 5 min
- Includes Pressure Relief Valve, Solvent Valve, and Gear Pump.
- Operation Mode: Fully automatic with manual override
- Power Supply: 230V AC, 50 Hz
|
Model Name |
Die Set Compatibility |
|---|---|
| AT AHP–15T | 5 - 25 mm |
| AT AHP–25T | 15 – 50 mm |
| AT AHP–40T | 40 – 100 mm |
Additional Technical Highlights
Control System:
Integrated timer, emergency stop, and dual operation switch
Hydraulic Sealing:
Leak-free construction with pressure cut-off and stroke limiter
Low Noise Design:
Quiet operation suited for enclosed lab environments
Maintenance Access:
Quick access to internal components for inspection or servicing
Sample Integrity:
Delivers flat, dense pellets with mirror-like finish using compatible die sets
Why Choose Athena Instruments Automatic Hydraulic Press?
Trusted Performance, Certified Quality
Athena’s Automatic Hydraulic Presses are CE certified, ISO 9001:2015 compliant, and tested under rigorous internal standards. Designed for long-term use, ease of operation, and consistent results, these presses are a valuable asset to any lab requiring safe, reliable, and precise sample preparation for solid-state analysis.
