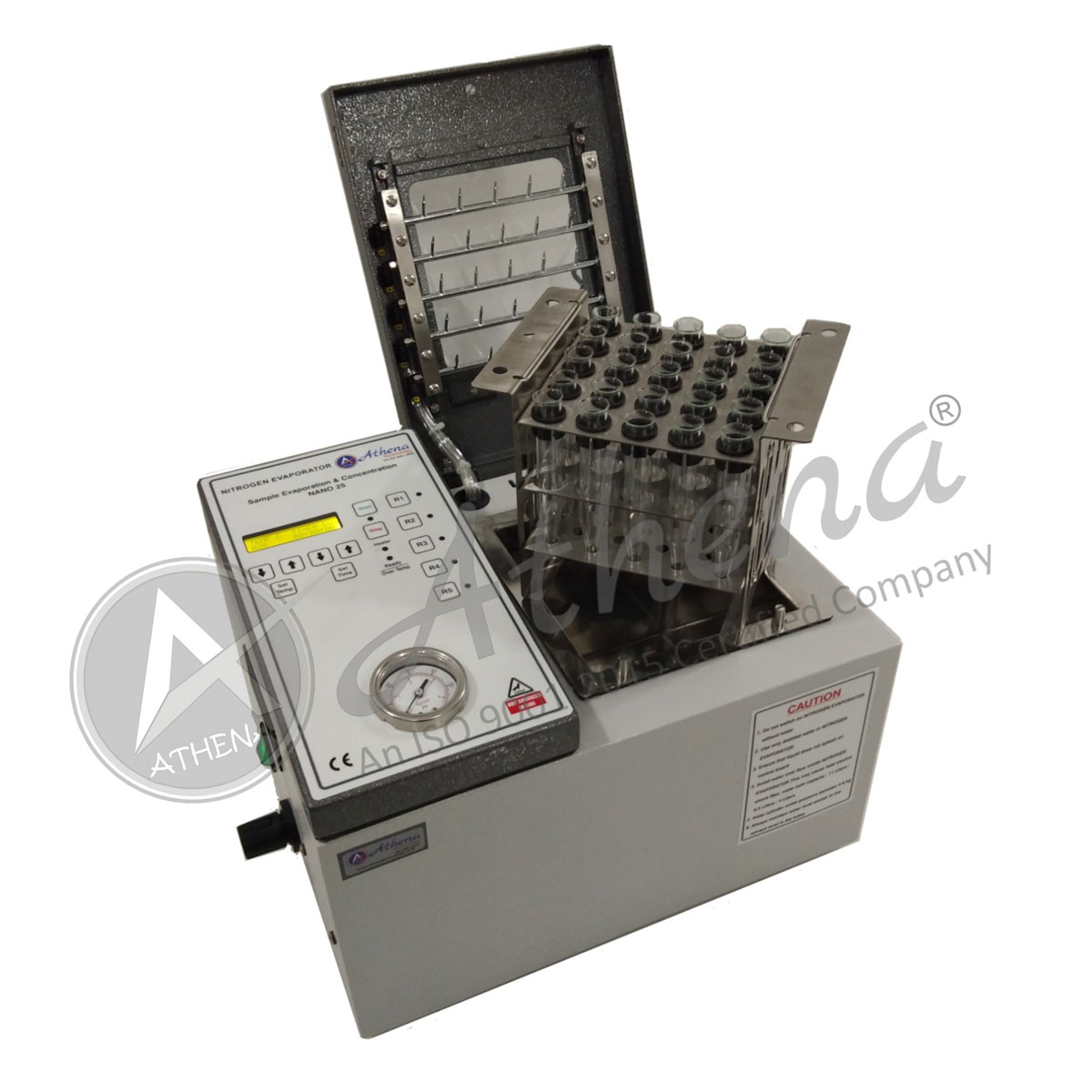

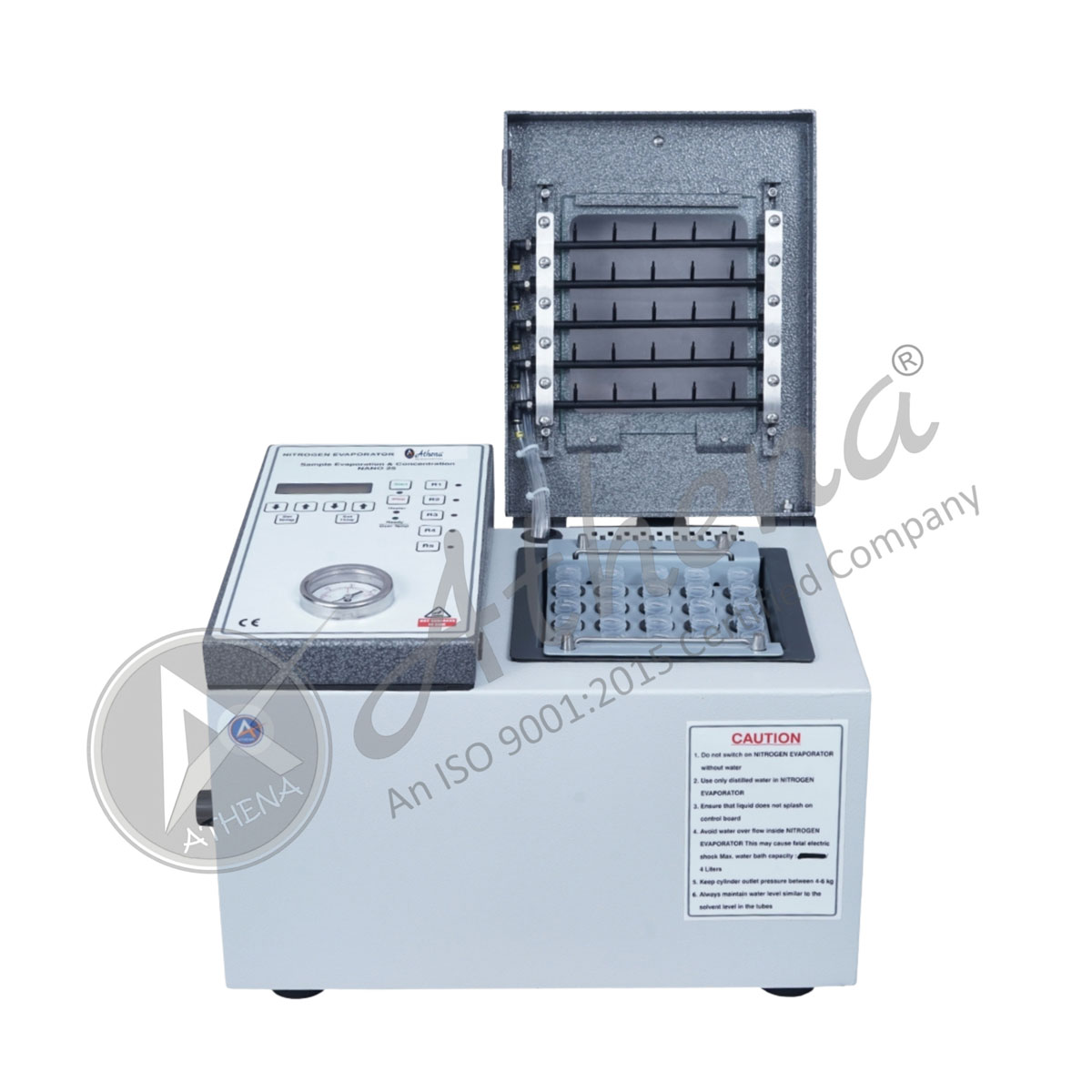

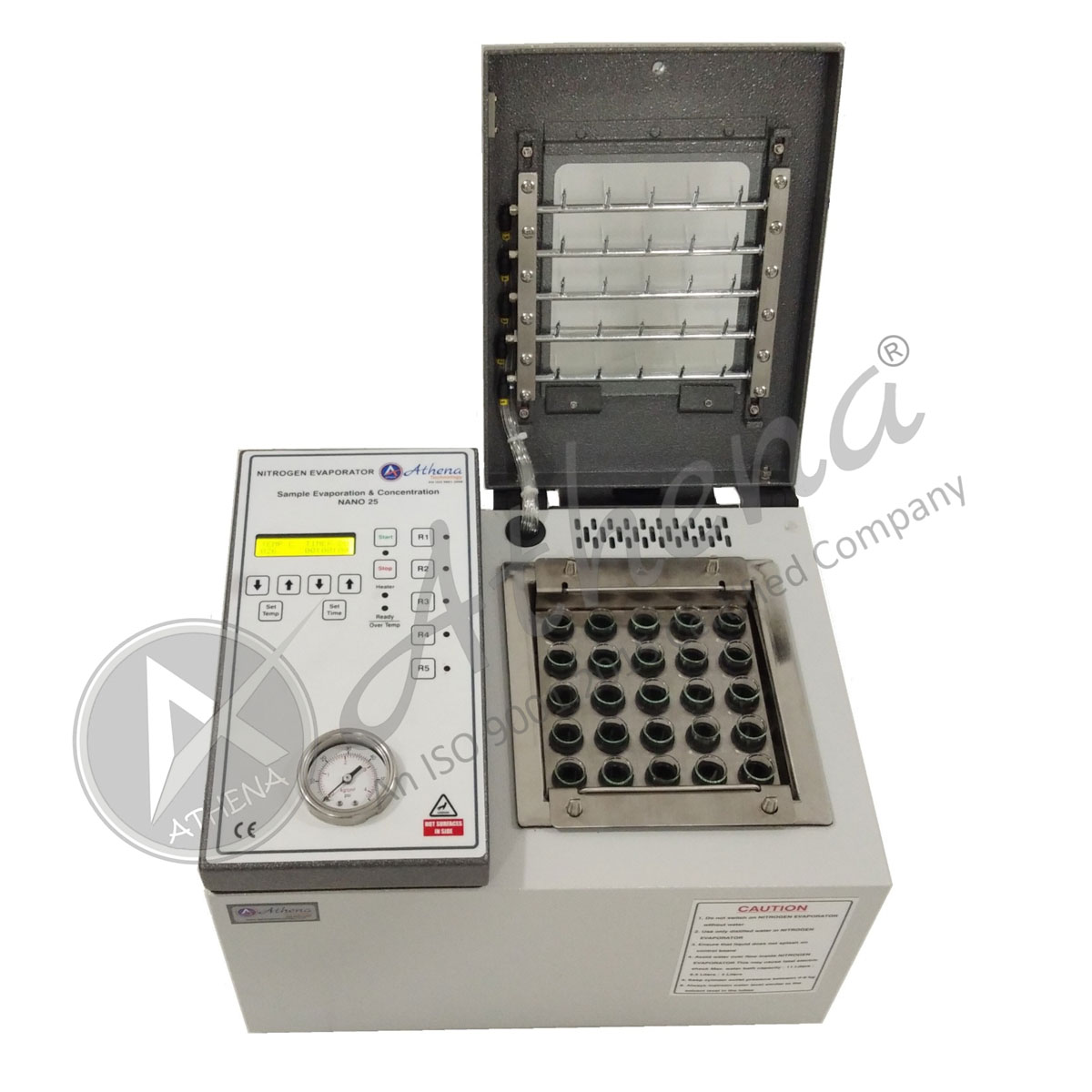

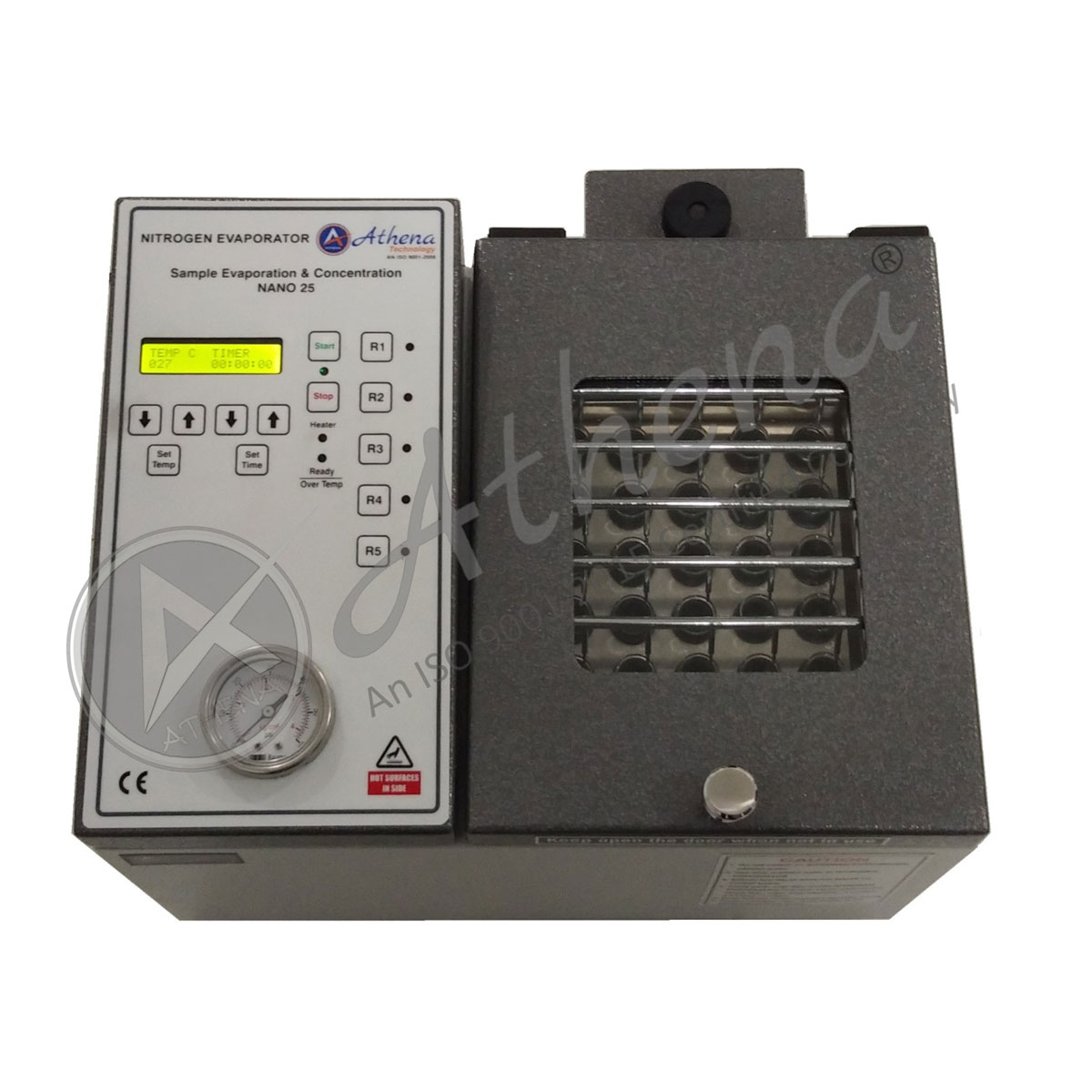

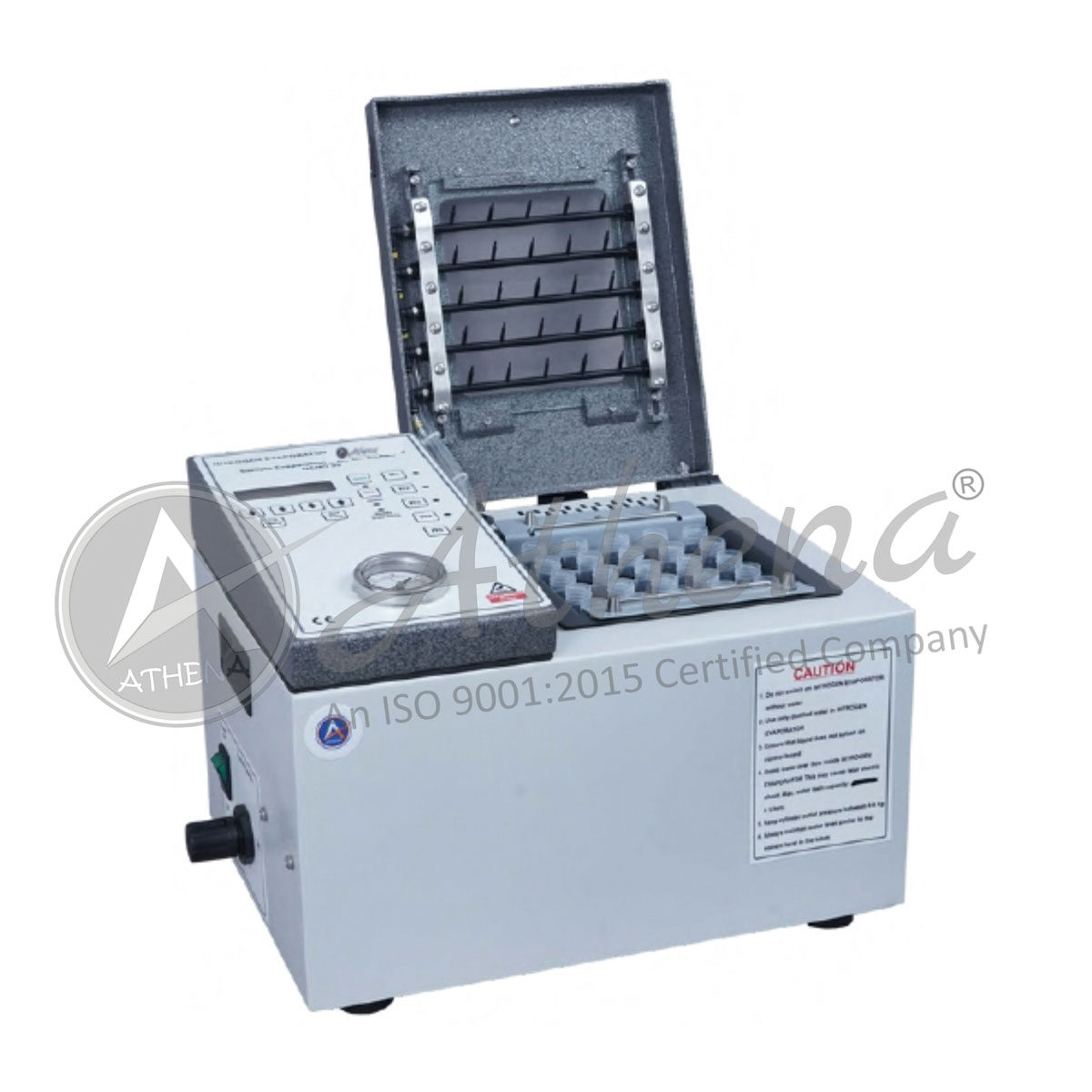

Nitrogen Evaporator – Nano Series
High-Precision, Vortex-Based Tabletop Evaporation System
Athena Instruments proudly presents the Nitrogen Evaporator – Nano Series, a compact and fully automated solution engineered for rapid, unattended, and uniform solvent evaporation. Purpose-built for high-performance sample preparation, the Nano Series integrates vortex motion technology with precision nitrogen flow to enable efficient concentration of volatile solvents across analytical, pharmaceutical, forensic, and environmental labs.
Designed to handle 15 or 25 samples simultaneously, the Nano-15 and Nano-25 models are optimized for labs requiring accurate and consistent evaporation with a space-saving footprint. Backed by CE certification and ISO 9001:2015 compliance, the Nano Series offers high-throughput results without compromising safety or reliability.
Key Features :
- Vortex-Assisted Evaporation: Microprocessor-controlled vortex motion increases surface area exposure, significantly reducing evaporation time.
- Compact Tabletop Design: Ergonomic build with minimal footprint allows easy placement and mobility within lab environments.
- Individual Gas Flow Control: Equipped with 5 ON/OFF nitrogen control switches for enhanced gas distribution and process customization.
- Corrosion-Resistant Build: SS316 stainless steel tank and manifold ensure chemical durability and long-term performance.
- Integrated Exhaust Ventilation: Built-in blower with 2-meter polyethylene hose safely vents solvent vapors from the work area.
- Smart Display Panel: LED indicators show real-time system status including heater activation, door open alerts, and operation stages.
- Fail-Safe Operation: Auto shut-off with temperature-sensor alarms and timer-based alerts ensure user and sample safety.
- Zero-Maintenance Design: Anti-bacterial and anti-fungal water bath eliminates the need for internal cleaning.
Applications
Environmental Monitoring
Ideal for concentrating solvents in water, soil, and air samples.
Marine & Fisheries Labs
EI-approved for solvent evaporation in fishery research and aquatic toxin analysis.
Pharmaceutical & Forensic Labs
SPE cleanup, toxicology, and drug residue processing under strict lab conditions.
Genomics & Proteomics
Efficient sample prep for DNA, RNA, and protein concentration workflows.
Field and Remote Labs
Compact yet powerful system suitable for mobile or limited-space environments.
Product Models & Specifications
| Model Name |
Sample Capacity |
Display Type |
Nitrogen Valves |
Timer Range |
Temp. Range |
Dimensions (cm) |
Weight |
|---|---|---|---|---|---|---|---|
| Nano-15 | 15 |
LED Display |
3 (Individual ON/OFF) | 15 sec to 10 hours | Ambient to 90°C | 30 x 40 x 35 | 15 kg |
| Nano-25 | 25 | LED Display | 3 (Individual ON/OFF) | 15 sec to 10 hours | Ambient to 90°C | 30 x 40 x 35 | 15 kg |
Additional Technical Highlights
Gas Regulator Range:
0–100 PSI for controlled nitrogen delivery
Power Supply:
230 V AC / 3A / 50 Hz
Error Alerts:
LED indicator with buzzer for immediate fault notification
Tube Compatibility:
Supports 12–20 mm OD tubes, up to 150 mm in length
Working Volume:
Suitable for 4 ml to 30 ml per sample
Solvent Recovery:
Built-in recovery system enabled by default
Why Choose Athena Instruments Nano Series Nitrogen Evaporators?
Trusted Performance, Certified Quality
The Nano-15 and Nano-25 models are CE certified, ISO 9001:2015 compliant, and EI approved, ensuring full compliance with international laboratory instrumentation standards. Built with high precision and tested for long-term reliability, the Nano Series delivers dependable results across every use case.
