SPE Positive Pressure Manifold
High-Performance Solid Phase Extraction System
Athena Instruments presents the SPE Positive Pressure Manifold, a robust, precision-engineered system designed for uniform, contamination-free solid-phase extraction (SPE) in regulated laboratory environments. Available in 48, 96, and 144-position configurations, this manifold ensures consistent flow control, reliable analyte recovery, and seamless integration with Athena’s Nitrogen Evaporators—streamlining the entire extraction-to-evaporation workflow.
Built with stainless steel cabinet fabricationand a solvent-resistant metal frame, the system offers dual-pressure control, quick-change cartridge support, and rugged durability for daily, high-volume use. Ideal for bioanalytical, pharmaceutical, food safety, forensic, clinical, and environmental testing laboratories, it is rigorously tested and certified to CE, ISO 9001:2015, and FDA standards.
Product Models & Specifications
|
Model |
Sample Capacity | Cartridge Compatibility | Tube Rack Compatibility | Pressure Range | Rack Lift Type | Dimensions |
|---|---|---|---|---|---|---|

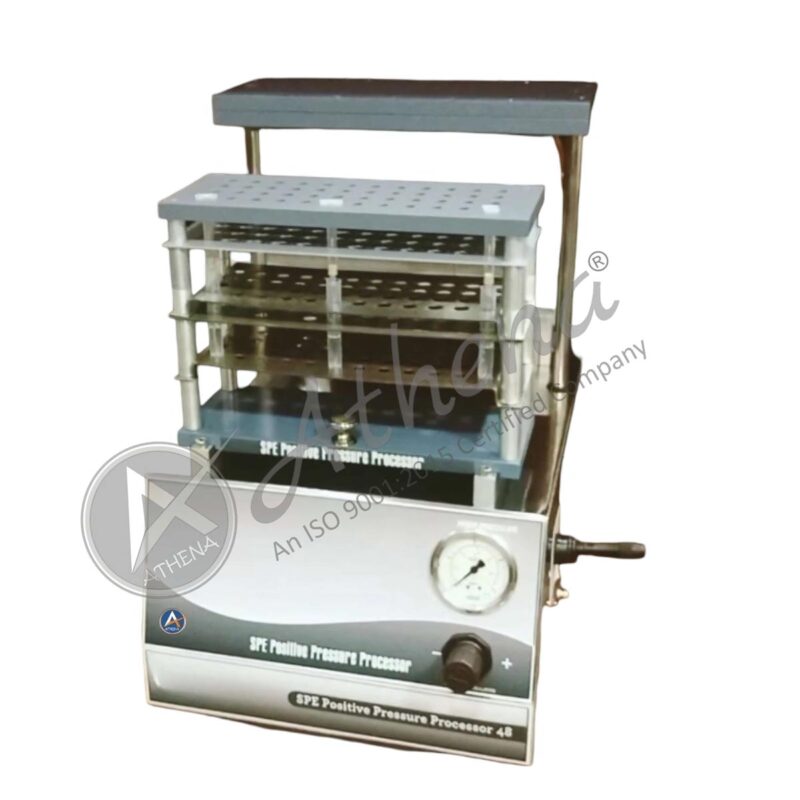

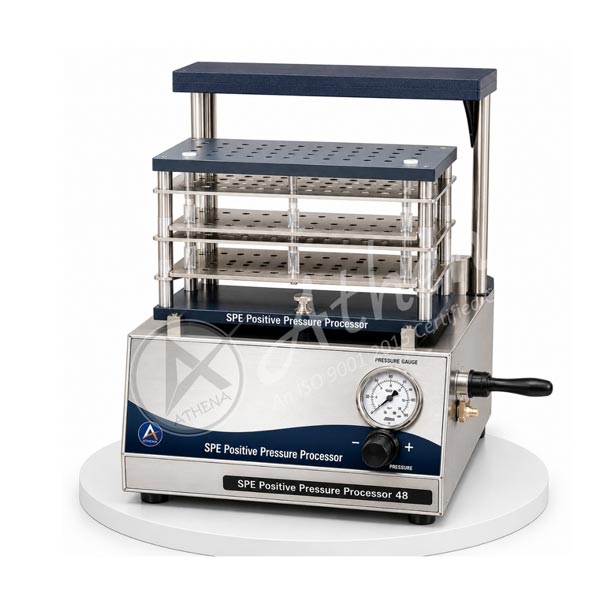

| SPE-48 | 48 | 1 ml / 3 ml / 6 ml | 12×75 mm, 13×100 mm, 16×100 mm | Up to 30 psi | Single-switch lift | Compact Tabletop |

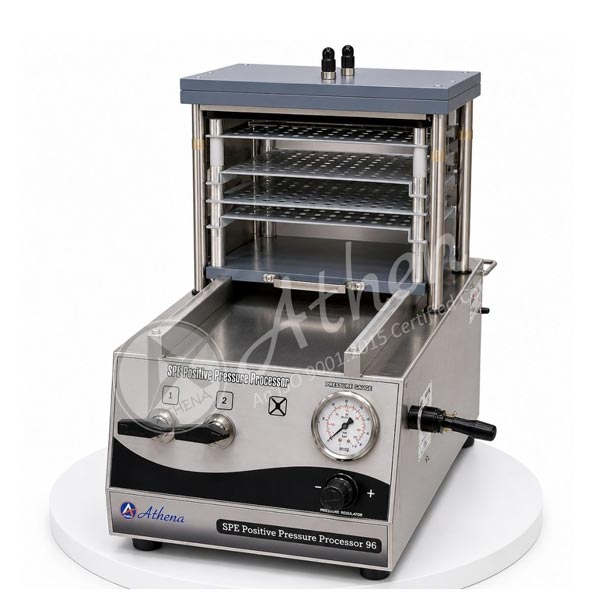

| SPE-96 | 96 | 1 ml / 3 ml / 6 ml | 12×75 mm, 13×100 mm, 16×100 mm | Up to 30 psi | Single-switch lift |
Medium Tabletop |

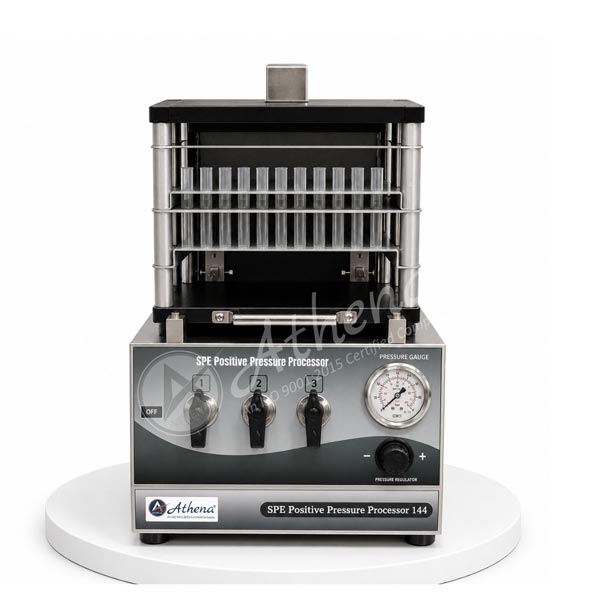

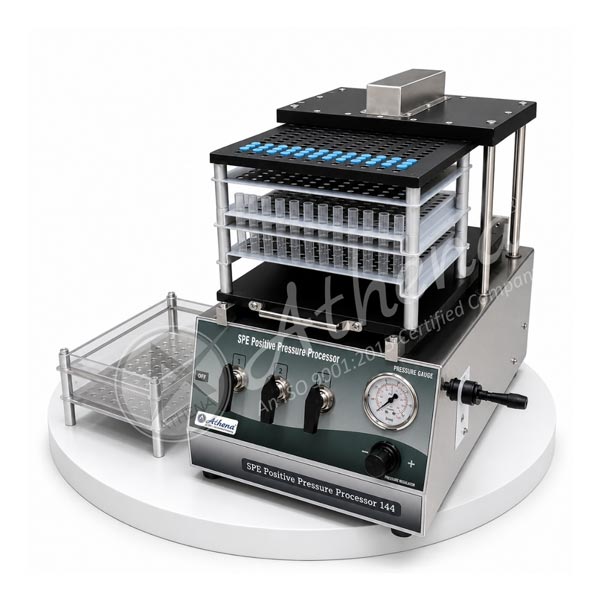

| SPE-144 | 144 | 1 ml / 3 ml / 6 ml | 12×75 mm (Direct fit with AT-144 Evaporator) | Up to 30 psi | Single-switch lift | Floor-Mounted Model |
- Note:Custom cartridge formats and larger-capacity models available on request.
Key Features
Dual Pressure Control
Independent regulation of gas pressure for extraction and drying phases improves analyte recovery and consistency.
Interchangeable Cartridge Support
Compatible with 1 ml, 3 ml, and 6 ml SPE cartridges with quick-change adapter plates.
Test Tube Compatibility
Accepts 12×75 mm, 13×100 mm, and 16×100 mm collection tubes.
Viscous Sample Performance
Adjustable pressure (up to 30 psi) maintains smooth flow even with plasma, serum, and other complex matrices.
Secure Rack Lift System
One-touch mechanism delivers airtight sealing for uniform pressure across all samples.
Integrated Waste Management
Solvent-resistant reservoir with stopcock and dual-bin drainage ensures safe, controlled disposal.
Seamless Evaporator Integration
All rack configurations fully compatible with Athena’s Nitrogen Evaporators for efficient, contamination-free sample transfer.
Applications
Bioanalytical Laboratories
SPE of plasma, serum, and biological fluids for LC-MS/MS and HPLC workflows.
Pharmaceutical R&D and CROs
Sample preparation for drug discovery, metabolite analysis, and stability testing.
Food Safety and Environmental Labs
Extraction and cleanup for pesticide, contaminant, and residue analysis.
Forensics and Toxicology
Precise analyte extraction for forensic investigations and toxicological testing.
Clinical Research
Scalable SPE workflows for diagnostics and clinical trial support.
Additional Technical Highlights
Construction
Heavy-duty stainless steel fabrication with solvent-resistant metal body for long-term durability
Pressure Gauges
Dual independent gauges for real-time monitoring of extraction and drying pressures
Drying Mode
Compatible with nitrogen or air at 25 psi for uniform, controlled drying
Manual Adjustment
Precision knob for fine-tuned pressure control
Tool-Free Cartridge Switching
Quick-change design supports easy adaptation between cartridge sizes
Waste System
Dual-bin waste rack with adjustable drainage for solvent handling
Why Choose Athena’s SPE Positive Pressure Manifold?
Trusted Performance, Certified Quality
Athena’s SPE Positive Pressure Manifold is manufactured under stringent quality control protocols to deliver consistent, reproducible results in regulated laboratories. Certified to CE, FDA, GMP, and ISO 9001:2015 standards, it offers dependable performance and full compliance for today’s demanding extraction workflows.
