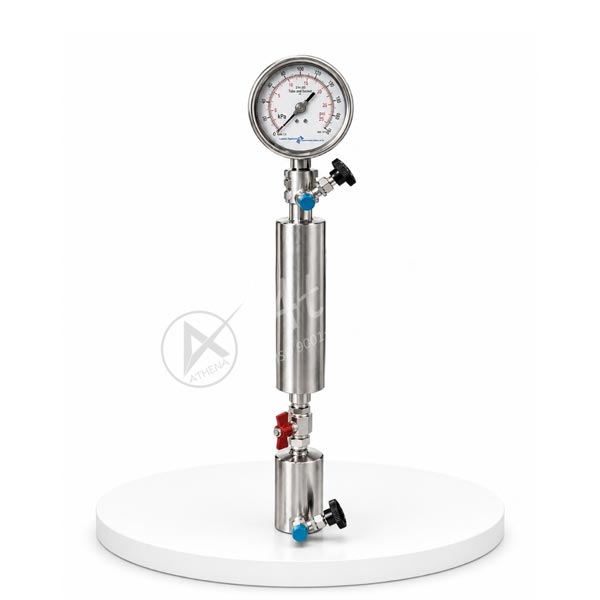

Oil & Gas Sampling Bottle

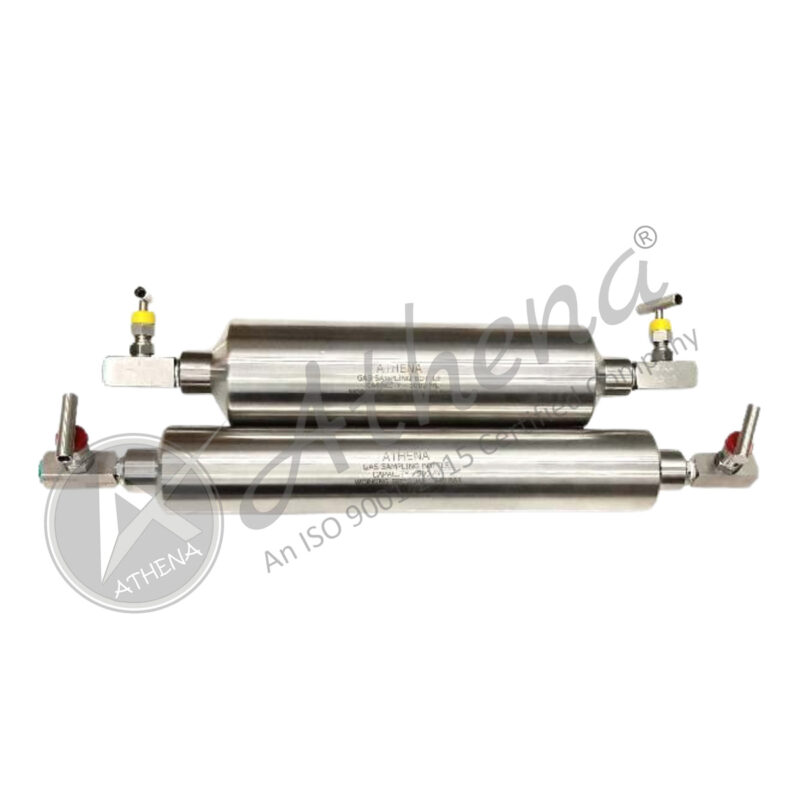

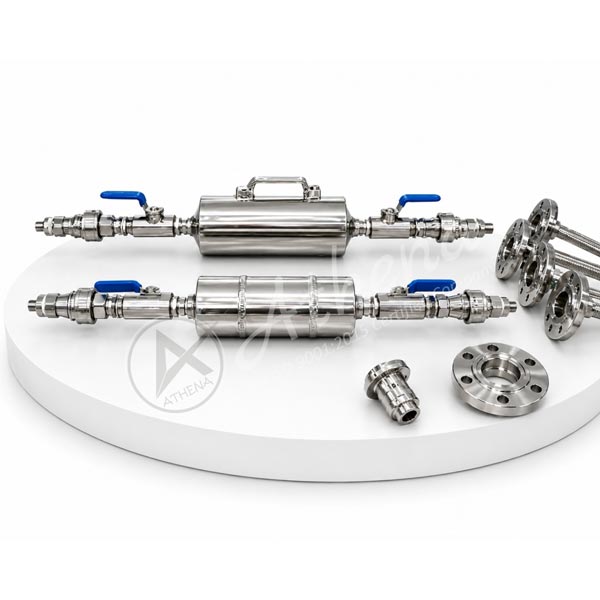

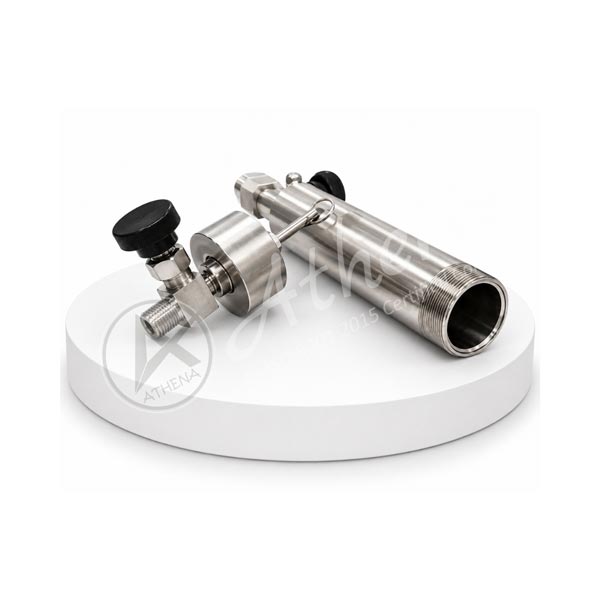

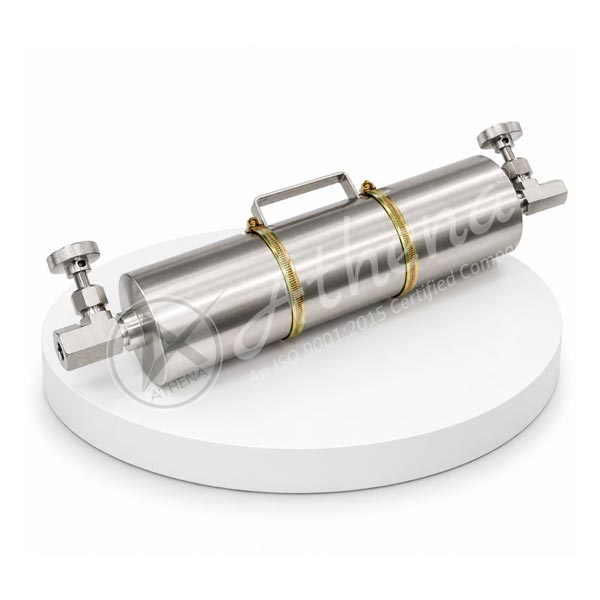

High-Pressure Stainless Steel Sample Cylinder
Athena Instruments introduces the Oil & Gas Sampling Bottle, a robust and precision-engineered stainless steel sample cylinder specifically designed for the safe collection, storage, and transport of high-pressure gas and liquid samples. Crafted using SS316 stainless steeland built as per ASTM 1265 and ASME Section VIII, our sampling bottles ensure exceptional durability, corrosion resistance, and leak-proof performance across industries including oil & gas, petrochemicals, environmental testing, and research laboratories.
Available in multiple sizes and pressure ratings, these bottles are extensively tested with hydrostatic pressure up to 300 bar and are certified to meet global compliance standards, including CE, ISO 9001:2015, and FDA.
Product Models & Specifications
| Model | Volume | Wall Thickness | Thread Type | Pressure Rating | Dimensions (mm) |
|---|---|---|---|---|---|
| ATSB 10 | 100 ml | 5 mm | ¼” F | 150 – 250 bars | 180 x 50 mm |
| ATSB 10 | 250 ml | 5 mm | ¼” F | 150 – 250 bars | 220 x 50 mm |
| ATSB 25 | 300 ml | 5 mm | ¼” F | 150 – 250 bars | 270 x 60 mm |
| ATSB 50 | 500 ml | 5 mm | ¼” F | 150 – 250 bars | 410 x 60 mm |
| ATSB 100 | 1000 ml | 5 mm | ¼” F | 100 – 250 bars | 520 x 60 mm |
| ATSB 200 | 2000 ml | 5 mm | ¼” F | 100 – 250 bars | 620 x 60 mm |
Note: Custom volumes, exotic materials (e.g., Hastelloy), and dual-phase compatibility available on request.
Key Features
High-Grade Construction
Fabricated from seamless SS316 stainless steel with Welding conical ends and optional PTFE internal coating for enhanced chemical compatibility.
High Pressure Rated
Hydrotested up to 300 bar; standard working pressure range of 100–200 bar.
Wide Temperature Range
Operates between -40°C to 200°C; with PTFE coating, withstands -10°C to 260°C.
Gas-Tight Integrity
Equipped with precision SS316 needle valves and optional rupture disc units to prevent over-pressurization and sample loss.
Certifications
CE certified, ISO 9001:2015 compliant, FDA approved, BIS certified, ISO 80079-36:2016 compliant, and more.
Flexible Connectivity
Standard 1/4” NPT female thread on both ends with optional SS braided pigtails for convenient system integration.
Applications
Oil & Gas Sampling
Reliable for upstream/downstream crude oil, natural gas, and LPG sample collection.
Refinery and Petrochemical Testing
Ideal for collecting pressurized samples for lab analysis and QA/QC procedures.
Transformer Oil Analysis
Gas-tight construction supports DGA (Dissolved Gas Analysis) for electrical transformers.
Environmental & Industrial Monitoring
For the collection of volatile liquids and gases in remote or hazardous locations.
Chromatography & Forensic Use
Suitable for hydrocarbon gas sampling in GC or forensic trace analysis.
Additional Technical Highlights
Material of Construction
High-grade SS316 / SS316L with optional Hastelloy or PTFE lining for enhanced corrosion resistance
Pressure Rating
Up to 3000 psi (customizable based on application)
Volume Range
Available in standard volumes from 50 ml to 1000 ml; custom sizes available on request
Connection Types
Compatible with NPT, BSP, Swagelok, and other standard fittings
Sealing Mechanism
Leak-proof design with double O-ring or metal-to-metal seals
Sampling Modes
Supports liquid, gas, and multiphase sampling under pressurized conditions
Compliance
Conforms to API, ASTM, and ISO standards relevant to oil and gas sampling procedures
Why Choose Athena’s Oil & Gas Sampling Bottles?
Trusted Performance, Certified Quality
Athena’s Sampling Bottles are CE certified, ISO 9001:2015 compliant, and manufactured under stringent in-house protocols—delivering field-ready reliability with international safety and quality assurance.
