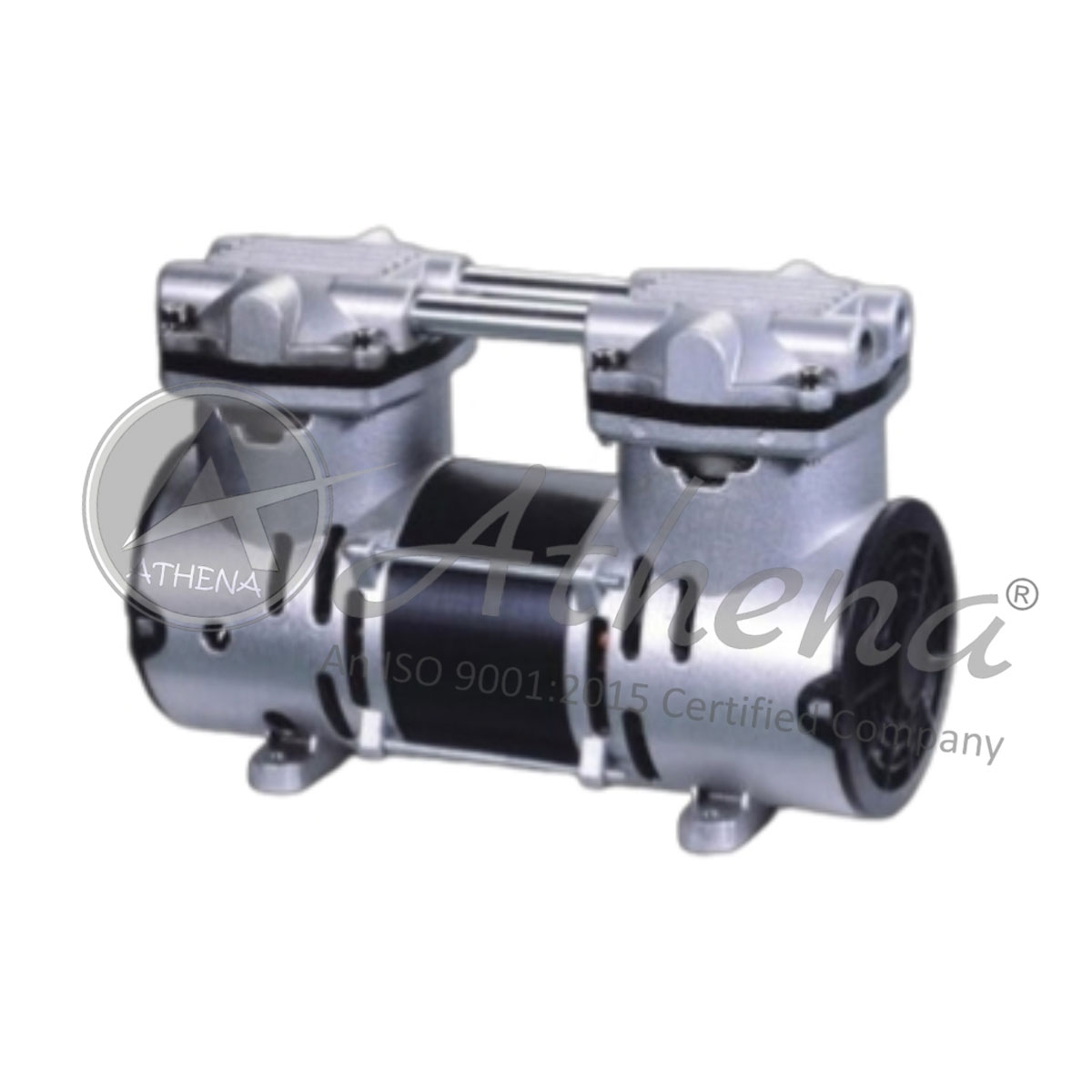

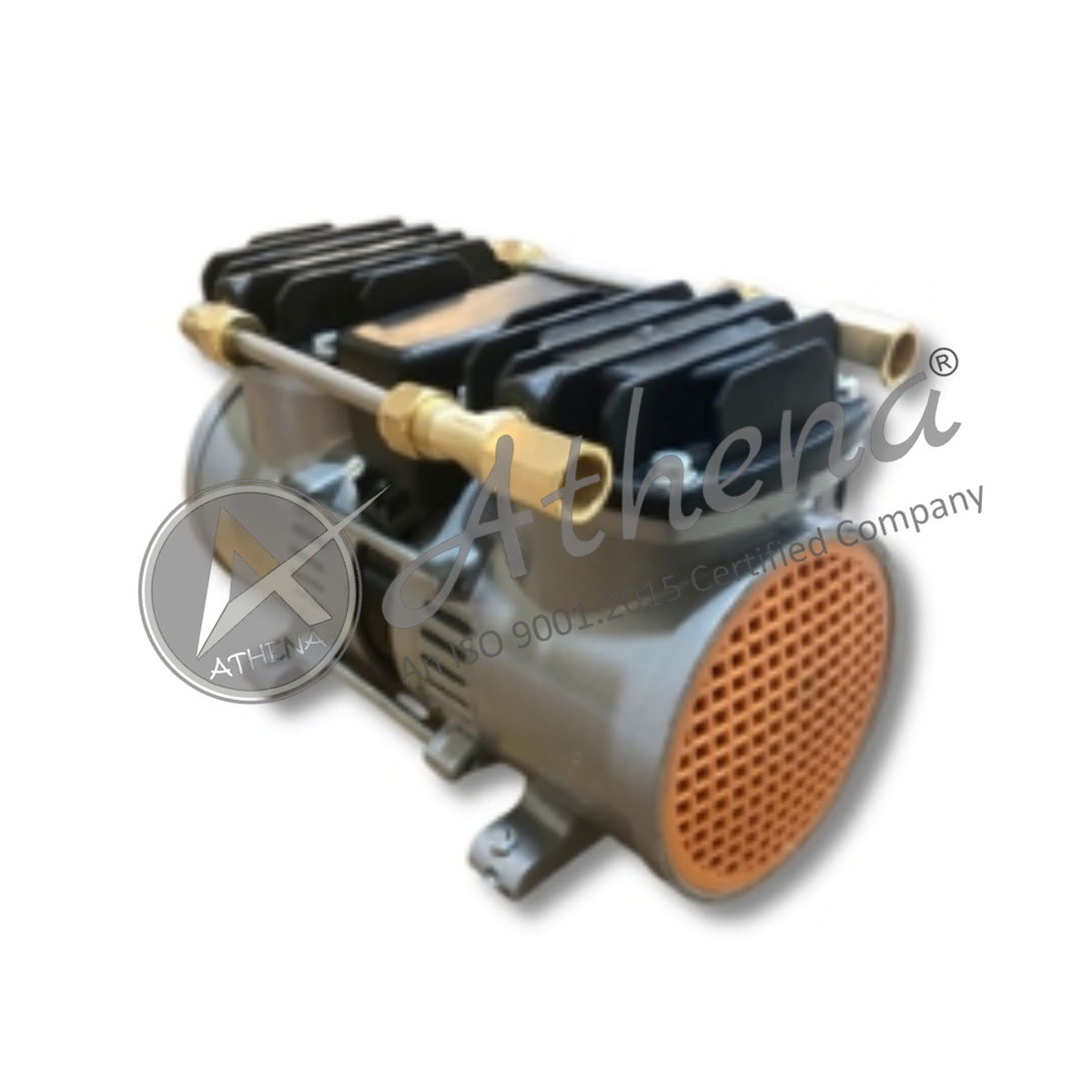

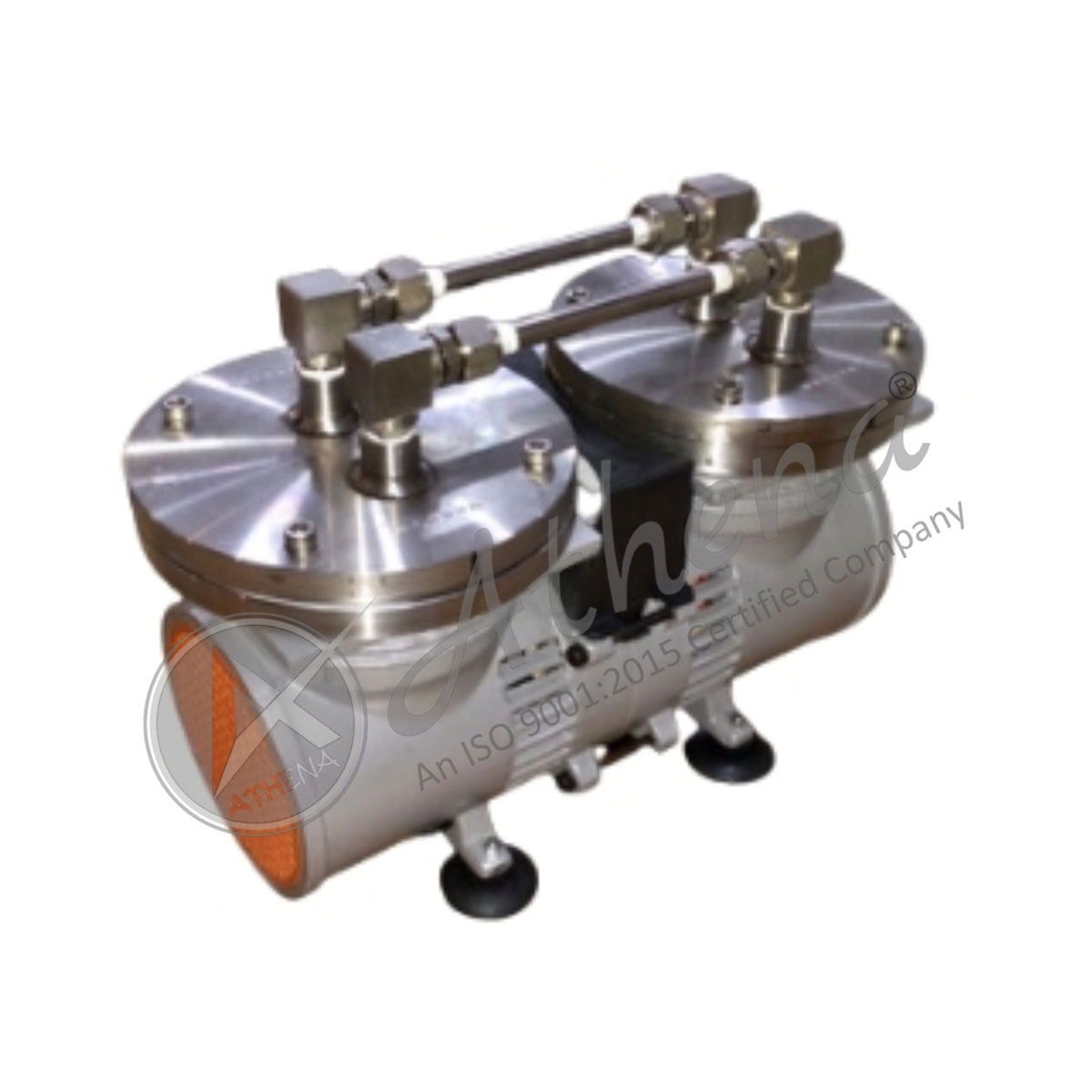

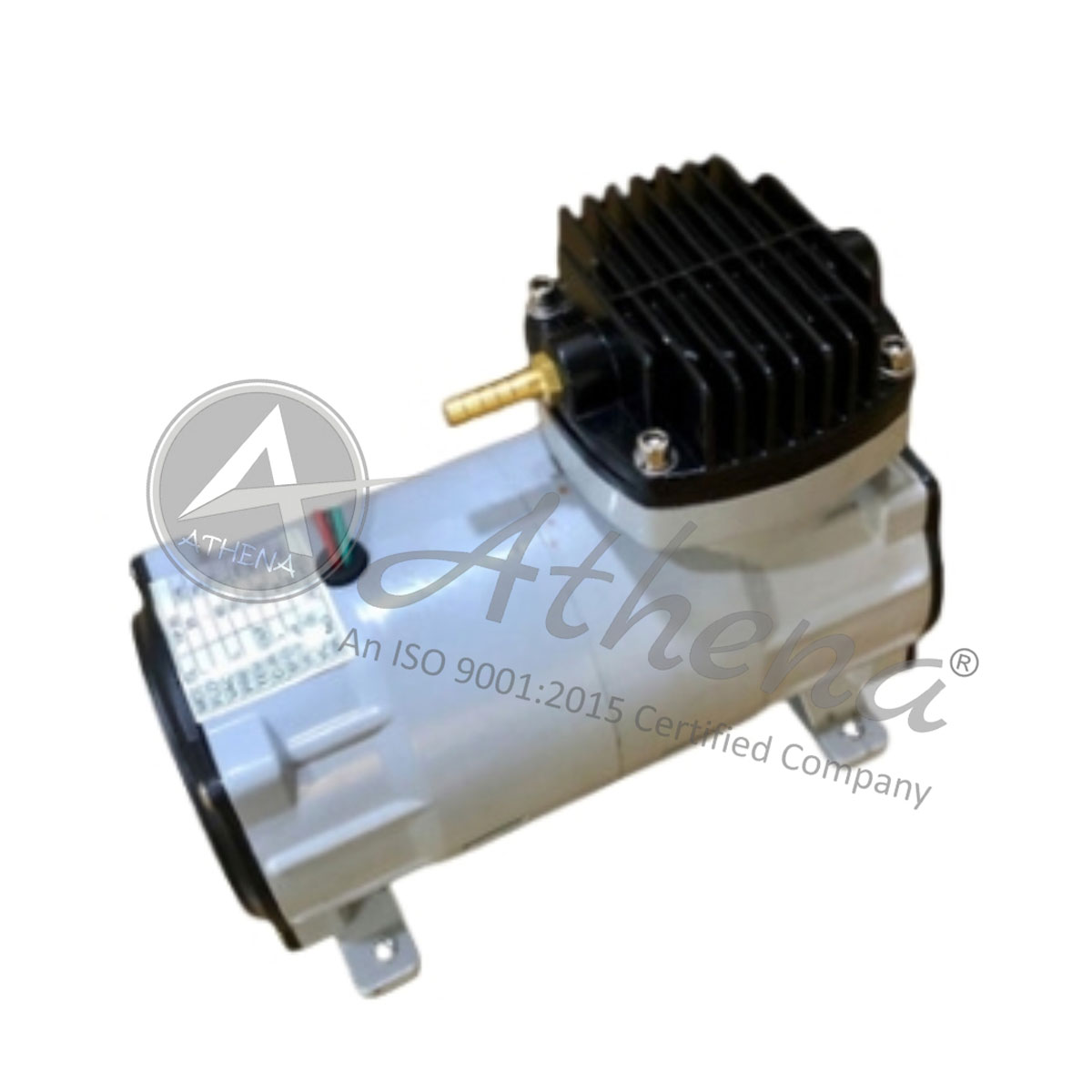

Oil-Free Diaphragm Vacuum Pumps
Compact. Contaminant-Free. Globally Compliant.

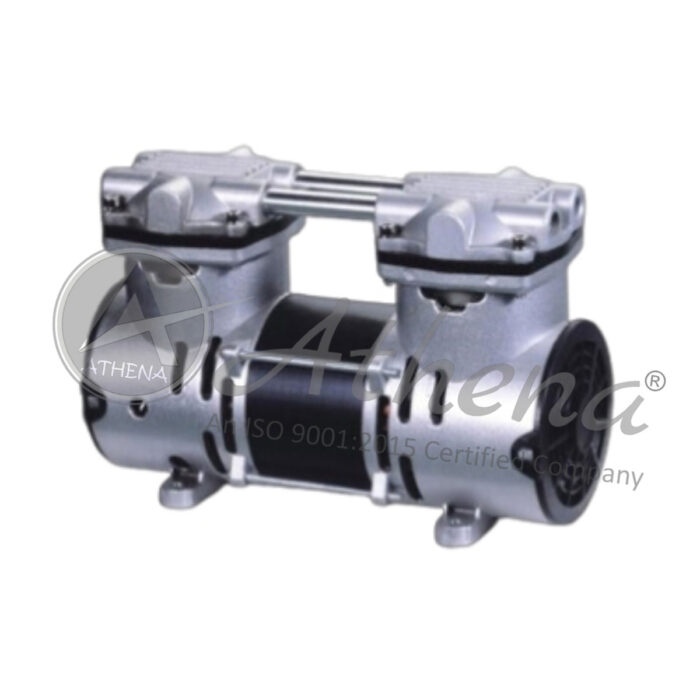

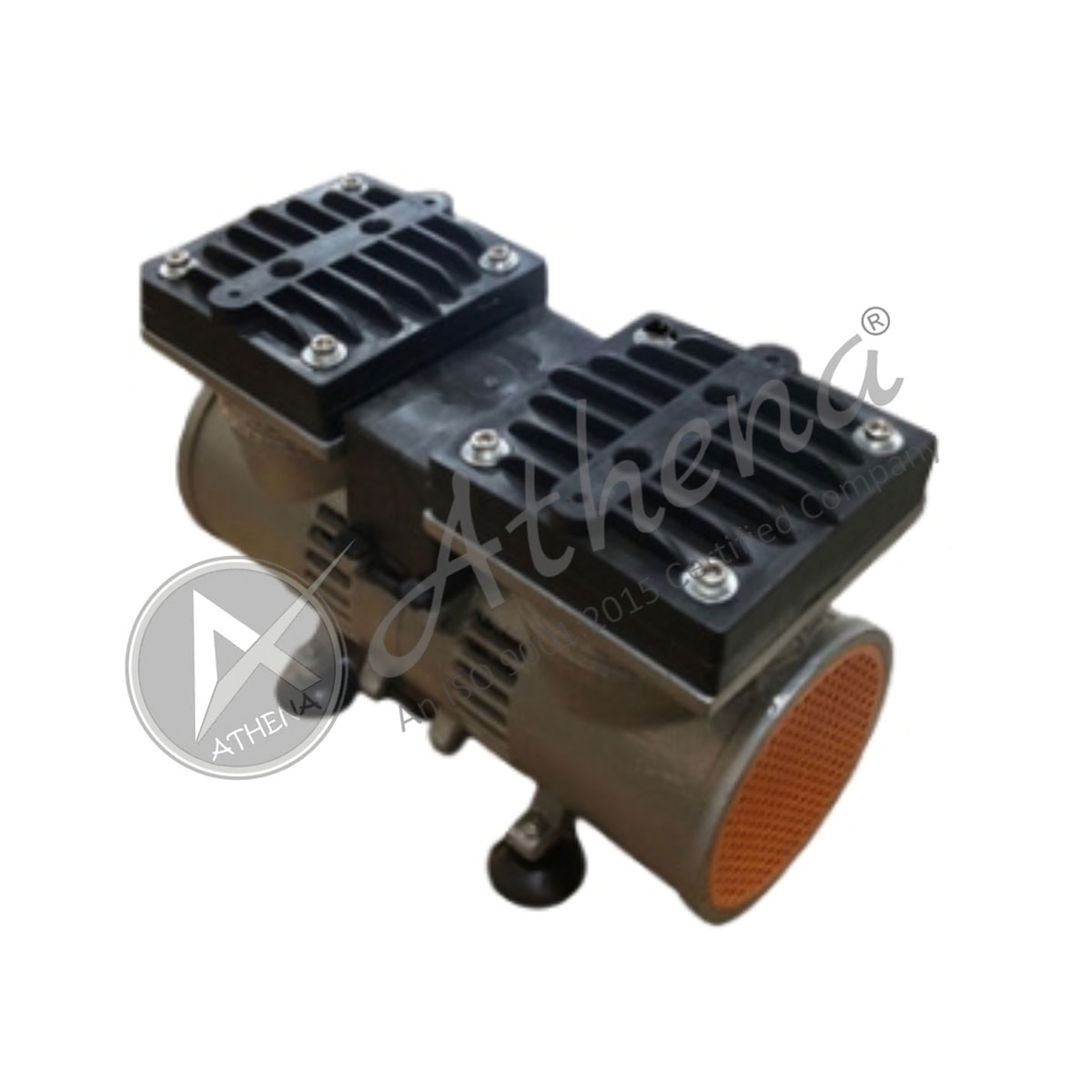

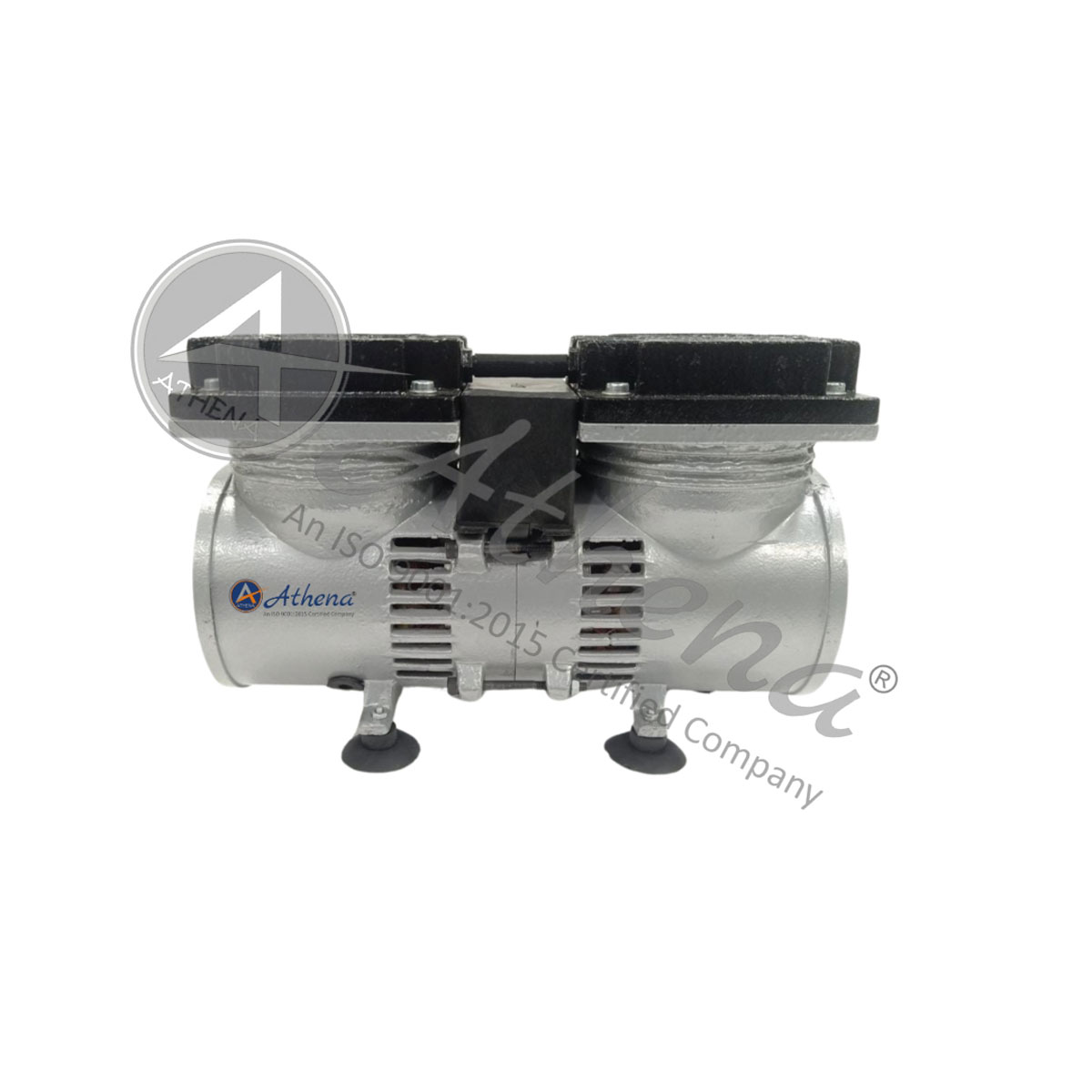

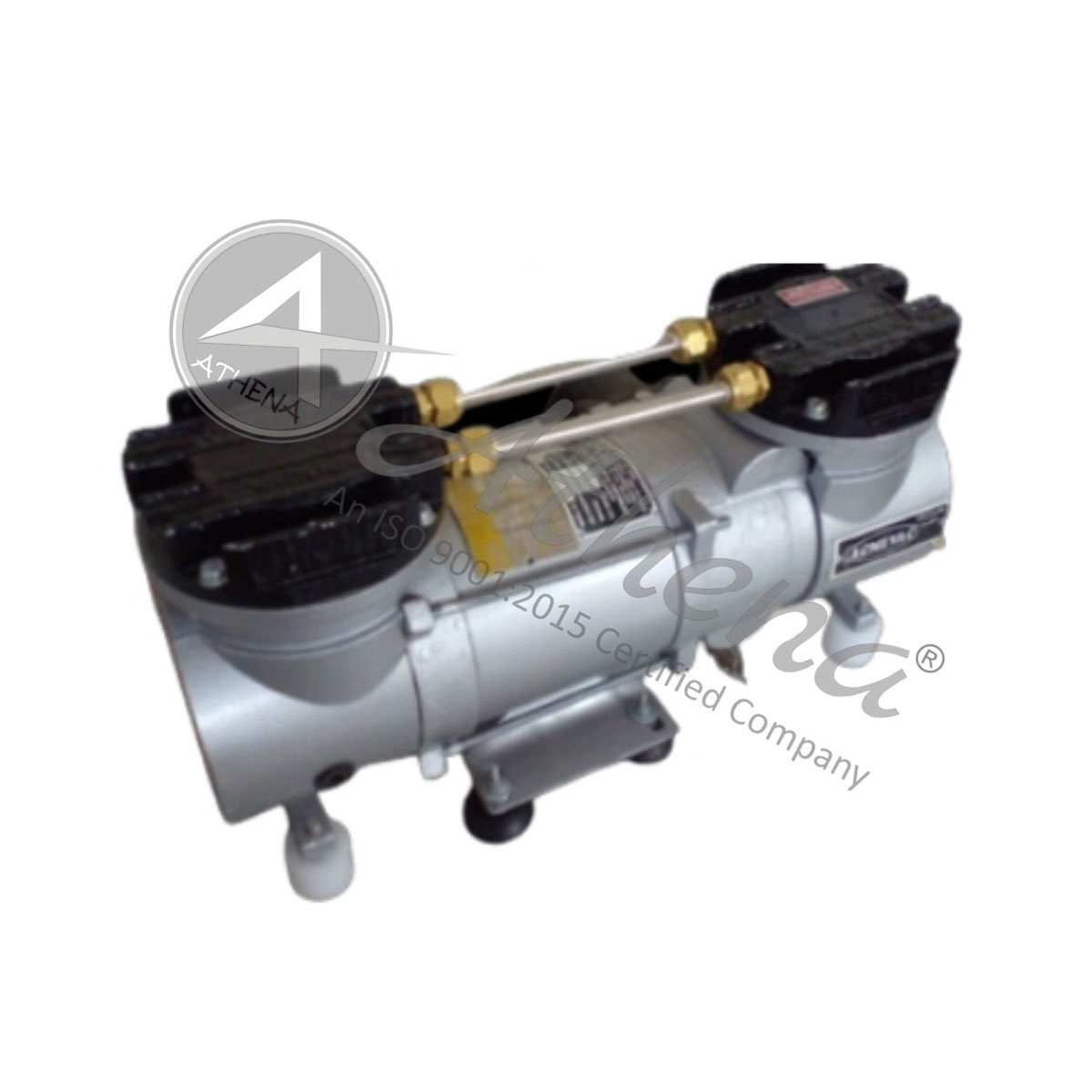

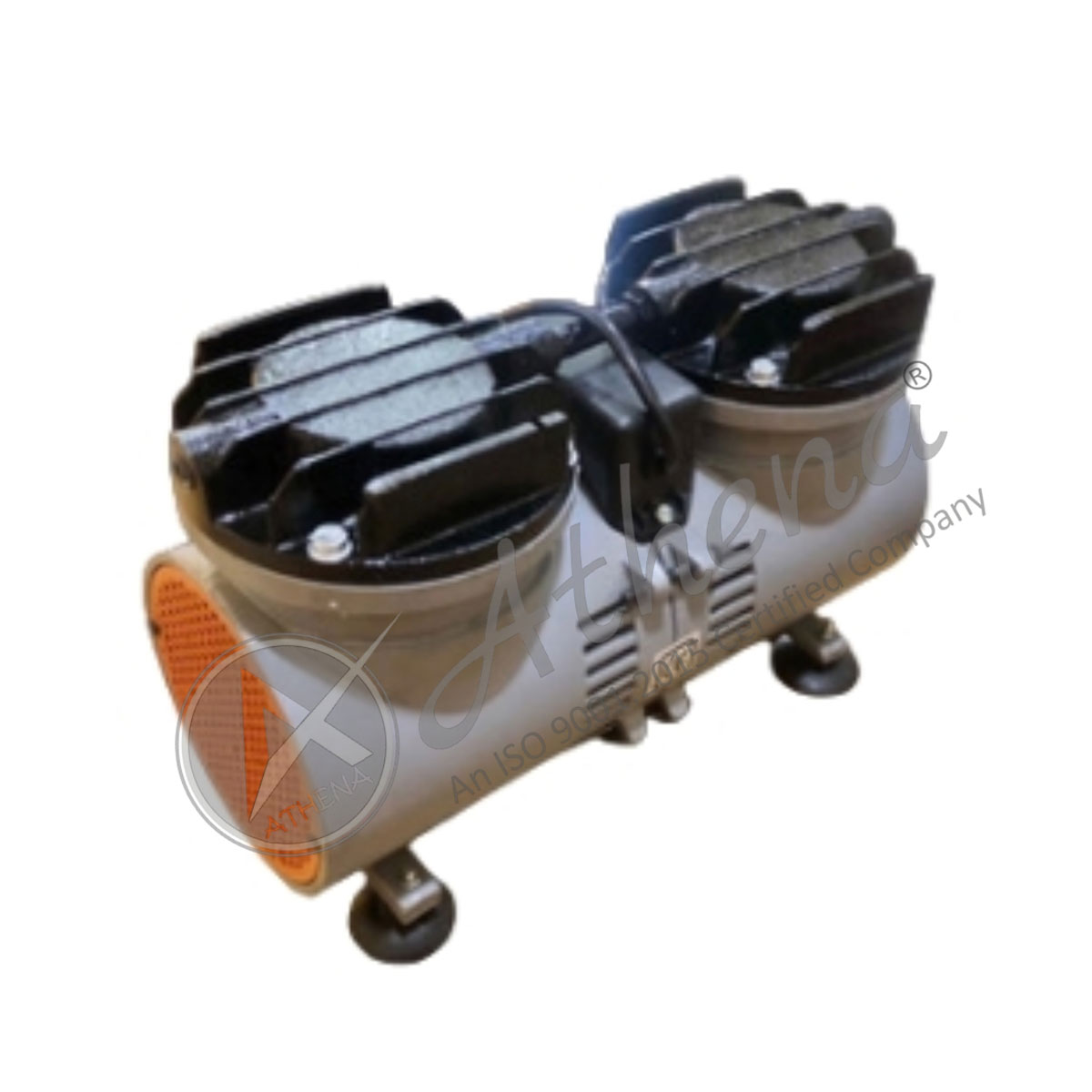

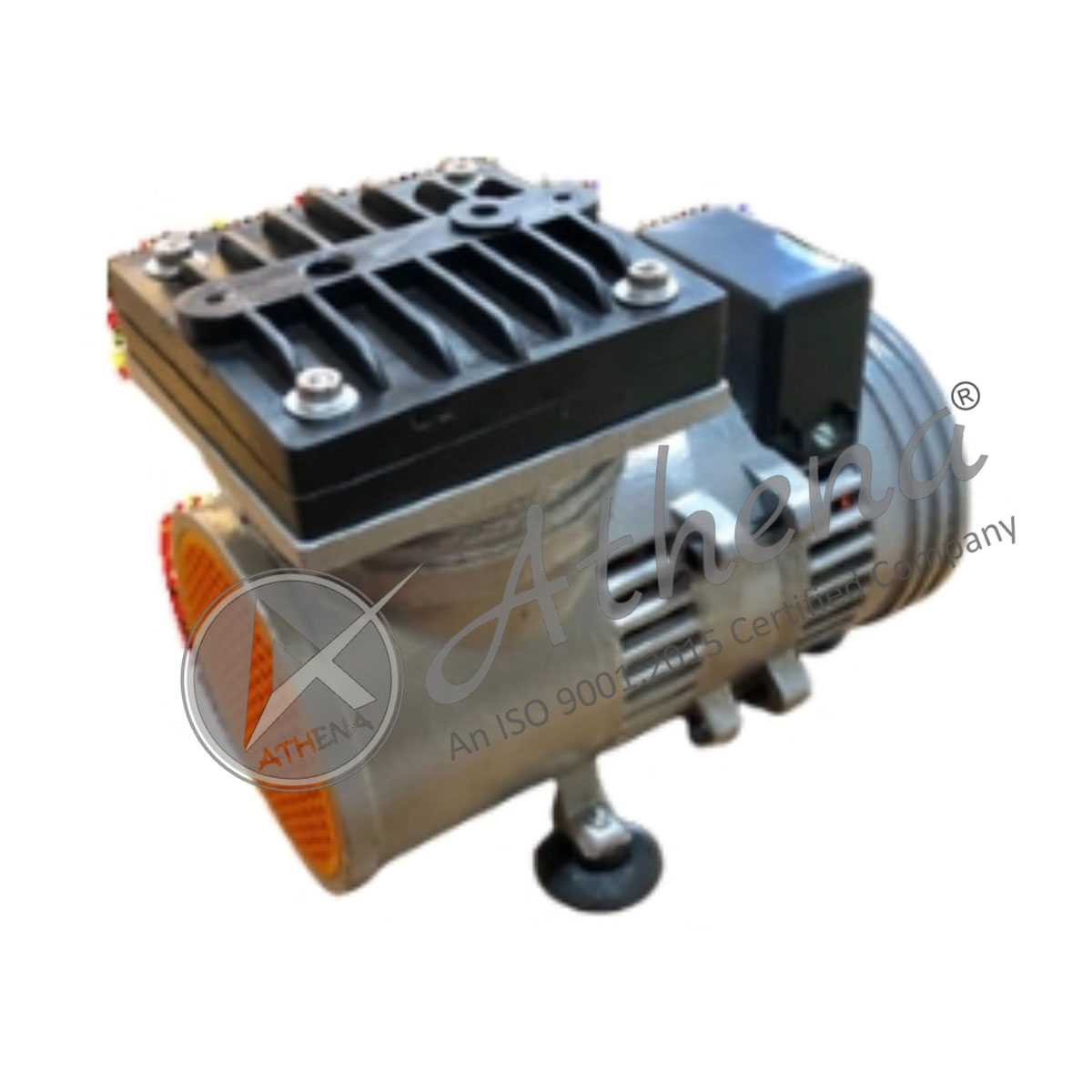

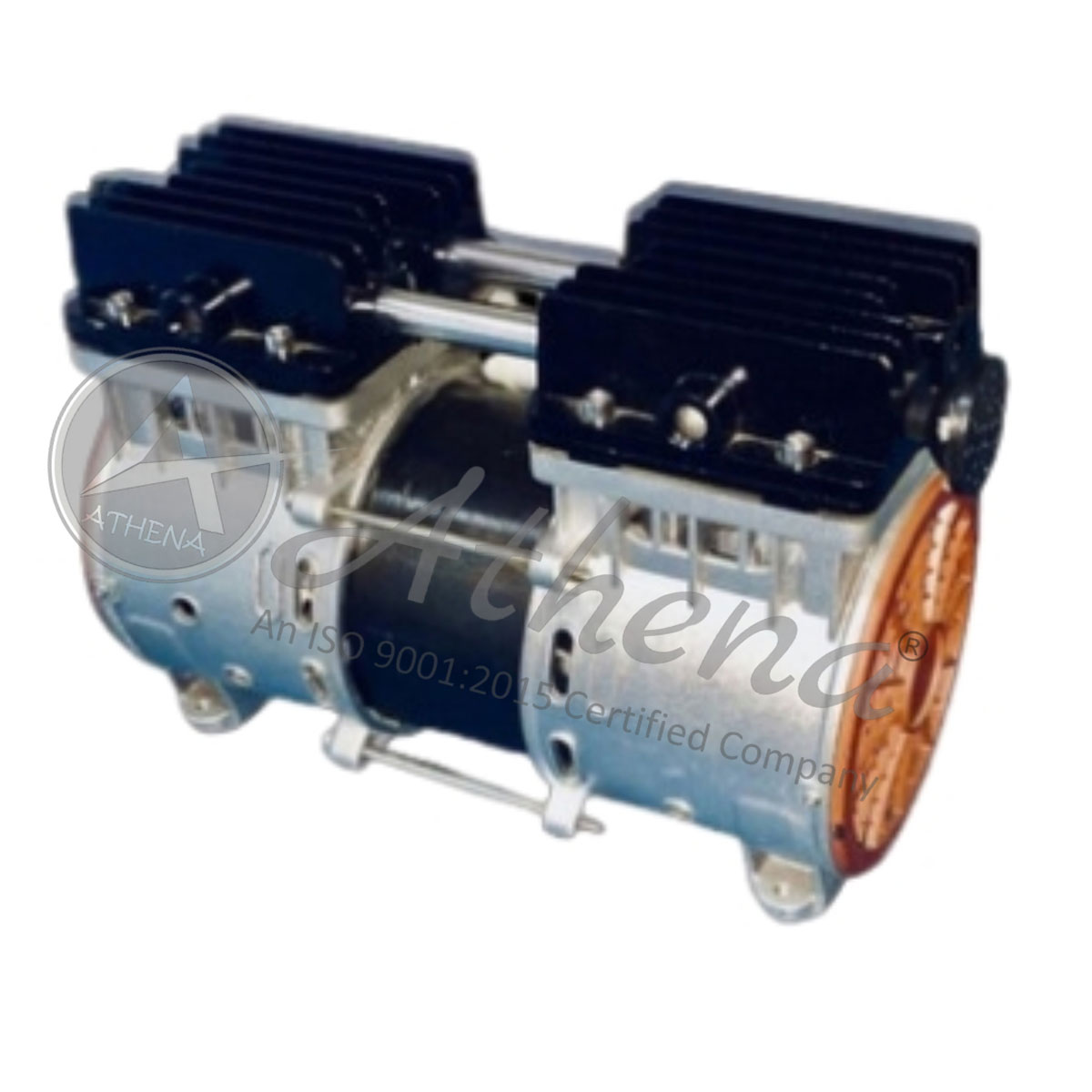

Athena Instruments introduces the ATV Series Oil-Free Diaphragm Vacuum Pumps, designed for clean, silent, and maintenance-free vacuum generation across laboratory, medical, analytical, and industrial systems. These microprocessor-optimized pumps provide consistent vacuum and pressure without oil or lubrication—ensuring zero contamination in sensitive environments.
Ideal for high-precision applications, the ATV Series supports a wide range of operational demands from pharmaceutical R&D and diagnostics to OEM equipment and industrial workflows. With customizable configurations and compact modular designs, these pumps are perfect for space-conscious labs and portable equipment integration.
Key Features :
- 100% Oil-Free & Lubrication-Free: Delivers a contaminant-free vacuum suitable for critical medical and analytical processes.
- Silent, Low-Vibration Operation: Operates with minimal sound and vibration—ideal for hospitals, cleanrooms, and research centers.
- Compact & Modular Build: Smallest footprint in its class for seamless OEM integration and easy system installation.
- Durable Diaphragm Mechanism: Equipped with high-strength diaphragms and SS316 or TEFLON-lined contact parts for extended chemical compatibility.
- Multiple Configuration Options:
- SS – Stainless Steel Contact Parts
- CRP – Chemically Resistant Parts
- FM – Flameproof Motor
- DC – DC Motor (12V / 24V / 48V)
- RD – Reduced Dimension Design
Applications
Laboratory & Industrial
- Pharmaceutical and chemical R&D
- Atomic absorption and flame photometry
- Precious metal refining and diamond processing
Medical & Healthcare
- Ventilators, suction machines, and oxygen concentrators
- Dental and diagnostic equipment
- Nebulizers and NICU devices
OEM & Engineering Systems
- Analytical instrumentation and air sampling
- Spray painting, airbrushing, and degassing
- Automation and material handling systems
Product Model and Specifications
|
Model Name |
Max. Flow (LPM) |
Max. Vacuum (Inches Hg) |
Max. Pressure (PSI) |
Motor HP |
Weight (Kg) |
|---|---|---|---|---|---|
| ATV-15 | 15LPM | 22" Hg (554 mm) |
25 |
1/20 |
2.7 |
| ATV-25-S | 15LPM | 27" Hg (680 mm) | 35 | 1/16 | 4.1 |
| ATV-25-P | 25LPM | 22" Hg (554 mm) | 25 | 1/16 | 4.2 |
| ATV-45 | 45LPM | 22" Hg (554 mm) | 35 | 1/8 | 6.2 |
| ATV-75-S | 45LPM | 27" Hg (680 mm) | 55 | 1/4 | 9.0 |
| ATV-75-P | 75LPM | 22" Hg (554 mm) | 40 | 1/4 | 9.0 |
| ATV-45-CRP | 28LPM | 22" Hg (554 mm) | 10 | 1/8 | 5.8 |
| ATV-75-CRP | 38LPM | 22" Hg (554 mm) | 10 | 1/4 | 8.7 |
| ATV-15-DC-1500 | 15LPM | 22" Hg (554 mm) | 25 | 1/20 | 3.5 |
| ATV-45-FM | 35LPM | 22" Hg (554 mm) | 20 | 1/4 FPM | 18 |
| ATV-75-FM | 45LPM | 27" Hg (680 mm) | 35 |
1/4 |
9.0 |
| ATV-550-ZW | 110LPM | 27" Hg (680 mm) | 100 | 3/4 | 9.0 |
| ATV-550-ZW-S | 68LPM | 29.5 Hg (745mm) | 40 | 3/4 | 9.0 |
Note: Custom cartridge formats and larger-capacity models available on request.
Accessories & Spare Kits
- Moisture Trap
- Glycerin / Digital Vacuum Gauge

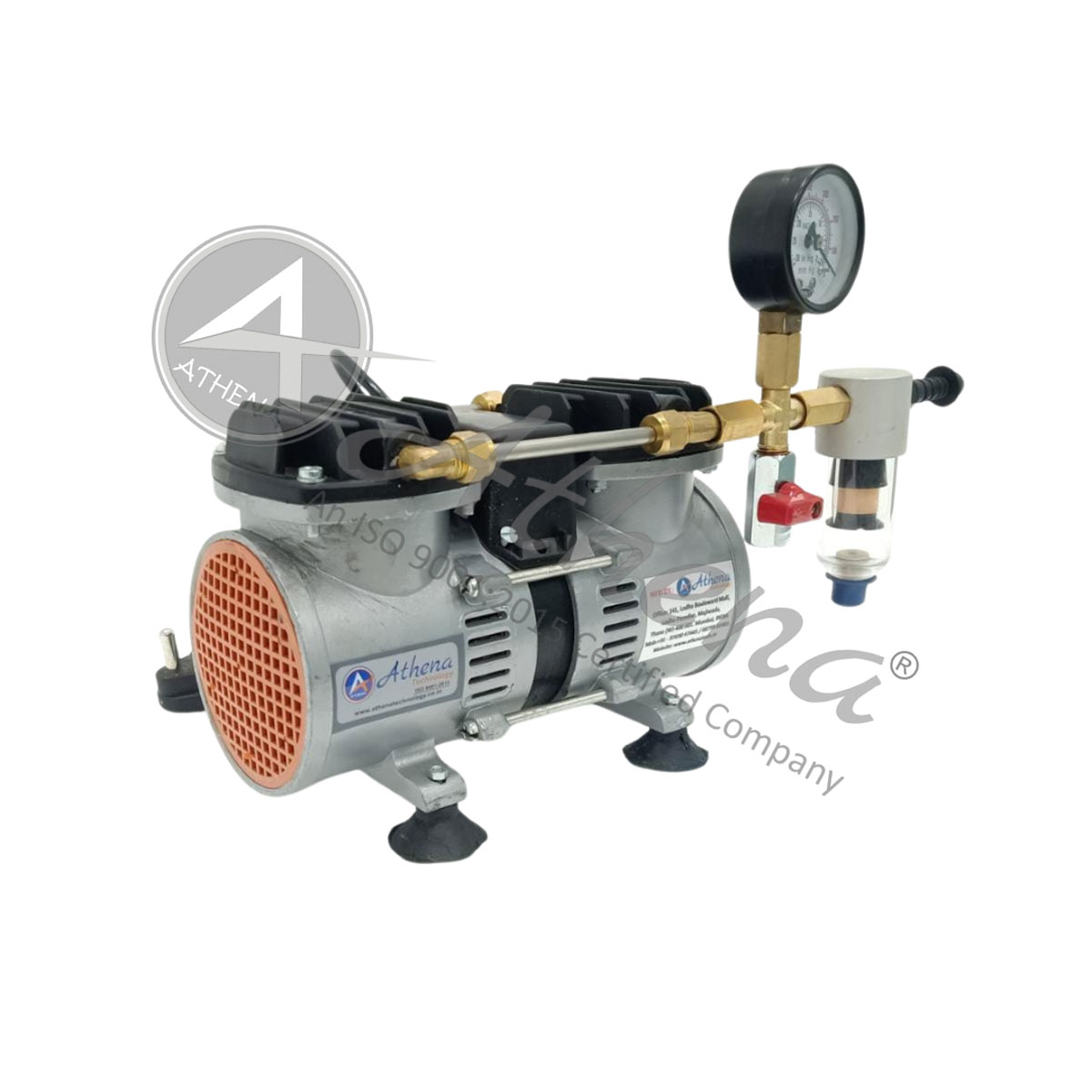

- Vacuum Gauge Regulator (VGR)

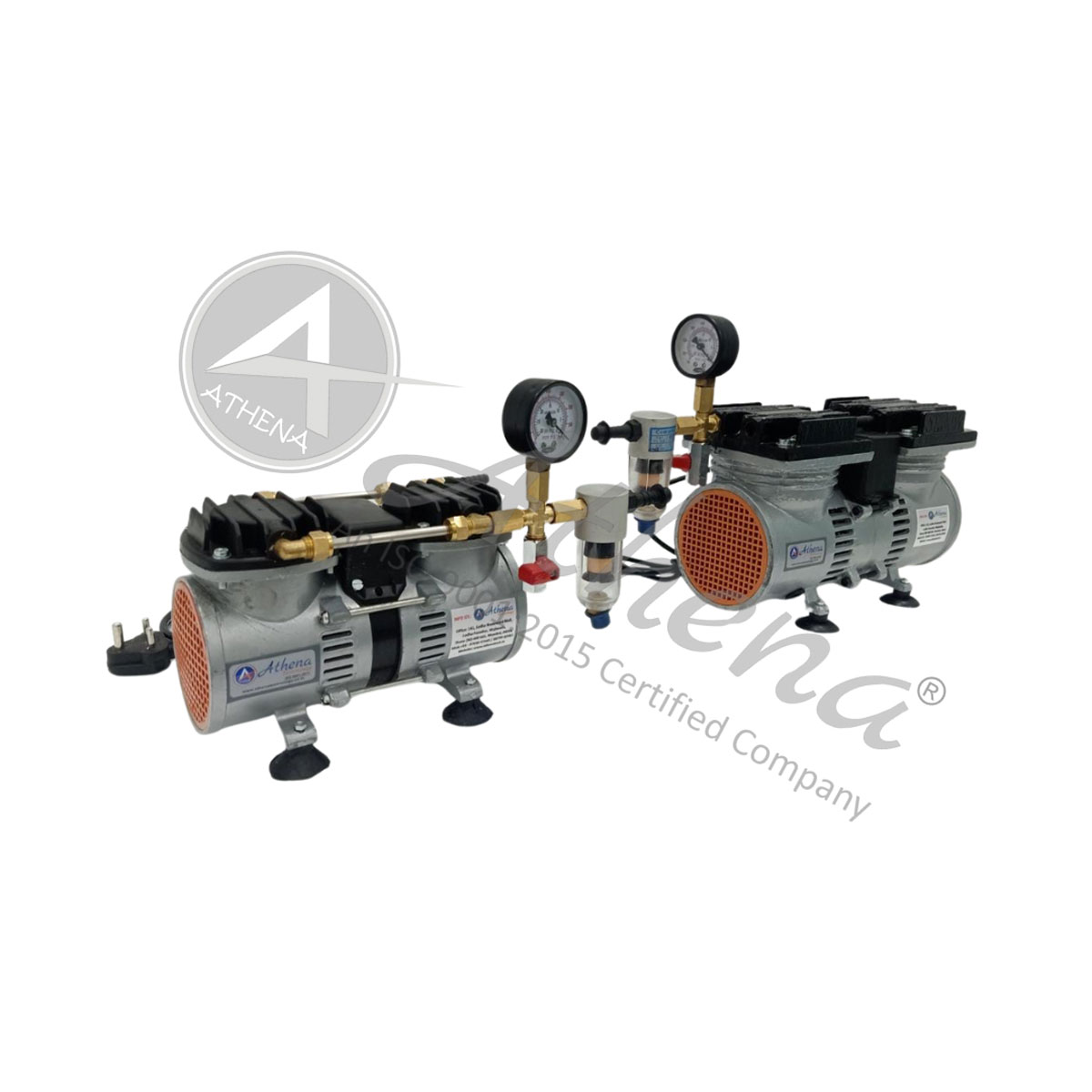

- VGR + Moisture Trap Combo
- Spare Kits: TEFLON Diaphragms, SS316 Valves, Pistons, Gaskets, Connectors, Cooling Fans
Additional Technical Highlights
Material Options:
TEFLON and SS316 for enhanced chemical resistance
Vacuum Strength:
Up to 28" Hg
Pressure Output:
Up to 55 PSI
Customization:
Optional DC motors for mobile and battery-powered systems
Voltage Compatibility:
230V AC / 50Hz
Flow Range:
Up to 75 LPM
Power Range:
1/20 to 1/4 HP
Why Choose Athena Instruments Oil-Free Diaphragm Vacuum Pumps
Trusted Performance, Certified Quality
The ATV Series vacuum pumps are CE certified, ISO 9001:2015 compliant, and manufactured under stringent quality protocols—underscoring Athena Instruments’ commitment to delivering safe, high-performance, and globally reliable vacuum solutions.
