SPE Vacuum Manifold
Multi-Position Solid Phase Extraction System

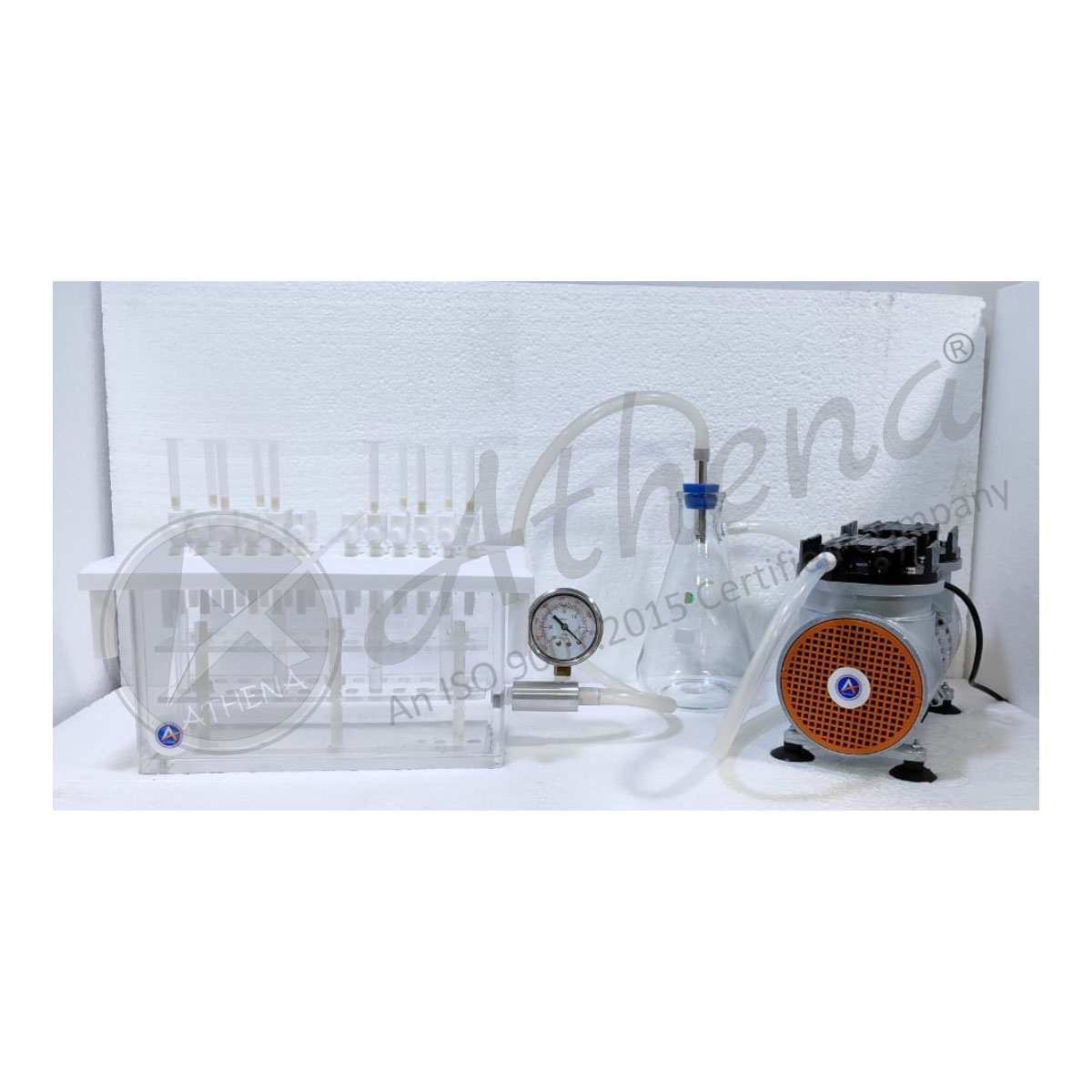

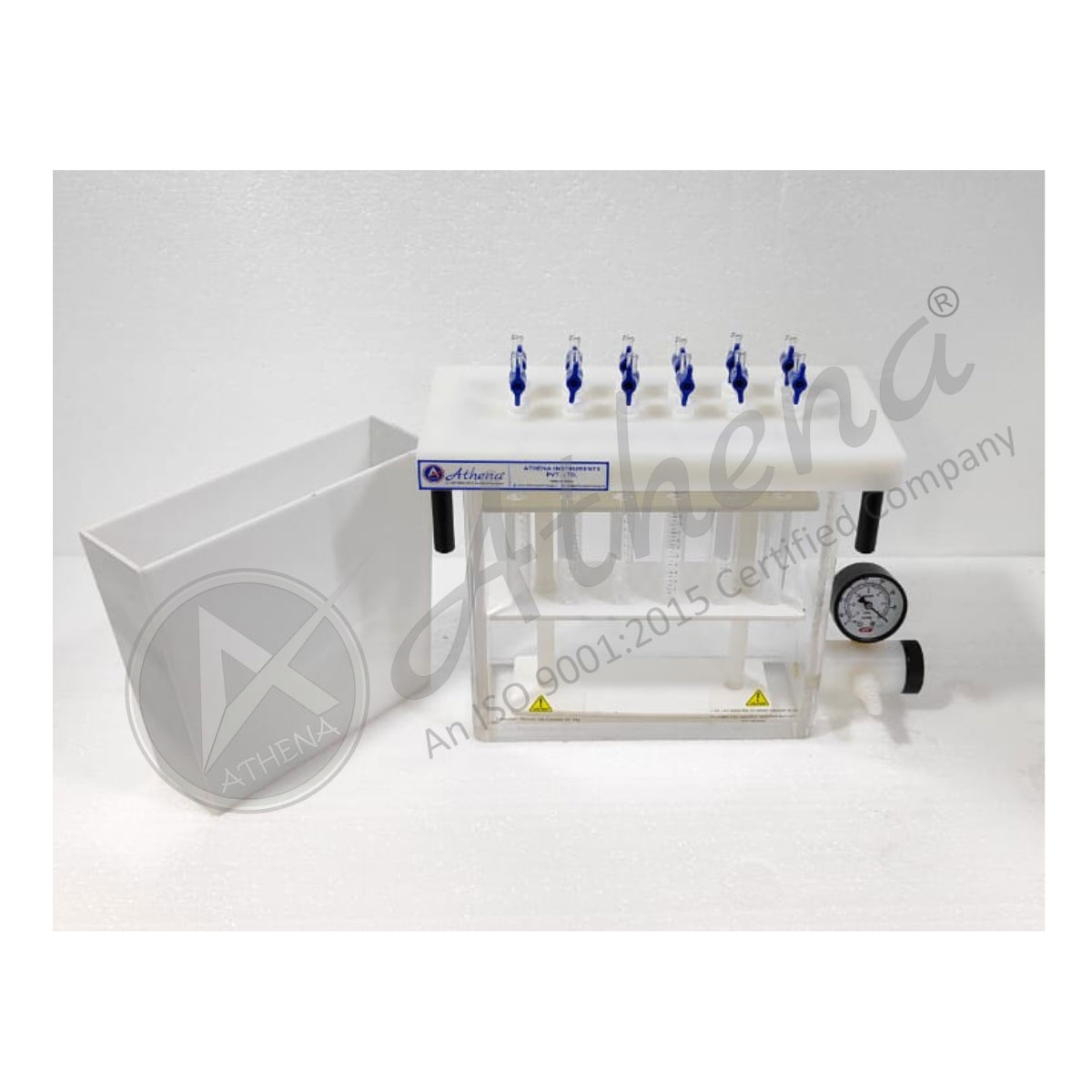

Athena Instruments introduces the SPE Vacuum Manifold-a precision-engineered, multi-port system designed for efficient, simultaneous solid phase extraction (SPE) of analytes from complex sample matrices. Built for pharmaceutical labs, food safety testing, environmental monitoring, and forensic analysis, this manifold enables streamlined sample preparation with reliable, contamination-free performance.

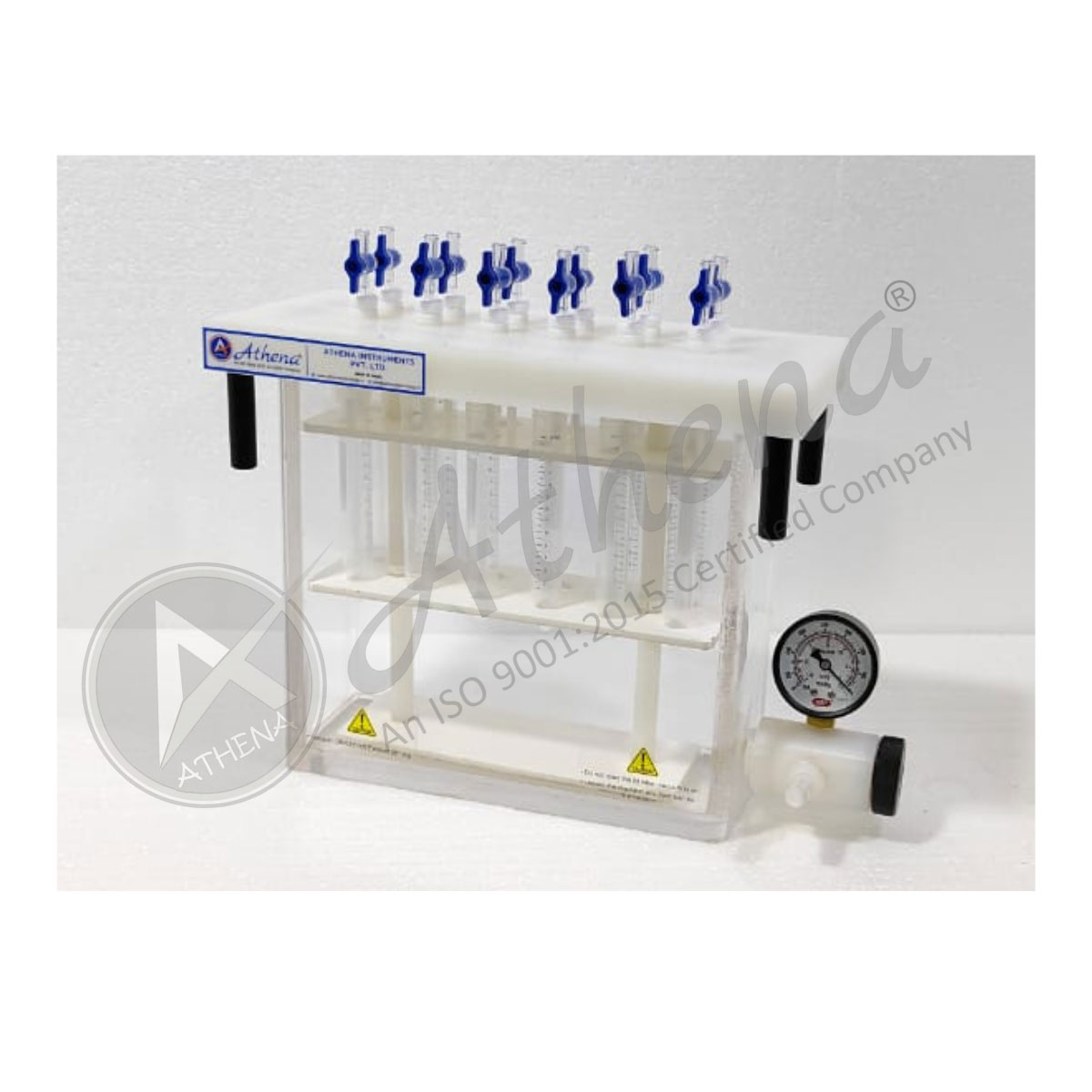

Constructed from high-quality glass or acrylic chambers with chemical-resistant components, the SPE Vacuum Manifold offers secure, consistent operation with easy visual monitoring. Available in 12 and 24-position models, it supports parallel processing to optimize laboratory workflows while maintaining strict quality standards.
Product Models & Specifications
| Model | Positions | Chamber Type | Vacuum Pump Model | Max Vacuum | Flow Rate | Pressure | Filtration Flask | Tubing Length |
|---|---|---|---|---|---|---|---|---|
| AVM 12S | 12 | Acrylic | ATV-75S | 27" Hg | 45 LPM | 55 PSI | ATF-1000 (1L) | 1.5 Mtr Silicone |
| AVM 24S | 24 | Acrylic | ATV-75S | 27" Hg | 45 LPM | 55 PSI | ATF-1000 (1L) | 1.5 Mtr Silicone |

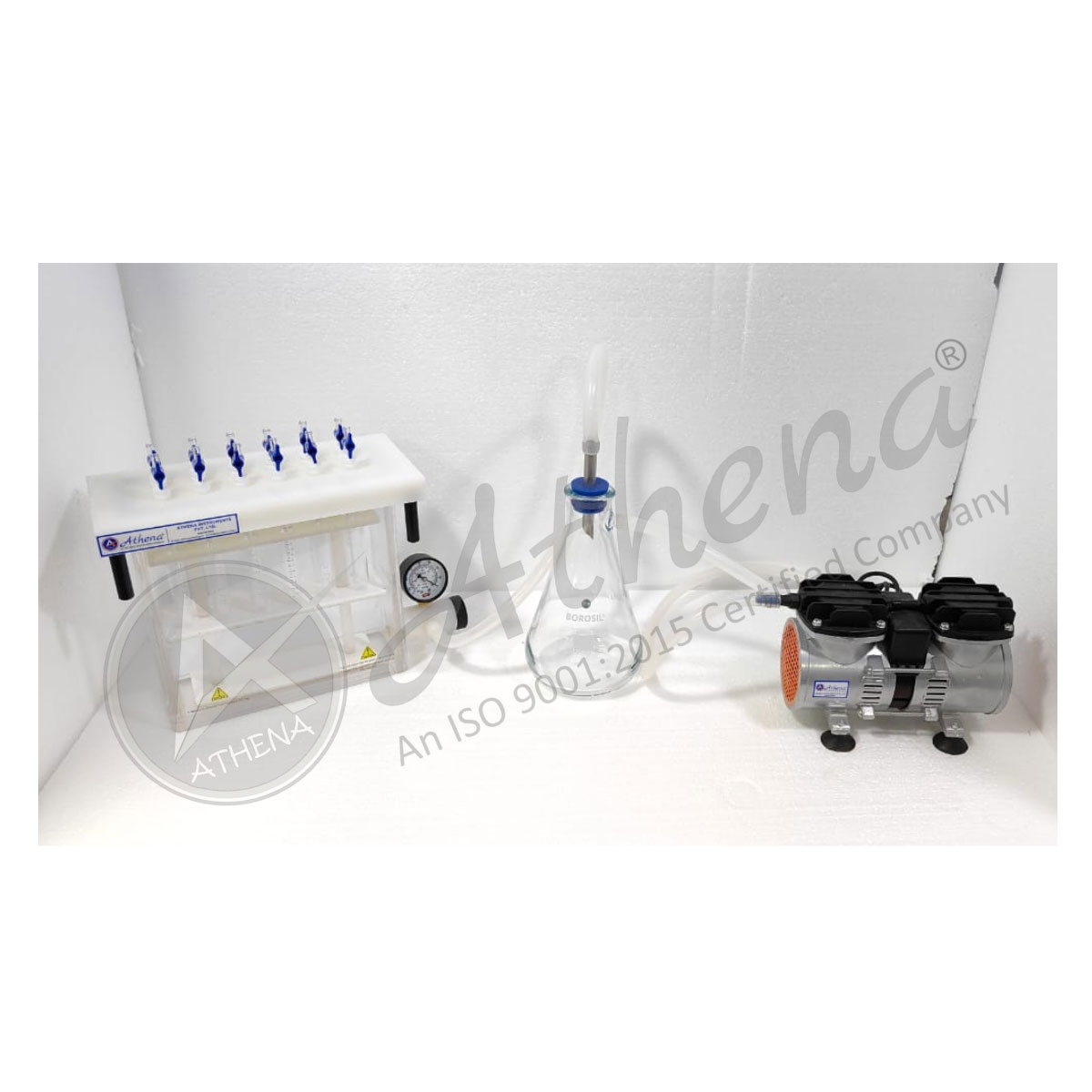

- Includes: Vacuum gauge, individual flow control stopcocks, Luer plugs, retaining clips, guide needles, valve assembly, adjustable posts and shelves, waste container.
Key Features
Robust Construction
Glass or acrylic vacuum chambers with durable polypropylene and stainless-steel fittings for long-lasting performance.
Flexible Sample Capacity
Available in 12 and 24-position models to accommodate varying laboratory workloads.
Universal Connectivity
Female Luer inlets compatible with all standard male Luer-tipped SPE tubes and cartridges.
Independent Flow Control

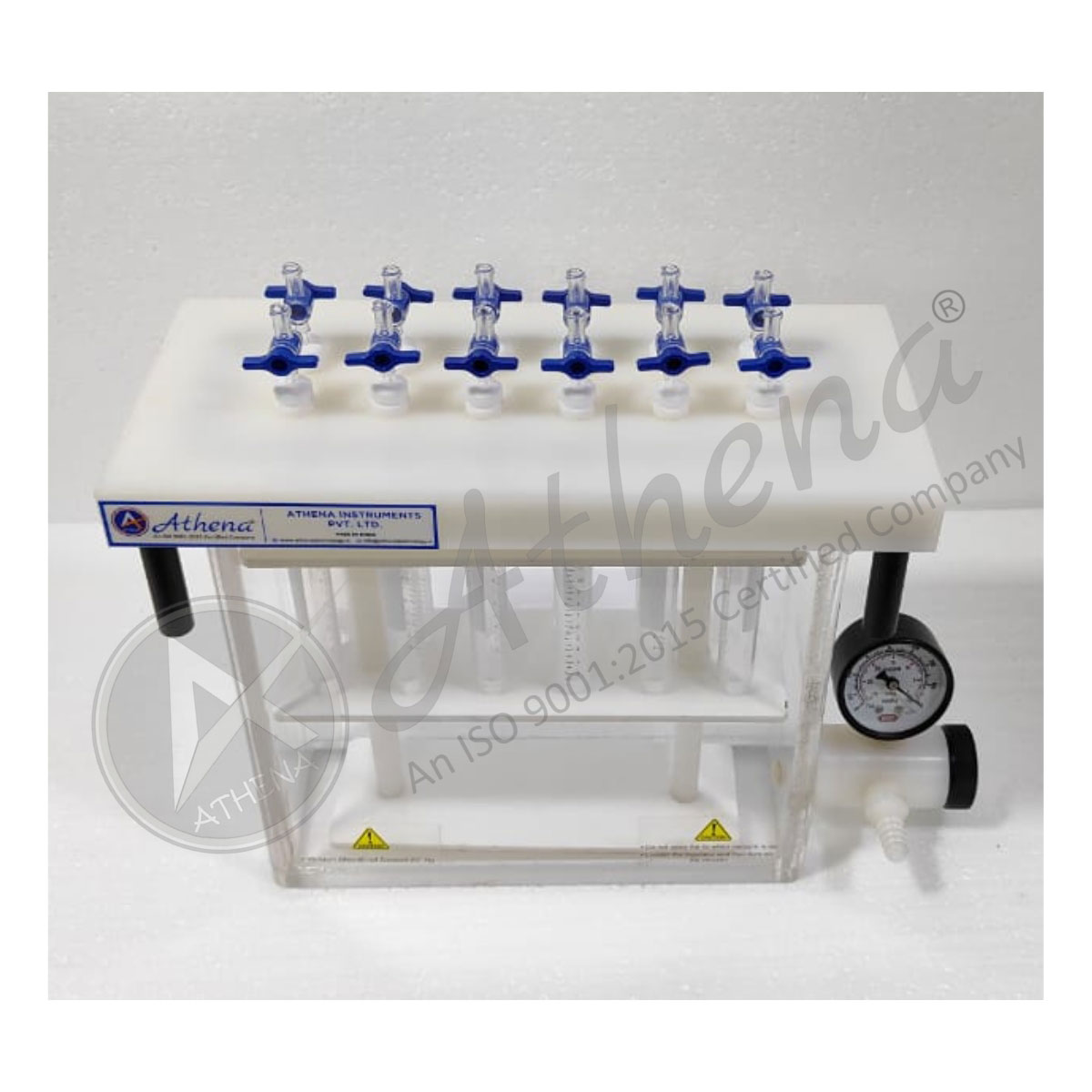

Each port equipped with individual stopcocks, guide needles, and retaining clips for precise, contamination-free sample handling.
Transparent Design
Clear chambers enable easy visual monitoring of solvent flow and elution steps.
Adjustable Shelves
Accommodates a range of test tubes, vials, and collection flasks for versatile lab use.
Reliable Vacuum Operation
Supports vacuum ranges up to 27" Hg with oil-free pump options for clean, maintenance-friendly performance.
Applications
Pharmaceutical Analysis
Extraction of active ingredients and metabolites from biological fluids (plasma, serum, urine).
Environmental Testing
Isolation of trace pollutants from drinking water, wastewater, and soil extracts.
Food & Agriculture Safety
Recovery of pesticides, antibiotics, and mycotoxins from complex food matrices.
Forensic and Clinical Toxicology
Preparation of samples for drug screening and toxicological analysis.
Protein & Peptide Research
Desalting and clean-up of proteins, peptides, and lipid fractions for analytical workflows.
Additional Technical Highlights
Material of Construction
Glass or acrylic chambers with polypropylene bodies and stainless-steel fittings for chemical resistance.
Port Configuration
12 or 24 Luer-compatible positions to match varying sample processing needs.
Vacuum Compatibility
Operates effectively under vacuum levels up to 27" Hg.
Flow Control
Precision stopcocks ensure uniform flow rates and minimize cross-contamination.
Collection Options
Adjustable shelves hold test tubes and vials of multiple diameters (12 mm to 30 mm).
Chemical Compatibility
Suitable for aqueous buffers, polar organic solvents (methanol, acetonitrile), and non-polar solvents (hexane, toluene).
Why Choose Athena’s SPE Vacuum Manifold?
Trusted Performance, Certified Quality
Athena’s SPE Vacuum Manifolds are CE certified, ISO 9001:2015 compliant, and manufactured under stringent quality control protocols-delivering consistent, reliable performance with internationally recognized safety and quality standards.
Frequently Asked Questions
Q1. Why are my SPE cartridges drying unevenly during sample extraction?
Answer: Uneven drying can result from inconsistent vacuum distribution, blocked cartridges, or differences in cartridge packing. Check the connections and flow settings, and ensure cartridges are seated correctly.
Q2. How do I choose between a 12-port and a 24-port SPE vacuum manifold?
Answer : Choose based on your sample batch size, laboratory workload, and available bench space. A 12-port model may suit smaller batches, while a 24-port model can accommodate more samples simultaneously.
Q3. Can an SPE vacuum manifold be used with different sample types and solvents?
Answer: Yes, provided the manifold materials, tubing, cartridges, and collection vessels are chemically compatible with the samples and solvents. Always check compatibility and follow appropriate laboratory safety procedures.
Q4. What causes slow flow or blockage in an SPE vacuum manifold?
Answer : Slow flow may be caused by clogged cartridges, particulate matter, viscous samples, or insufficient vacuum. Check the sample preparation method, cartridge condition, tubing, and vacuum source.
Q5. How can I improve the reproducibility of solid-phase extraction results?
Answer : Keep sample volumes, cartridge conditioning, loading rates, and elution procedures consistent. Maintaining appropriate vacuum levels and inspecting the system regularly can help improve repeatability.
