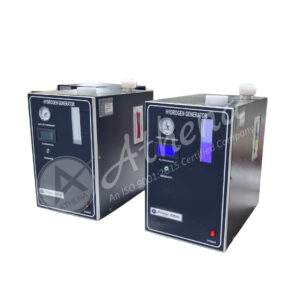

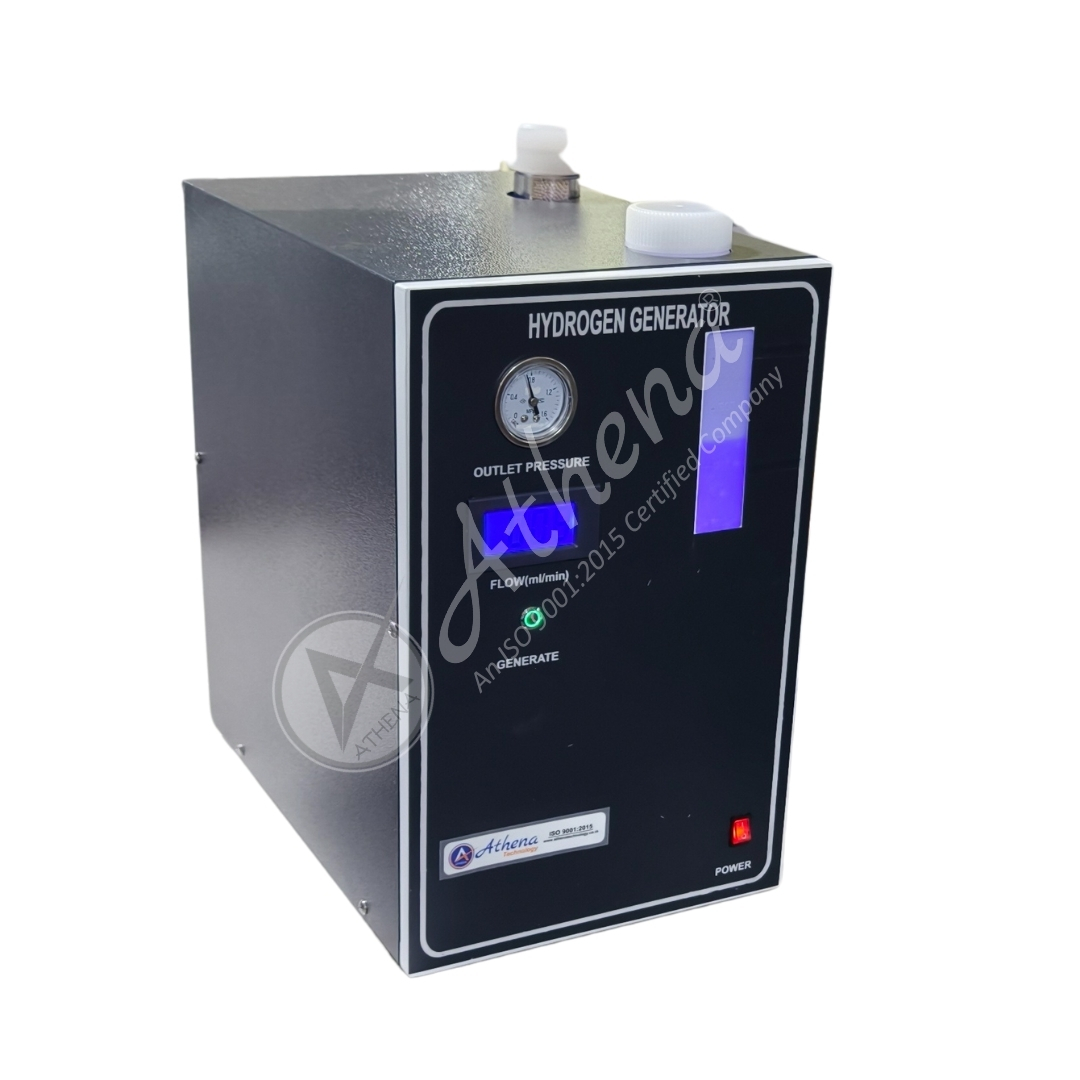

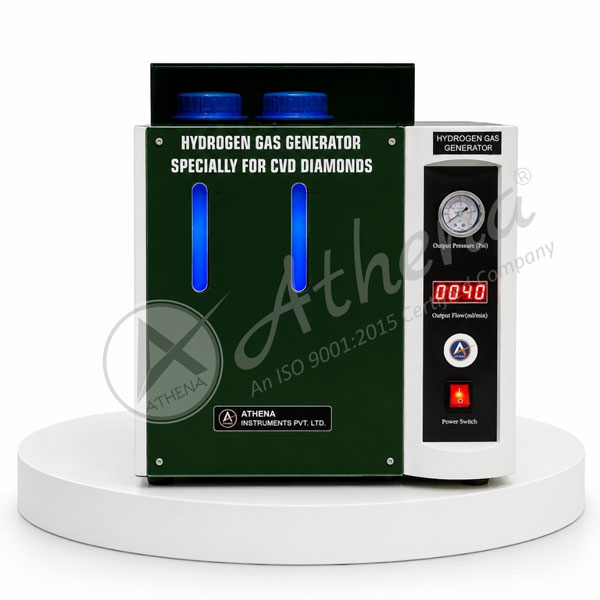

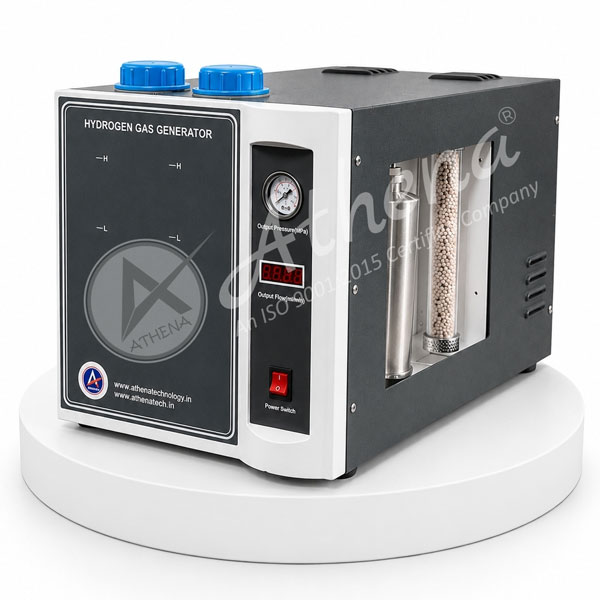

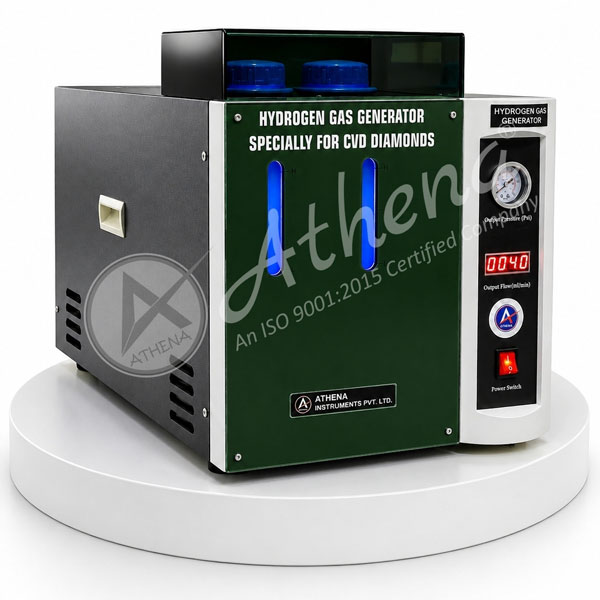

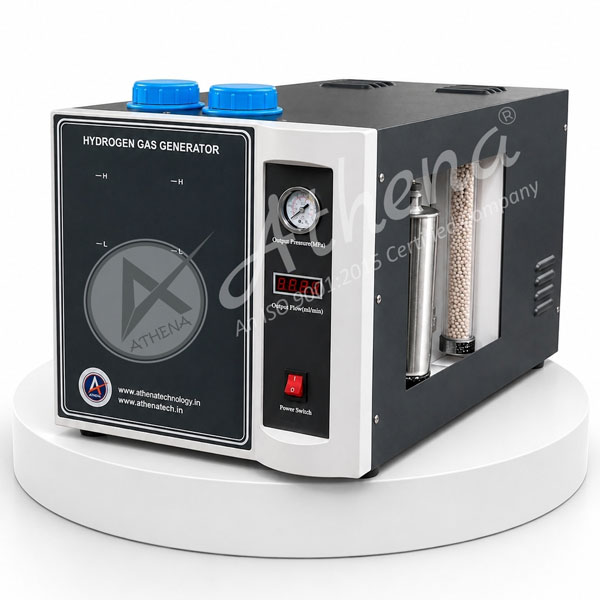

Hydrogen Gas Generator (AKL)
Alkaline Electrolytic Hydrogen Generation System
Athena Instruments introduces the Hydrogen Gas Generator (AKL Series), a robust and precision-engineered hydrogen generation system specifically designed for the continuous on-site production of ultra-high purity hydrogen gas for laboratory and industrial applications. Built using advanced Alkaline Electrolytic Technology with a gas-permeable membrane, our hydrogen generators efficiently electrolyze double-distilled water to produce high-purity hydrogen while safely separating oxygen during the electrolysis process. The generated hydrogen is passed through an advanced purification and drying system to ensure consistent purity, stable pressure, and reliable performance across applications including Gas Chromatography (GC), analytical laboratories, pharmaceutical industries, research institutions, furnace purging, Chemical Vapor Deposition (CVD), Microwave Plasma CVD (MPCVD), and other industrial hydrogen applications.
Available in multiple flow capacities ranging from 300 ml/min to 3000 ml/min, these generators are extensively tested for continuous laboratory operation and manufactured using high-quality electrolysis cells, efficient gas purification systems, and intelligent safety controls. Designed as a safe and economical alternative to conventional hydrogen cylinders, the AKL Series delivers hydrogen with purity greater than 99.999% and a dew point of -70°C. Every system is manufactured under stringent quality standards and complies with international certifications including CE, ISO 9001:2015, and FDA, ensuring dependable performance, low maintenance, and long service life for laboratories and industrial facilities.
Product Models & Specifications
|
Model |
Hydrogen Flow Rate | Hydrogen Purity | Delivery Pressure | Dew Point |
|---|---|---|---|---|
| ATH-300 | 300 ml/min | >99.999% | 0-4 Bar | -70°C |
| ATH-500 | 500 ml/min | >99.999% | 0-4 Bar | -70°C |
|
ATH-1000 |
1000 ml/min | >99.999% | 0-4 Bar |
-70°C |
| ATH-2000 | 2000 ml/min | >99.999% | 0-4 Bar |
-70°C |
| ATH-3000 | 3000 ml/min | >99.999% | 0-4 Bar | -70°C |
- Note: Higher flow capacities including 5 LPM, 10 LPM, and industrial hydrogen generation systems up to 500 Nm³/hr are available on request.
Key Features
Advanced Electrolytic Technology
Built using alkaline electrolytic technology with a gas-permeable membrane for efficient hydrogen generation, high electrolysis efficiency, and continuous production of ultra-high purity hydrogen gas.
Ultra-High Purity Hydrogen
Produces hydrogen with purity greater than99.999% and a-70°C dew point, making it suitable for Gas Chromatography, analytical instruments, and laboratory applications requiring clean and dry hydrogen.
Integrated Gas Purification
Equipped with an advanced purification and moisture removal system that delivers clean, dry hydrogen while safely venting oxygen generated during the electrolysis process.
Continuous On-Site Generation
Generates hydrogen directly at the point of use, eliminating the need for high-pressure gas cylinders and ensuring an uninterrupted hydrogen supply for continuous laboratory operation.
Reliable & User-Friendly Operation
Designed for automatic operation using double-distilled water with minimal operator intervention, providing reliable performance, low maintenance, and long equipment life.
Certifications
CE certified, ISO 9001:2015 compliant, FDA approved, and manufactured under stringent quality management systems for reliable laboratory and industrial operation.
Applications
Gas Chromatography
Reliable hydrogen supply for GC-FID, GC-FPD, GC-NPD, GC-TCD, and GC-ELCD as fuel gas, carrier gas, and reaction gas.
Analytical Laboratories
Ideal for analytical instruments, laboratory hydrogen supply, research laboratories, and quality control applications requiring continuous high-purity hydrogen.
Furnace Purging
Provides clean and dry hydrogen for furnace purging, heat treatment, and controlled atmosphere applications.
CVD & MPCVD Applications
Suitable for Chemical Vapor Deposition (CVD) and Microwave Plasma Chemical Vapor Deposition (MPCVD) processes requiring stable hydrogen purity.
Industrial & Research Applications
Designed for pharmaceutical laboratories, universities, industrial testing facilities, wastewater treatment plants, and general industrial hydrogen generation applications.
Additional Technical Highlights
Technology
Advanced alkaline electrolytic technology with a gas-permeable membrane for efficient hydrogen production and oxygen separation.
Hydrogen Purity
Produces hydrogen with purity greater than 99.999% and a-70°C dew point for laboratory-grade analytical applications.
Flow Range
Available in standard flow capacities from 300 ml/min to 3000 ml/min, with higher-capacity industrial systems available on request.
Water Requirement
Operates using double-distilled water with an alkaline electrolyte to provide stable, continuous, and reliable hydrogen generation.
Operating Pressure
Adjustable hydrogen outlet pressure up to 4 Bar, suitable for most laboratory analytical instruments.
Power Supply
Operates on 210-240 V AC, 50 Hz, Single Phase, with low power consumption and continuous automatic operation.
Compliance
CE certified, ISO 9001:2015 compliant, FDA approved, and manufactured under international quality standards for laboratory and industrial hydrogen generation.
Why Choose Athena's Hydrogen Gas Generator (AKL Series)?
Trusted Performance, Certified Quality
Athena’s Hydrogen Gas Generators (AKL Series) are CE certified, ISO 9001:2015 compliant, and manufactured under stringent in-house quality protocols , delivering reliable on-site hydrogen generation with ultra-high purity, dependable performance, and international safety and quality assurance for laboratory and industrial applications.
