Products

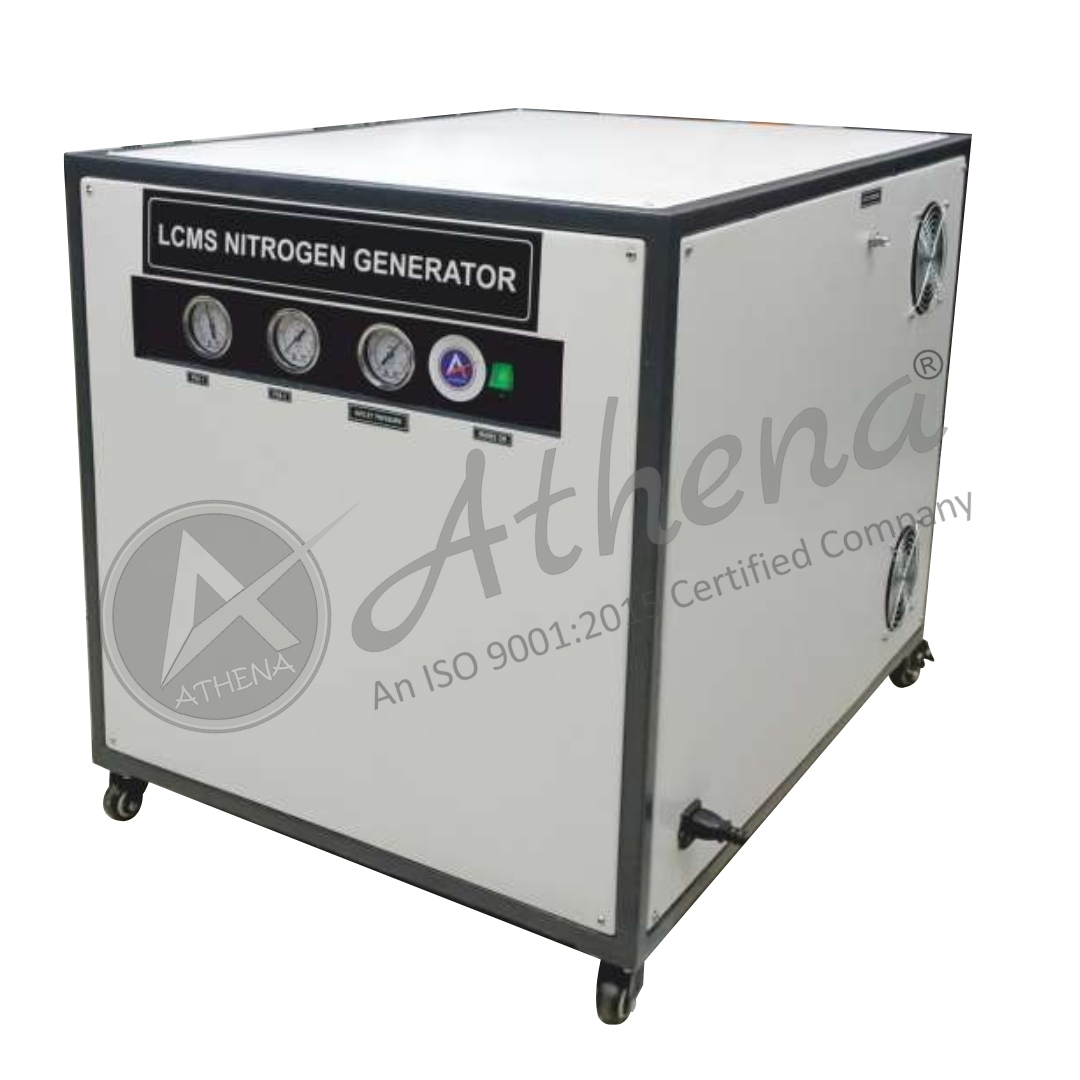

LC-MS-MS Nitrogen Gas Generator
High-Purity PSA & Membrane Nitrogen Generation System
Athena Instruments introduces the LC-MS / LC-MS-MS Nitrogen Gas Generator, a high-performance laboratory gas generation system engineered to provide a continuous supply of LC-MS grade nitrogen for modern analytical laboratories. Utilizing advanced Pressure Swing Adsorption (PSA) and Membrane Separation Technology, the system produces ultra-high purity nitrogen for drying gas, nebulizer gas, sheath gas, curtain gas, and other analytical applications required in LC-MS and LC-MS-MS instrumentation. Designed for uninterrupted 24×7 operation, the generator eliminates the need for conventional high-pressure gas cylinders while significantly reducing operating costs and laboratory downtime.
Available in multiple flow capacities and configurations, including Nitrogen-only and Tri-Gas models, Athena’s generators are compatible with most major LC-MS and LC-MS-MS platforms. Manufactured using premium-grade components with integrated air purification, moisture removal, intelligent PLC control, and low-noise operation, the systems deliver reliable performance with minimal maintenance. Every generator is manufactured under stringent quality standards and complies with international certifications including CE, ISO 9001:2015, FCC, EU, EN, and ATEX, ensuring dependable operation for pharmaceutical laboratories, research institutions, environmental testing, food analysis, and industrial analytical applications.
Product Models & Specifications
|
Model |
Gas Output | Flow Rate | Pressure | Applications |
|---|---|---|---|---|
| ATN-LCMS1 | Nitrogen | 6–40 LPM |
7 bar |
Standard LC-MS Instruments |
| ATN-LCMS2 | Nitrogen | 65 LPM |
7 bar |
High Flow LC-MS Systems |
| ATN-LCMSMS1 | Nitrogen + Zero Air + Dry Air |
N₂: 4 LPM, Zero Air: 12 |
7 bar |
Selected SCIEX LC-MS |
| ATN-LCMSMS2 | Nitrogen + Air + Dry Air | N₂: 12 LPM, Air: 24 LPM, Dry Air: 14 LPM | 7 Bar | All SCIEX LC-MS Instruments |
| ATN-LCMSMS3 | Nitrogen + Zero Air + Dry Air | N₂: 24 LPM, Zero Air: 48 LPM, Dry Air: 32 LPM | 7 Bar | High Flow LC-MS-MS Applications |
- Note: Custom flow capacities, pressure configurations, and instrument-specific models are available on request.
Key Features :
Advanced Gas Generation
Utilizes PSA and Membrane technologies to produce ultra-high purity LC-MS grade nitrogen with stable flow and pressure.
Continuous Duty Operation
Designed for reliable 24×7 automatic operation with PLC-controlled pneumatic valves and intelligent system monitoring.
Integrated Air Treatment
Complete compressed air filtration, drying, purification, and pressure regulation ensure clean, oil-free nitrogen generation.
Compact & Silent Design
Space-saving construction with soundproof enclosure and anti-vibration technology for quiet laboratory environments.
Smart Monitoring
LCD touchscreen interface enables real-time monitoring of pressure, operating status, alarms, and system parameters.
International Certifications
CE certified, ISO 9001:2015 compliant, FCC, EU, EN, and ATEX standards for quality and safety assurance.
Applications
LC-MS Analysis:
Supplies high-purity nitrogen for drying, nebulizer, and sheath gas applications in liquid chromatography-mass spectrometry.
LC-MS-MS Systems
Provides nitrogen, zero air, and dry air for tandem mass spectrometry and advanced analytical instrumentation.
Pharmaceutical Laboratories
Supports drug development, analytical testing, quality control, and research applications.
Environmental Testing
Suitable for trace-level environmental analysis requiring contamination-free nitrogen supply.
Food & Chemical Laboratories
Ideal for analytical testing, quality assurance, and routine laboratory operations.
Instrument Compatibility
Athena's Nitrogen Gas Generator is designed to provide reliable laboratory-grade nitrogen for:
- Gas Chromatographs: GC-FID, GC-FPD, GC-NPD, GC-ECD, GC-TCD, GC-ATD, AT-AED and GC-ELSD
- Thermal Analysis Instruments: THA, DSC Air and TGA
- Laboratory Analytical Systems: CO₂ Analyzers, TOC systems and particle sizing instruments
- Sample Preparation Equipment: Autosamplers and laboratory sample preparation applications
Additional Technical Highlights
Technology
Pressure Swing Adsorption (PSA) and Membrane Nitrogen Generation Technology
Nitrogen Purity
LC-MS Grade, up to 99.99% purity depending on application
Flow Capacity
Standard models from 6 LPM to 65 LPM; higher capacities available on request
Operating Pressure
Standard 7 bar with optional user-selectable pressure configurations
Gas Outputs
Nitrogen, Zero Air, and Dry Air depending on selected model
Air Treatment
Integrated filtration, moisture separator, purifier, and pressure regulation system
Automation
PLC-controlled pneumatic valves with LCD touchscreen interface for automatic operation
Operation
Continuous 24×7 duty cycle with low-noise and low-maintenance design
Compatibility
Suitable for major LC-MS and LC-MS-MS platforms including SCIEX and other leading OEM analytical instruments
Why Choose Athena's LC-MS / LC-MS-MS Nitrogen Gas Generators?
Trusted Performance, Certified Quality
Athena’s LC-MS / LC-MS-MS Nitrogen Gas Generators are manufactured under stringent quality control processes and tested to deliver reliable, high-purity gas generation for demanding analytical laboratories. Designed for long-term performance and certified to international quality and safety standards, our systems provide laboratories with a dependable, cost-effective, and maintenance-friendly solution for continuous LC-MS and LC-MS-MS operations.
Need help finding a solution?
- Custom Solutions
- Reliable & Safe Design
- Technical Support
- Quick Response
Share your requirements
