| Additional Technical Highlights | |
|---|---|
| Capacity Range | 100 ml/min to 10,000 ml/min (custom options available) |
| Purity | 99.999% – 99.9995% |
| Oxygen Content | < 5 ppm |
| Moisture Content | < 2 ppm |
| Particle Filtration | 0.01 µm |
| Output Pressure | Upto 7 kg/cm2 |
| Technology | PSA with fully regenerative columns |
| Electrical Supply | 220V AC, 1-phase, 50 Hz |
| Noise Level | 55 – 60 dB |
Key Features
- High-Purity Nitrogen Output: Delivers nitrogen with 99.999% – 99.9995% purity, ensuring stable detector baselines and high reproducibility for chromatographic analysis.
- Advanced PSA Technology: Dual-column PSA system with fully regenerative carbon molecular sieve beds ensures consistent nitrogen purity and long operational lifespan.
- Consistent Pressure & Flow Delivery: Provides output pressure up to 7 kg/cm2, supporting multi-GC setups while maintaining uniform flow rates under varying laboratory loads.
- Integrated Multi-Stage Filtration: Equipped with ultrafine dust, moisture, oil, and hydrocarbon removal filters, including 0.01 µm filtration, ensuring gas-tight integrity and contaminant-free output.
- Compact & Robust Design: Space-efficient system constructed with high-grade components, optimized for continuous performance with minimal maintenance.
Applications
Gas Chromatography (GC)
- Reliable nitrogen supply for detectors including:
- GC-FID
- GC-MS
- GC-FPD
- GC-NPD
- GC-ECD
- GC-TCD
- GC-ATD
- GC-AED
- GC-ELSD
- Autosamplers & Injection Systems
Analytical & Industrial Use
- Petrochemical and refinery labs
- Environmental monitoring agencies
- Pharmaceutical R&D, QC
- Material science & advanced research
Fully Customizable Based on Your Flow, Pressure, and Purity Requirements
Why Choose Athena’s Refrigerated Air Dryers?
Trusted Performance, Certified Quality

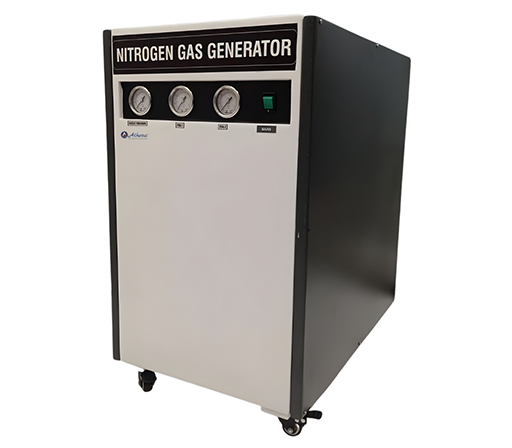

Athena’s Nitrogen Gas Generators are CE certified, ISO 9001:2015 compliant, and manufactured under strict quality protocols. Each unit undergoes performance validation to ensure accurate, stable, and safe nitrogen delivery for demanding analytical environments.
