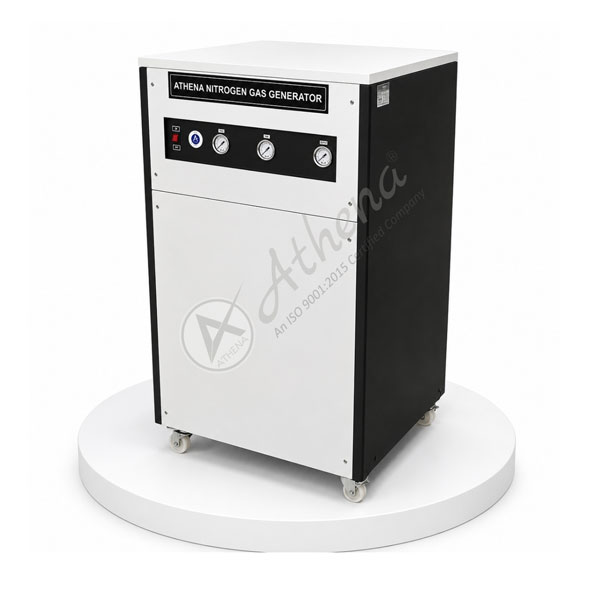

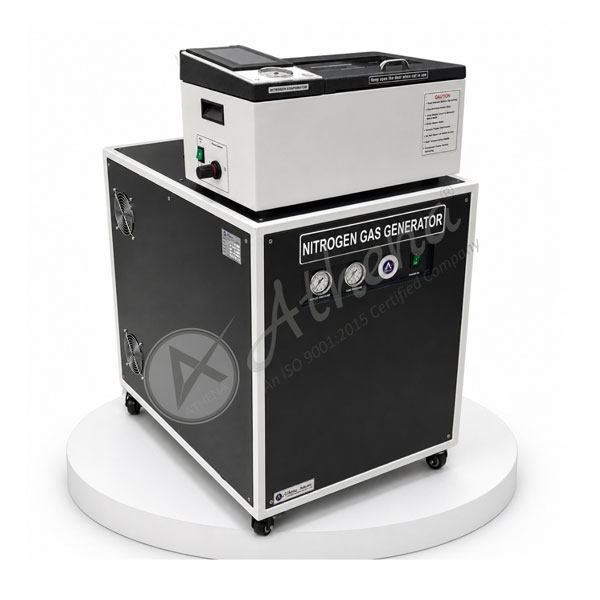

Nitrogen Gas Generator for Turbovap Evaporator
PSA-Based Laboratory Nitrogen Generation System
Athena Instruments introduces the Nitrogen Generator for N₂ Evaporator / TurboVap / SPE Processor, a reliable and precision-engineered PSA-based nitrogen generation system designed to provide a continuous supply of high-purity nitrogen for sample evaporation, nitrogen purging, and solid phase extraction (SPE) applications. Built using Pressure Swing Adsorption (PSA) technology with twin carbon molecular sieve (CMS) adsorption columns, the system efficiently separates nitrogen from compressed air to produce high-purity nitrogen for laboratory and pharmaceutical processes. Designed for continuous operation, our nitrogen generators deliver stable gas purity, consistent flow, and dependable performance for nitrogen evaporators, TurboVap systems, SPE processors, pharmaceutical laboratories, and other analytical applications.
Available in multiple flow capacities to support different sample throughput requirements, these generators are equipped with an automatic heatless air dryer, integrated nitrogen purifier, moisture removal system, and built-in surge receiver for reliable performance and long service life. Manufactured under stringent quality standards, the systems are certified to meet international compliance requirements, including CE, ISO 9001:2015, and FDA, ensuring safe operation, low maintenance, and consistent nitrogen generation for laboratory environments.
Product Models & Specifications
|
Model |
Flow Rate | Capacity | Recommended Application |
|---|---|---|---|
| ATN-P30 | 30 LPM | 2 Nm³/hr | 8 Sample Nitrogen Evaporator |
| ATN-P75 | 75 LPM | 5 Nm³/hr | 25 Sample Nitrogen Evaporator |
| ATN-P150 | 150 LPM | 10 Nm³/hr | 50 Sample Nitrogen Evaporator |
| ATN-P300 | 300 LPM | 20 Nm³/hr | 100 Sample Nitrogen Evaporator |
| ATN-P450 | 450 LPM | 30 Nm³/hr | 144 Sample Nitrogen Evaporator |
| ATN-P100 | 100 LPM | 6 Nm³/hr | 48 Position SPE Processor |
| ATN-P200 | 200 LPM | 12 Nm³/hr | 96 Position SPE Processor |
| ATN-P300 | 300 LPM | 18 Nm³/hr | 144 Position SPE Processor |
- Note: Higher flow capacities and custom system configurations are available on request.
Key Features
PSA Nitrogen Generation
Built using Pressure Swing Adsorption (PSA) technology with twin CMS adsorption columns for continuous high-purity nitrogen production.
Integrated Air Purification
Equipped with an automatic heatless air dryer, nitrogen purifier, and multi-stage air filtration system for removing oxygen, moisture, oil mist, and dust.
Continuous Operation
Designed for uninterrupted 24×7 operation, ensuring a constant nitrogen supply for laboratory processes.
Compact & Silent Design
Space-saving construction with silent operation for easy installation in laboratory environments.
Multiple Instrument Support
Capable of supplying nitrogen to multiple evaporators, TurboVap systems, and SPE processors from a single unit.
Certified Quality
CE certified, ISO 9001:2015 compliant, FDA approved, and manufactured under strict quality control standards.
Applications
Nitrogen Evaporators
Supplies high-purity nitrogen for rapid and efficient sample concentration during laboratory evaporation processes.
TurboVap Systems
Provides continuous nitrogen flow for TurboVap evaporators used in pharmaceutical, environmental, and food testing laboratories.
SPE Processors
Delivers clean nitrogen for Solid Phase Extraction (SPE) systems used in sample preparation and analytical workflows.
Pharmaceutical Laboratories
Suitable for drug development, quality control, analytical testing, and research applications.
Analytical & Research Laboratories
Ideal for nitrogen purging, sample concentration, and laboratory processes requiring a continuous nitrogen supply.
Additional Technical Highlights
Technology
Pressure Swing Adsorption (PSA) technology with twin Carbon Molecular Sieve (CMS) adsorption columns
Nitrogen Purity
Available from 99% to 99.9999% depending on application requirements
Flow Capacity
Standard models available from 30 LPM to 450 LPM; custom capacities available on request
Air Treatment
Automatic heatless air dryer with integrated moisture, dust, oil mist, and oxygen removal system
Operation
Continuous 24×7 automatic operation with built-in surge receiver, pressure regulator, and automatic moisture drain
Instrument Compatibility
Suitable for Nitrogen Evaporators, TurboVap systems, SPE Processors, and nitrogen purging applications
Compliance
CE certified, ISO 9001:2015 compliant, FDA approved, and manufactured under stringent quality management standards
Why Choose Athena's Nitrogen Generators for N₂ Evaporators, TurboVap & SPE Processors?
Trusted Performance, Certified Quality
Athena’s Nitrogen Generators for N₂ Evaporators, TurboVap & SPE Processors are CE certified, ISO 9001:2015 compliant, and manufactured under stringent in-house quality standards, delivering continuous, high-purity nitrogen with reliable performance, low operating costs, and dependable quality for laboratories across pharmaceutical, analytical, and research industries.
