Heatless Air Dryer
Desiccant Compressed Air Dryer for Ultra-Dry Air Applications

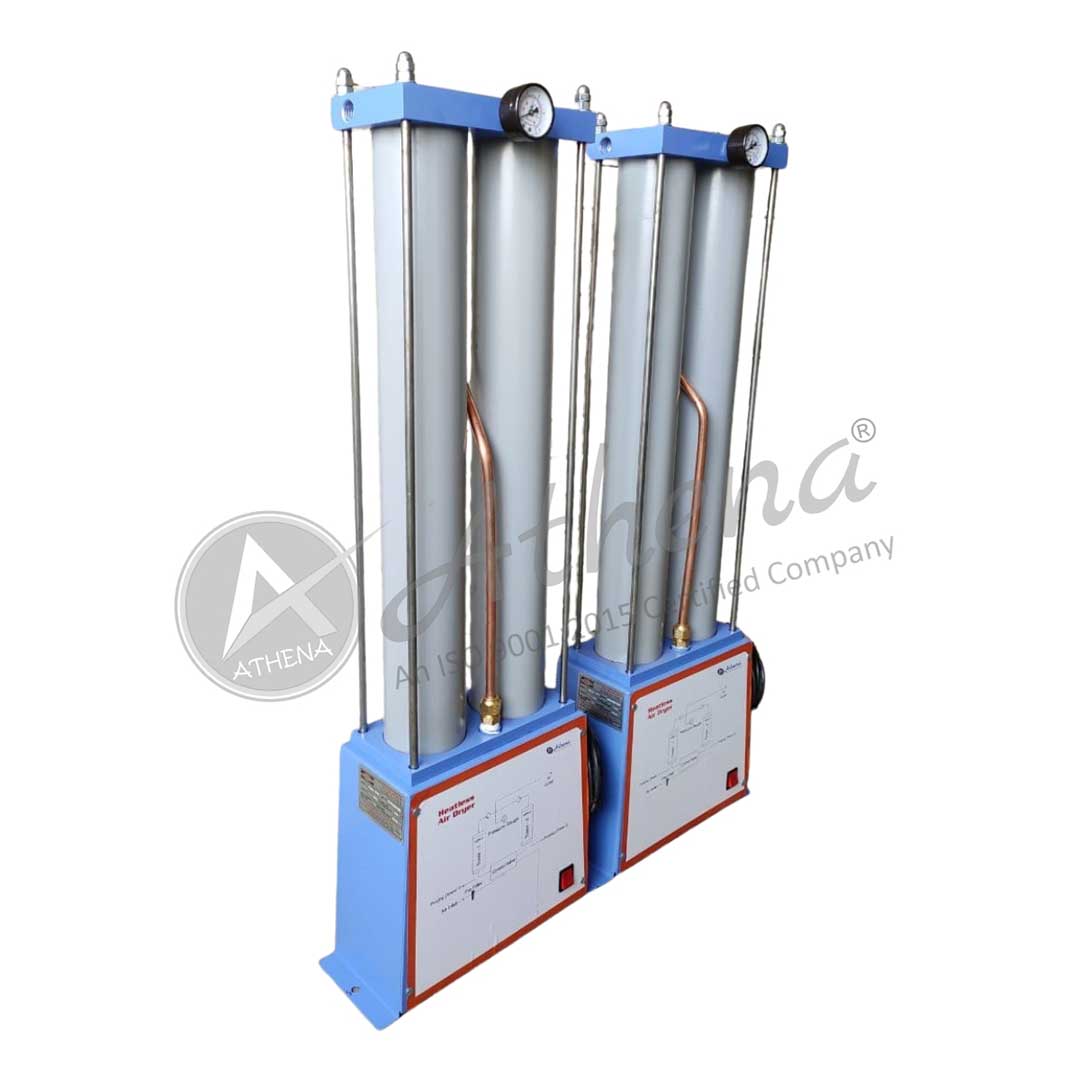

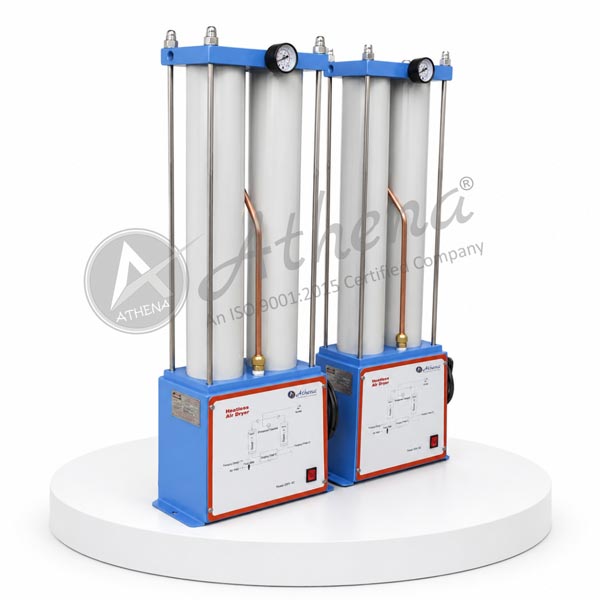

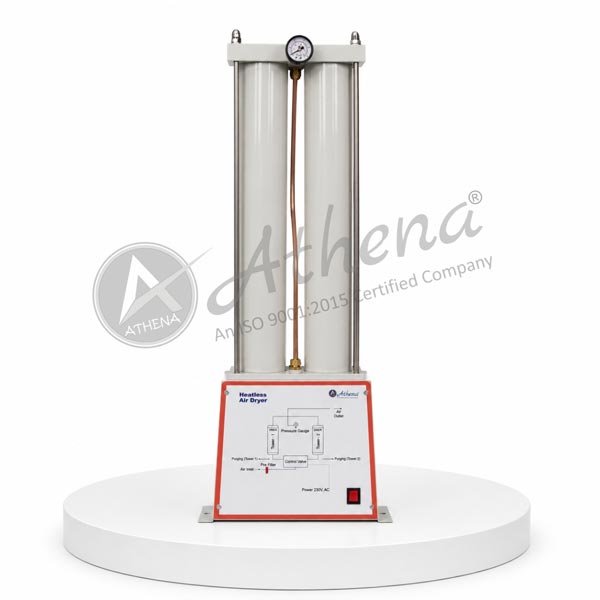

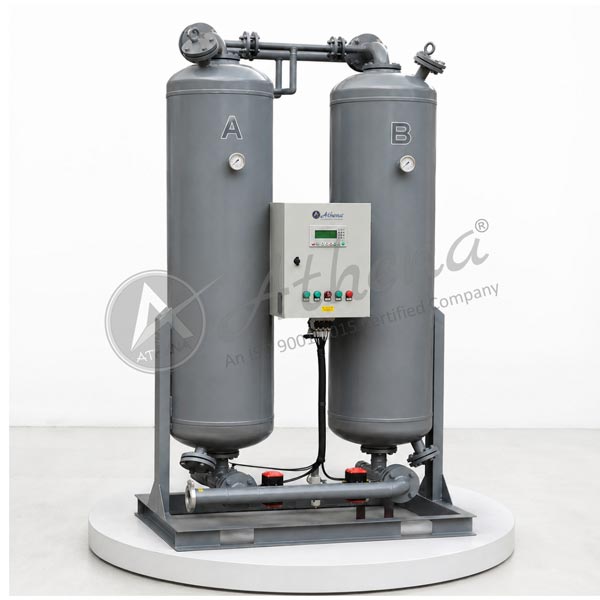

Athena Instruments introduces the ATHD Series Heatless Air Dryer, a robust and precision-engineered desiccant compressed air drying system specifically designed to remove moisture from compressed air and deliver ultra-dry air for critical industrial and instrumentation applications. Built with a twin-tower adsorption design and filled with high-quality Activated Alumina or Molecular Sieves, the dryer ensures reliable moisture removal, continuous operation, and consistent compressed air quality. Utilizing Pressure Swing Adsorption (PSA) Technology, the ATHD Series is widely used across pharmaceutical, automotive, food & beverage, spray painting, powder coating, process instrumentation, hospitals, and general manufacturing industries where moisture-free compressed air is essential.
Available in multiple flow capacities from 5 CFM to 500 CFM, the ATHD Series is designed to achieve a pressure dew point of −40°C while operating within a working pressure range of 4–12 Bar. The system incorporates a 0.1-micron coalescing pre-filter , 20-micron inbuilt post filter, automatic tower changeover, and external purge control to ensure dependable drying performance with low power consumption and minimal maintenance. Designed to deliver compressed air quality in accordance with ISO 8573-1 Table 3, Class 2 / Class 3, the ATHD Series provides a reliable solution for demanding industrial compressed air systems.
Product Models & Specifications
|
Model |
Flow Capacity (CFM) |
Connection (BSP-F) |
Dimensions (H × L × D) mm |
Approx. Weight (kg) |
|---|---|---|---|---|
| ATHD-05 | 5 | ½" | 570 × 240 × 100 | 12 |
| ATHD-10 | 10 | ½" | 670 × 240 × 100 | 15 |
| ATHD-20 | 20 | ½" | 990 × 240 × 100 | 20 |
|
ATHD-30 |
30 | ½" | 900 × 350 × 150 | 31 |
| ATHD-40 | 40 | ½" | 1100 × 350 × 150 | 35 |
| ATHD-70 | 70 | ¾" | 1530 × 590 × 220 | 100 |
| ATHD-100 | 100 | 1" | 1650 × 800 × 800 | 130 |
| ATHD-150 | 150 | 1" | 1850 × 800 × 800 | 300 |
| ATHD-250 | 250 | 1½" | 2100 × 1225 × 800 | 800 |
| ATHD-300 | 300 | 1½" | 2100 × 1225 × 800 | 800 |
| ATHD-400 | 400 | 2" | 2000 × 1200 × 800 | 800 |
| 1500 |
500 |
2" | 2500 × 1400 × 800 |
ATHD-500 |
- Note: Custom flow options, high-pressure models, and specific desiccant selections are available on request.
|
Model |
Flow Capacity (CFM) |
|---|---|
| Working Pressure Range | 4 to 12 Bar |
| Working Temperature Range | 5°C to 45°C |
| Pre Filter | 0.1 Micron (Coalescing Type) |
| Post Filter | 20 Micron (Inbuilt) |
| Purge Loss | 10 to 12% |
| Pressure Dew Point | -40°C |
| Voltage Range | 90V to 260V, 50 Hz, Single Phase |
- Note: ATHD Series Heatless Air Dryers are available in multiple flow capacities from 5 CFM to 500 CFM to suit different compressed air requirements. Models can be selected based on system flow rate, connection size, and installation requirements.
Key Features
Pressure Swing Adsorption Technology
Utilizes twin desiccant towers filled with Activated Alumina or Molecular Sieves to achieve efficient moisture removal and a pressure dew point of −40°C.
High-Efficiency Filtration
Incorporates a 0.1-micron coalescing pre-filter and 20-micron inbuilt post filter to remove dust, oil, bulk liquids, and residual contaminants from the compressed air stream.
Automatic Tower Regeneration
Features automatic tower changeover with external purge control for continuous drying performance and efficient desiccant regeneration.
Low Power Consumption
Engineered with an energy-efficient control system that minimizes operating costs while maintaining reliable dryer performance.
Compact & Reliable Construction
Compact, lightweight design with corrosion-resistant metallic tubing for easy installation and dependable long-term operation.
Superior Compressed Air Quality
Delivers compressed air quality conforming to ISO 8573-1 Table 3, Class 2 / Class 3 for critical industrial and instrumentation applications.
Applications
Pharmaceutical Manufacturing
Provides ultra-dry compressed air for pharmaceutical production, packaging, and clean process applications.
Automotive & Engineering
Supplies moisture-free compressed air for pneumatic tools, assembly lines, and industrial automation systems.
Spray Painting & Powder Coating
Prevents moisture contamination during painting and coating operations, ensuring high-quality surface finishes.
Food & Beverage Processing
Delivers dry compressed air for food processing, beverage production, and packaging applications.
Instrumentation & Industrial Utilities
Suitable for hospitals, process instrumentation, tool rooms, and general industrial compressed air systems requiring low-moisture air.
Additional Technical Highlights
Drying Technology
Pressure Swing Adsorption (PSA) system with twin desiccant towers for continuous moisture removal.
Desiccant Media
High-quality Activated Alumina or Molecular Sieves for efficient water adsorption.
Pressure Dew Point
Delivers a pressure dew point of −40°C for critical compressed air applications.
Filtration System
Equipped with a 0.1-micron coalescing pre-filter and 20-micron inbuilt post filter.
Automatic Regeneration
Timed automatic tower switching with external purge control for uninterrupted operation.
Compressed Air Quality
Designed to achieve compressed air quality in accordance with ISO 8573-1 Table 3, Class 2 / Class 3.
Industrial Construction
Compact, corrosion-resistant design suitable for continuous industrial operation.
Why Choose Athena's Heatless Air Dryer?
Trusted Performance, Certified Quality
Athena’s ATHD Series Heatless Air Dryers are engineered to deliver reliable moisture removal and consistent compressed air quality for critical industrial applications. Designed with proven Pressure Swing Adsorption technology and high-quality desiccant media, they provide dependable performance, energy-efficient operation, and long service life for demanding compressed air systems.
