Refrigerated Air Dryer
Compressed Air Moisture Removal System for Industrial & Instrumentation Applications

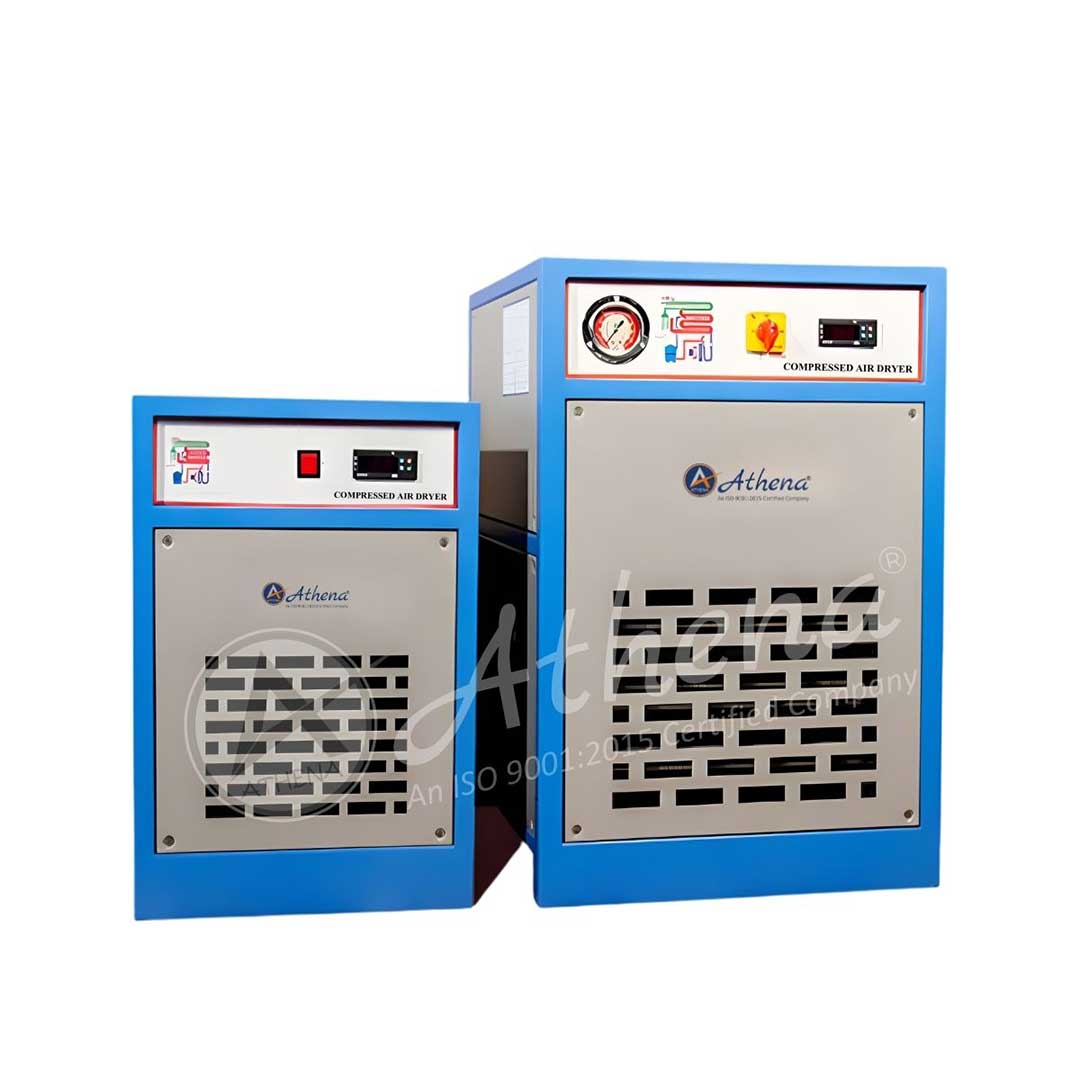

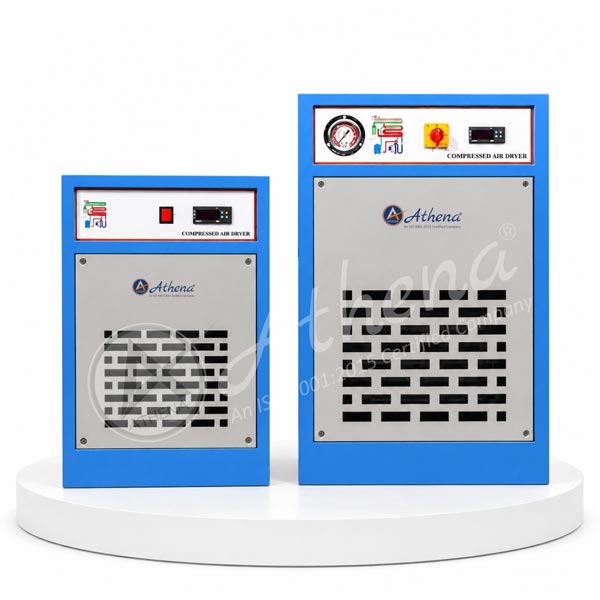

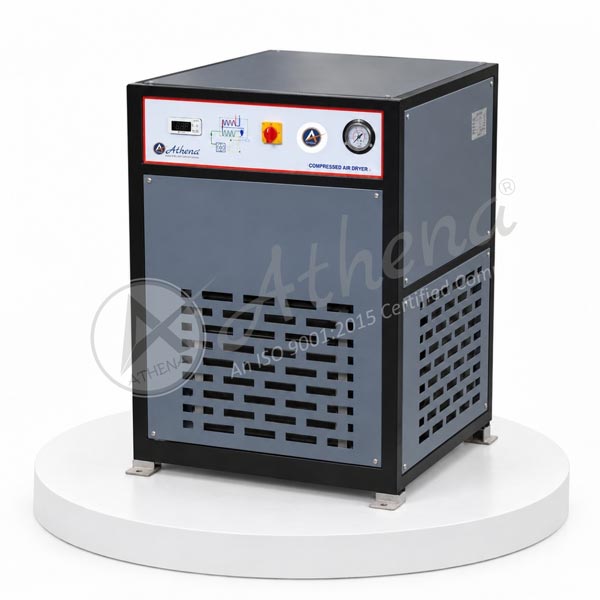

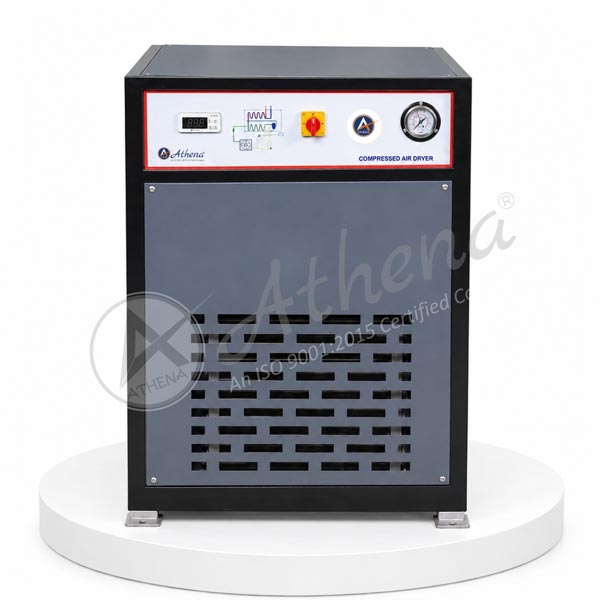

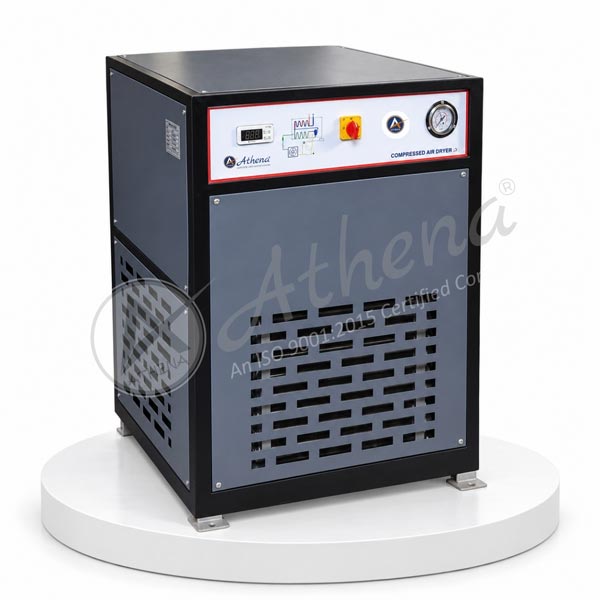

Athena Instruments introduces the ATRD Series Refrigerated Air Dryer, a compact and precision-engineered compressed air drying system designed to remove moisture from compressed air and deliver clean, dry air for industrial and instrumentation applications. Utilizing an advanced refrigeration drying process, the system cools compressed air to approximately +3°C, allowing moisture to condense and separate before being automatically discharged through an integrated drain valve. The dried air is then reheated through an air-to-air heat exchanger, preventing downstream pipe sweating while maintaining efficient compressed air distribution. The ATRD Series is ideally suited for automobile, pharmaceutical, chemical, electronics, food & beverage, printing, textile, power, and general manufacturing industries requiring reliable compressed air quality.
Available in multiple capacities from 15 CFM to 2000 CFM with working pressure options of 16 kg/cm² and 40 kg/cm², the ATRD Series is designed to provide consistent dew point performance under varying load conditions. The system features compact construction, low pressure drop, energy-efficient operation, automatic condensate drainage, and reliable refrigeration technology to ensure long service life with minimal maintenance. Designed for continuous industrial operation, the Refrigerated Air Dryer provides an economical and dependable solution for protecting pneumatic equipment, process instrumentation, and compressed air systems from moisture-related damage.
Product Models & Specifications
|
Model |
Capacity (CFM) |
Working Pressure |
Connection (BSP) |
Refrigerant |
Power Supply |
Condenser Type |
Power Consumption (kW) |
|---|---|---|---|---|---|---|---|
|
ATRD-25 |
25 |
16 kg/cm² |
1/2" |
R134a |
220V / 1Ph |
Air |
0.19 |
|
ATRD-45 |
45 |
16 kg/cm² |
1/2" |
R134a |
220V / 1Ph |
Air |
0.37 |
|
ATRD-60 |
60 |
16 kg/cm² |
3/4" |
R134a |
220V / 1Ph |
Air |
0.37 |
|
ATRD-80 |
80 |
16 kg/cm² |
3/4" |
R134a |
220V / 1Ph |
Air |
0.60 |
| ATRD-100 | 100 | 16 kg/cm² | 1" | R134a | 220V / 1Ph | Air | 0.60 |
| ATRD-125 | 125 | 16 kg/cm² | 1½" | R134a | 220V / 1Ph | Air | 0.60 |
| ATRD-150 | 150 |
16 kg/cm² |
1½" | R134a / R407C | 220V / 1Ph | Air | 1.40 |
| ATRD-200 | 200 | 16 kg/cm² | 1½" | R134a / R407C | 220V / 1Ph | Air | 1.40 |
| ATRD-250 | 250 | 16 kg/cm² | 1½" | R134a / R407C | 220V / 1Ph | Air | 1.70 |
| ATRD-300 | 300 | 16 kg/cm² | 2" |
R134a / R407C |
220V / 1Ph |
Air | 1.70 |
| ATRD-400 | 400 | 16 kg/cm² | 2" | R22 / R407C | 440V / 3Ph | Air | 2.30 |
| ATRD-500 | 500 | 16 kg/cm² | 3" | R22 / R407C | 440V / 3Ph | Air | 3.10 |
| ATRD-600 | 600 | 16 kg/cm² | 3" | R22 / R407C | 440V / 3Ph | Air | 3.20 |
| ATRD-800 | 800 | 16 kg/cm² | 3" | R22 / R407C |
440V / 3Ph |
Air | 4.20 |
| ATRD-1000 | 1000 | 16 kg/cm² | 4" Flanged | R22 / R407C | 440V / 3Ph | Air / Water | 5.80 |
| ATRD-1250 | 1250 |
16 kg/cm² |
4" Flanged | R22 / R407C | 440V / 3Ph | Air / Water | 6.20 |
| ATRD-1500 | 1500 | 16 kg/cm² | 5" Flanged | R22 / R407C | 440V / 3Ph | Air / Water | 7.80 |
| ATRD-2000 | 2000 | 16 kg/cm² | 6" Flanged | R22 / R407C | 440V / 3Ph | Air / Water | 9.90 |
- High Pressure Series (40 kg/cm²)
|
Model |
Capacity (CFM) |
Working Pressure |
Connection (BSP) |
Refrigerant |
Power Supply |
Condenser Type |
Power Consumption (kW) |
|---|---|---|---|---|---|---|---|
|
ATRD-25 |
25 |
40 kg/cm² | 1/2" | R134a |
220V / 1Ph |
Air |
0.21 |
|
ATRD-45 |
45 |
40 kg/cm² |
1/2" |
R134a |
220V / 1Ph |
Air |
0.21 |
|
ATRD-60 |
60 |
40 kg/cm² |
3/4" |
R134a |
220V / 1Ph |
Air |
0.37 |
|
ATRD-80 |
80 |
40 kg/cm² | 3/4" |
R134a |
220V / 1Ph |
Air |
0.39 |
|
ATRD-100 |
100 |
40 kg/cm² |
1" |
R134a |
220V / 1Ph |
Air |
0.39 |
|
ATRD-150 |
150 |
40 kg/cm² |
1¼" |
R134a / R407C |
220V / 1Ph |
Air |
0.66 |
|
ATRD-200 |
200 |
40 kg/cm² | 1¼" |
R134a / R407C |
220V / 1Ph |
Air |
0.66 |
|
ATRD-250 |
250 |
40 kg/cm² | 1¼" |
R134a / R407C |
220V / 1Ph |
Air |
1.02 |
|
ATRD-300 |
300 |
40 kg/cm² | 1¼" | R22 / R407C |
220V / 1Ph |
Air |
1.40 |
|
ATRD-400 |
400 |
40 kg/cm² | 1¼" |
R22 / R407C |
440V / 3Ph |
Air |
1.40 |
|
ATRD-500 |
500 |
40 kg/cm² | 1½" |
R22 / R407C |
440V / 3Ph |
Air |
1.78 |
|
ATRD-600 |
600 |
40 kg/cm² | 1½" |
R22 / R407C |
440V / 3Ph |
Air |
1.90 |
|
ATRD-800 |
800 |
40 kg/cm² |
3" |
R22 / R407C |
440V / 3Ph |
Air |
4.20 |
|
ATRD-1000 |
1000 |
40 kg/cm² |
4" Flanged |
R22 / R407C |
440V / 3Ph |
Air / Water |
5.80 |
|
ATRD-1250 |
1250 |
40 kg/cm² |
4" Flanged |
R22 / R407C |
440V / 3Ph |
Air / Water |
6.20 |
|
ATRD-1500 |
1500 |
40 kg/cm² |
5" Flanged |
R22 / R407C |
440V / 3Ph |
Air / Water |
7.80 |
- Note : ATRD Series Refrigerated Air Dryers are available in Standard Pressure (16 kg/cm²) and High Pressure (40 kg/cm²) configurations. Refrigerant type, condenser configuration, power supply, dimensions, and weight vary depending on the selected model and capacity. Please refer to the detailed technical datasheet for complete dimensional specifications.
Key Features
Efficient Moisture Removal
Cools compressed air to approximately +3°C, allowing moisture to condense and be automatically removed before the air enters the distribution system.
Energy-Efficient Refrigeration System
Utilizes an air-to-air heat exchanger and refrigeration heat exchanger to improve cooling efficiency while reducing energy consumption.
Low Pressure Drop
Designed to maintain efficient compressed air flow while minimizing pressure loss throughout the drying process.
Automatic Condensate Drainage
Incorporates an automatic drain valve to continuously remove condensed moisture without interrupting system operation.
Constant Dew Point Performance
Maintains a stable dew point under varying operating loads, ensuring consistent compressed air quality.
Compact & Reliable Design
Engineered with compact construction, easy installation, low maintenance requirements, and dependable long-term operation.
Applications
Industrial Compressed Air Systems
Provides dry compressed air for manufacturing plants and industrial pneumatic equipment.
Automobile & Engineering Industry
Suitable for compressed air used in assembly lines, pneumatic tools, CNC machines, and CMM systems.
Pharmaceutical & Chemical Industry
Delivers moisture-free compressed air for pharmaceutical production, chemical processing, and laboratory applications.
Food, Beverage & Packaging
Supports compressed air systems used in food processing, beverage production, PET blow moulding, and packaging operations.
Printing, Textile & General Manufacturing
Protects pneumatic equipment and process instrumentation across printing, textile, paper, hospital, and general industrial facilities.
Additional Technical Highlights
Cooling Technology
Air-to-Air pre-cooling combined with refrigeration heat exchanger for efficient moisture removal.
Drying Temperature
Compressed air cooled to approximately +3°C for effective condensation of moisture.
Moisture Separation
High-efficiency demister with automatic condensate drain valve.
Low Pressure Drop
Optimized internal flow path minimizes pressure loss during air drying.
Stable Dew Point
Delivers consistent compressed air quality under varying operating loads.
Energy Efficient Operation
Heat recovery through air-to-air heat exchanger improves overall efficiency.
Industrial Construction
Compact, reliable design suitable for continuous industrial compressed air applications.
Why Choose Athena's Refrigerated Air Dryer?
Trusted Performance, Certified Quality
Athena’s ATRD Series Refrigerated Air Dryers are engineered to deliver reliable moisture removal and consistent compressed air quality for demanding industrial applications. Designed for efficient operation, low maintenance, and long service life, they provide dependable protection for compressed air systems, pneumatic equipment, and process instrumentation.
Need help finding a solution?
- Custom Solutions
- Reliable & Safe Design
- Technical Support
- Quick Response
Share your requirements
