Products
Filtration Assembly
Laboratory-Grade Vacuum Filtration Systems
Engineered for Sterility, Precision, and Contaminant-Free Sample Preparation
Athena Instruments presents the Filtration Assembly, a robust and modular vacuum filtration system engineered for precise and sterile sample filtration across pharmaceuticals, microbiology, food testing, environmental monitoring, and analytical laboratories. Designed for ease of use, long-term reliability, and superior chemical resistance, these systems are ideal for a wide range of liquid filtration tasks, from solvent purification to microbiological analysis.
Crafted from high-grade SS316/SS316L stainless steel and supported by CE, ISO 9001:2015, and FDA certifications, Athena’s filtration assemblies are built for critical lab operations that demand contamination control, efficiency, and regulatory compliance.
Key Features :
- Premium Construction: Built from SS316L stainless steel with electro-polished finish, PTFE stopcocks, and autoclavable components.
- Versatile Configurations: Available in single, 3-stage, and 6-stage manifolds with interchangeable funnels in SS, PP, or glass.
- Chemical Resistant: Suitable for corrosive liquids, solvents, aqueous solutions, and microbiological media.
- Precision Sealing: Inbuilt SS316 clamp system and silicone stoppers ensure leak-proof, airtight filtration.
- Compact & Modular: Designed to occupy minimal bench space while offering modular expansion for multi-sample processing.
- Certified Safe: Complies with ISO 9001:2015, CE, FDA, BIS, ISO 80079-36:2016, and other international standards.
Applications
Sterility
Testing
Ideal for antibiotic and pharmaceutical sterility analysis under vacuum conditions.
Microbiological Analysis
Suitable for yeast, mold, and bacteria detection with membrane filtration.
HPLC Sample Preparation
Efficiently removes particulates prior to chromatographic analysis.
Water & Wastewater Testing
For suspended solids, contamination checks, and environmental sampling.
Food, Beverage & Cosmetics
Ensures hygienic sample prep in quality assurance labs.
Product Models & Specifications
| Model Name |
Funnel Capacity |
Filter Size |
Filtration Area |
Material |
Clamp Type |
|---|---|---|---|---|---|
| ATFH300 | 300 ml | 47 mm | 2.1 cm² | SS316L | Inbuilt Clamp |
| ATFH500 | 500 ml | 47 mm | 9.6 cm² | SS316L |
Inbuilt Clamp |
| ATFH1000 | 1000 ml | 90 mm | 43 cm² |
SS316L |
Inbuilt Clamp |

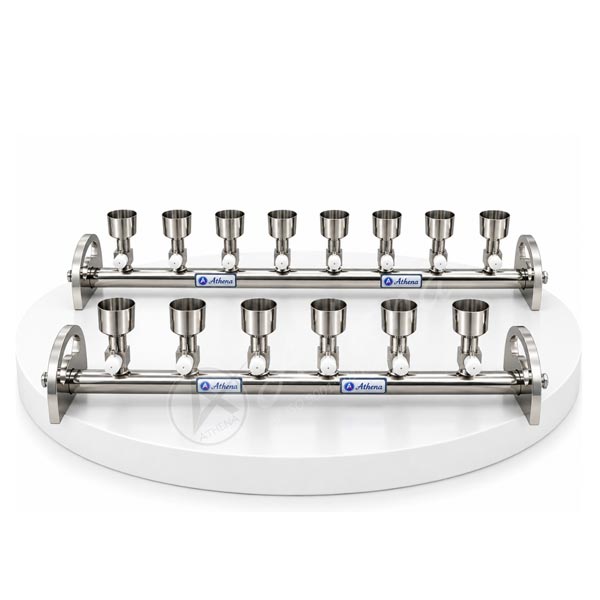

Available Manifold Configurations:

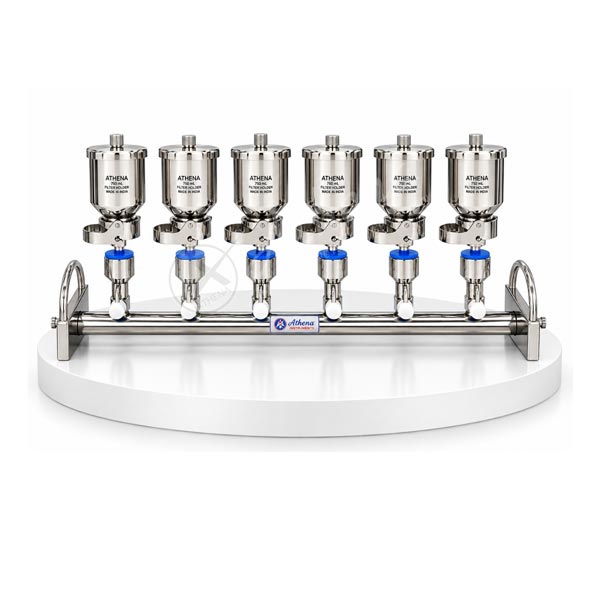

- ATVFM03 – 3-Stage Sterility Manifold
- ATVFM06 – 6-Stage Sterility Manifold
(Custom configurations available on request)

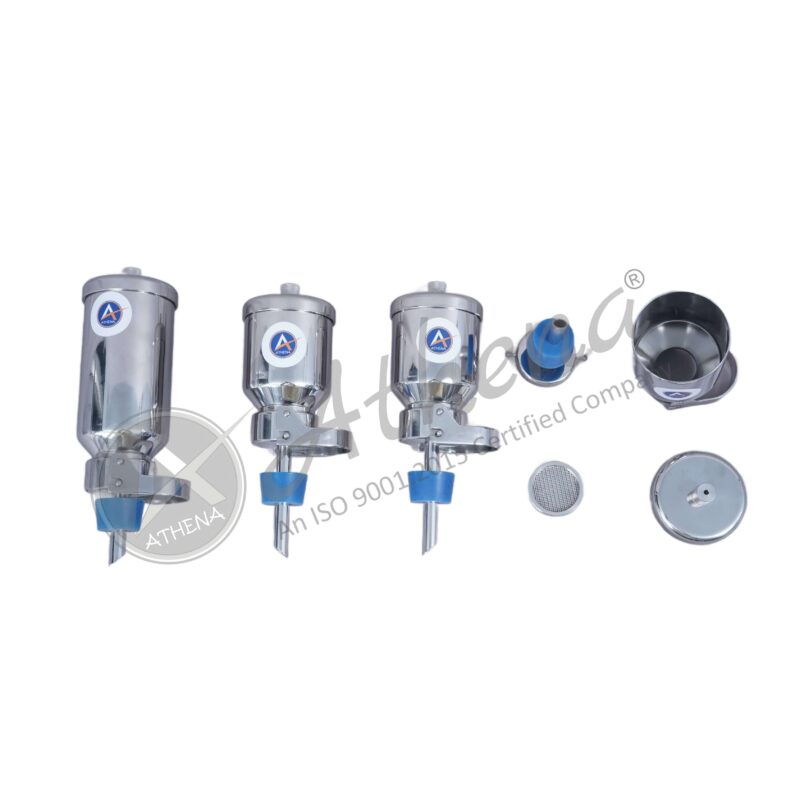

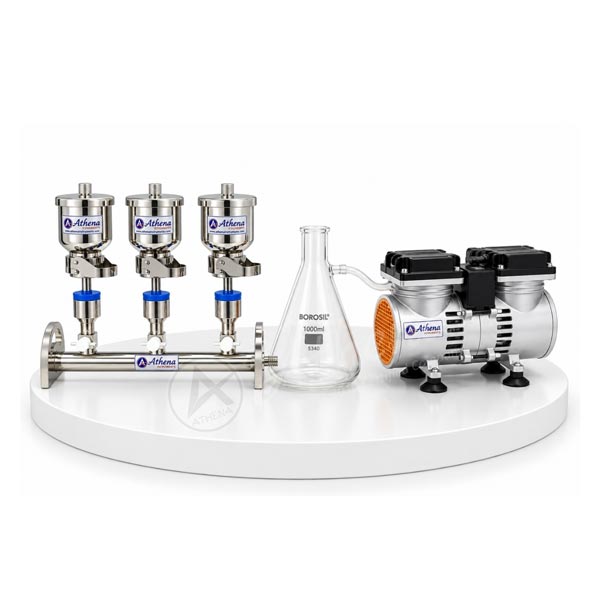

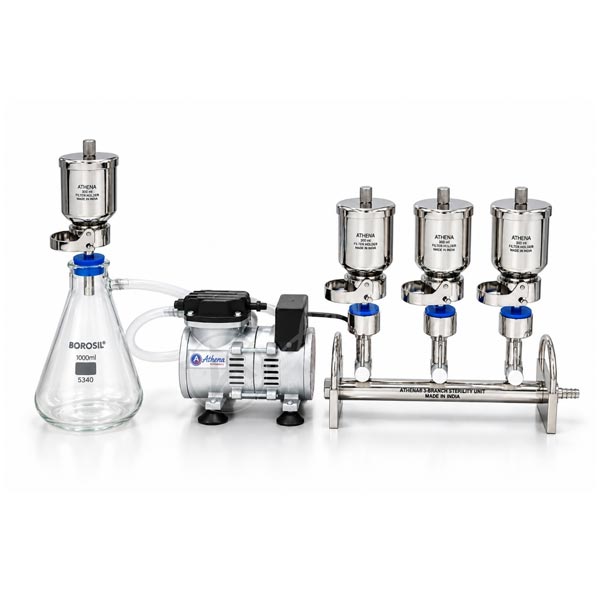

Complete Solvent Filtration Assembly (SS Filter Holder)
- 3-Stage SS316 Manifold (Inbuilt or Duck Clamp)
- Borosilicate Glass Flask (1000 ml, 2000 ml, 5000 ml options)
- SS316 Funnel with Silicone Stopper
- Oil-Free Vacuum Pump ( ATV-75-S )
- 47 mm x 0.45 µm Cellulose Nitrate Membrane Filter
- Vacuum Trap, Silicone Tubing, and Forceps
Additional Technical Highlights
Construction:
SS316/SS316L components with optional PTFE elements
Filter Sizes:
13 mm, 25 mm, 47 mm,
90 mm
Sealing System:
Silicone stoppers, SS clamps, and gasketed connections
Compatibility:
Membrane filter paper, Petri dishes, syringe holders, and vent filters
Autoclavable:
All wetted parts sterilizable at 121°C
Pump Integration:
Compatible with Athena’s oil-free vacuum pumps (15–75 L/min)
Why Choose Athena Instruments Filtration Assembly?
Trusted Precision. Certified Performance.
Athena’s Filtration Assembly systems deliver industry-standard performance with the safety, accuracy, and durability required for advanced laboratory environments. Built with precision and supported by global certifications, they are a must-have for modern scientific testing and analysis.
