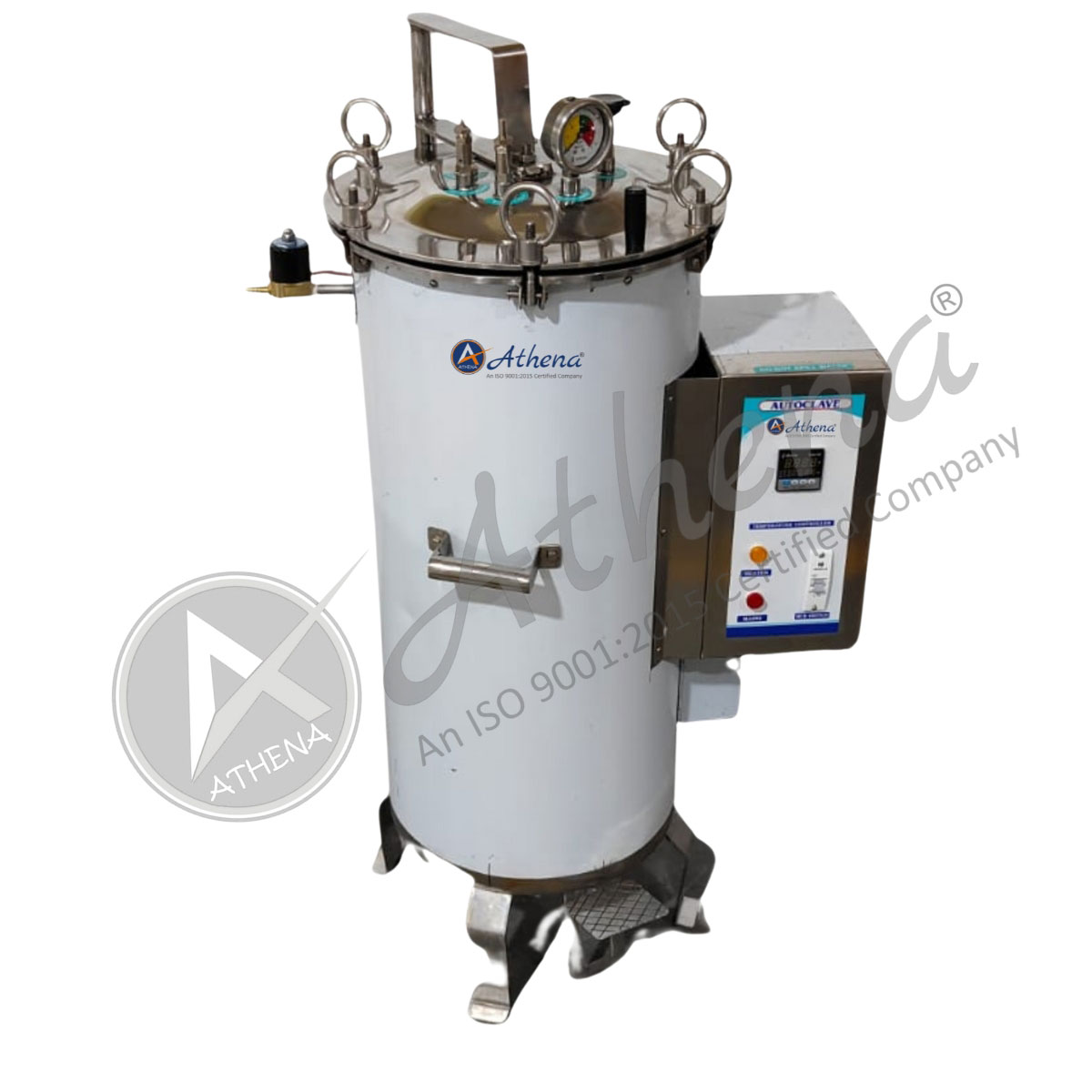

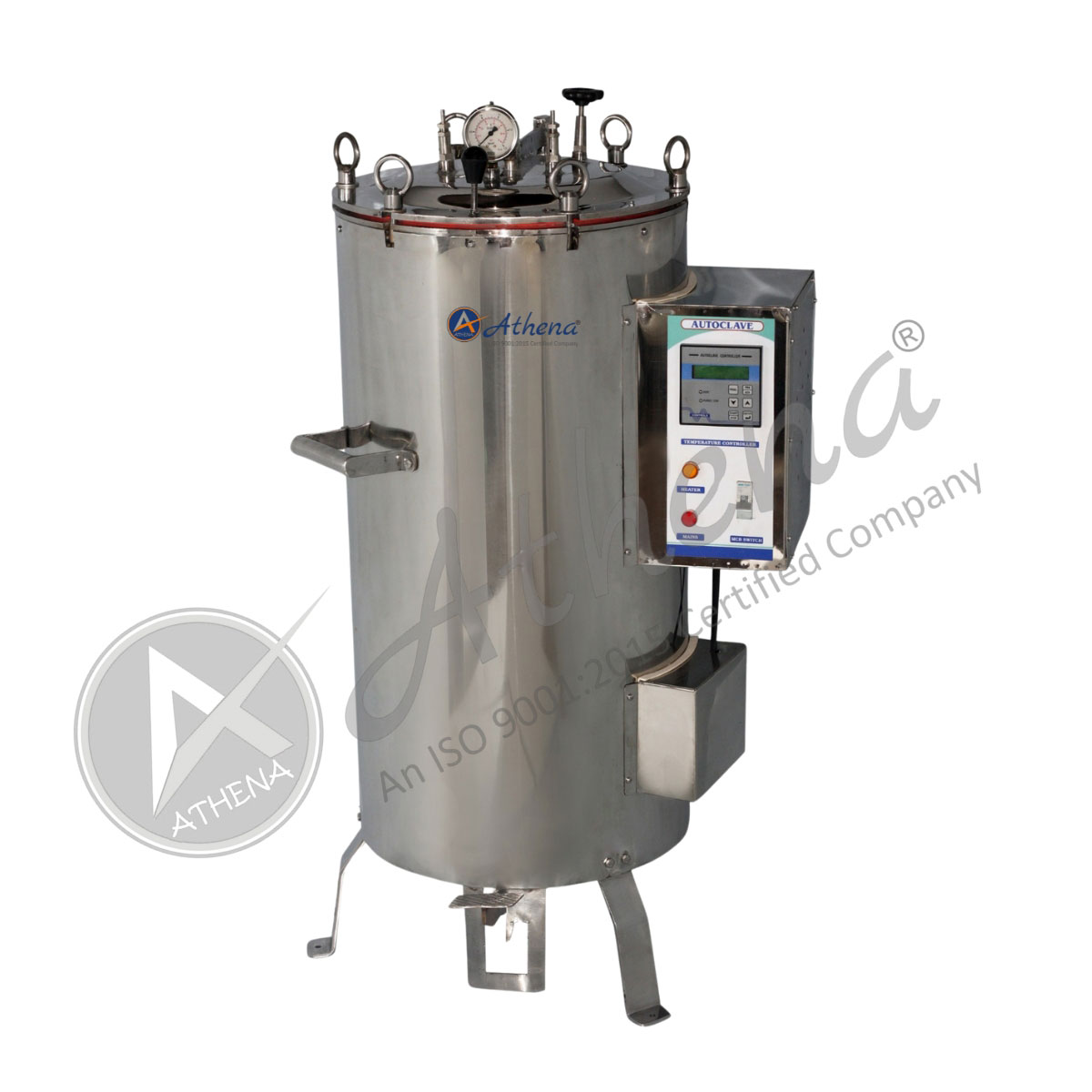

Fully Automatic Vertical Autoclave
Microprocessor-Controlled Steam Sterilizer for Laboratory, Clinical & Industrial Applications
Athena Instruments Pvt Ltd introduces the Fully Automatic Vertical Autoclave, a precision-engineered steam sterilizer designed for safe, efficient, and contamination-free sterilization. Manufactured from high-grade SS304 stainless steel and integrated with a microprocessor-based PID controller, this autoclave ensures reliable sterilization of glassware, culture media, surgical instruments, and biological waste.
Available in multiple chamber sizes and basket configurations, Athena’s vertical autoclaves are built for laboratories, hospitals, pharmaceutical QA/QC & R&D facilities, and waste treatment units, offering automation, safety, and repeatable performance under demanding conditions.
Key Features :
- High-Grade Construction: Double-walled SS304 stainless steel chamber (16 SWG), fully argon-welded for leak-proof integrity. Mirror-polished finish with air insulation ensures durability and thermal efficiency.
- Automated Sterilization Cycle: Complete cycle includes air purging, sterilization hold time, automatic pressure release, and end-of-cycle alarm. Controlled by a programmable microprocessor-based PID controller with user-set time and temperature.
- Thermal & Pressure Control:
- Temperature Range: 121°C to 125°C
- Pressure Range: 15–20 PSI (factory set at 15 PSI)
- Timer Range: 1–99 minutes
- Temperature Resolution: 0.1°C
- Sensor: PT-100
- Safety Assurance: Heavy-duty lid made from die-pressed SS plate, fitted with pressure gauge, steam release valve, spring-loaded safety valve, and validation port. A foot-operated lifting mechanism ensures operator safety and convenience.
- Integrated Protection: Low water level detection with heater cut-off and alarm prevents dry running. Industrial flange heaters ensure rapid and consistent steam generation.
- Accessories: Supplied with perforated SS304 basket(s) for efficient load handling.
Applications
Microbiology & Pathology Labs
Sterilization of media, Petri dishes, instruments, and glassware.
Pharmaceutical QA/QC & R&D
Sterile processing of containers, tools, and laboratory samples.
Hospitals &
Clinics
Autoclaving surgical instruments, gowns, dressings, and critical medical supplies.
Waste Treatment Facilities
Decontamination of infectious and biological waste.
Research Institutes
Reliable sterilization cycles for high-volume workflows.
Product Models & Specifications
|
Model Name |
Volume |
Chamber Size (Dia × Ht) |
Power Rating |
Baskets |
|---|---|---|---|---|
|
AT AUV-1 |
35 L |
12” Ø × 20” Ht |
2000 W |
1 |
|
AT AUV-2 |
35 L |
12” Ø × 20” Ht |
2000 W |
1 |
|
AT AUV-3 |
52 L |
14” Ø × 22” Ht |
3000 W |
1 |
|
AT AUV-4 |
90 L |
16” Ø × 24” Ht |
4000 W |
1 |
|
AT AUV-5 |
95 L |
18” Ø × 24” Ht |
4000 W |
1 |
|
AT AUV-6 |
120 L |
18” Ø × 30” Ht |
4500 W |
2 |
|
AT AUV-7 |
175 L |
22” Ø × 30” Ht |
5000 W |
2 |
|
AT AUV-8 |
200 L |
22” Ø × 36” Ht |
6000 W |
2 |
Additional Technical Highlights
Material of Construction
SS304 stainless steel (inner & outer shell), fully argon-welded and mirror polished.
Power Supply
230V AC, 50 Hz, Single Phase.
Validation Support
¼” BSP validation port included; IQ/OQ/PQ documentation and on-site validation available on request.
Heating System
Heavy-duty industrial flange heaters for durability and consistent performance.
Cycle Control
Programmable microprocessor controller with PID logic for precise sterilization.
Why Choose Athena’s Fully Automatic Vertical Autoclave?
Trusted Performance, Certified Quality
Athena Instruments Pvt Ltd is committed to delivering world-class laboratory and industrial solutions. Our Fully Automatic Vertical Autoclaves are trusted globally for their safety, reliability, and compliance with international standards, ensuring maximum confidence in sterilization processes across industries.
