Gas Manifold System

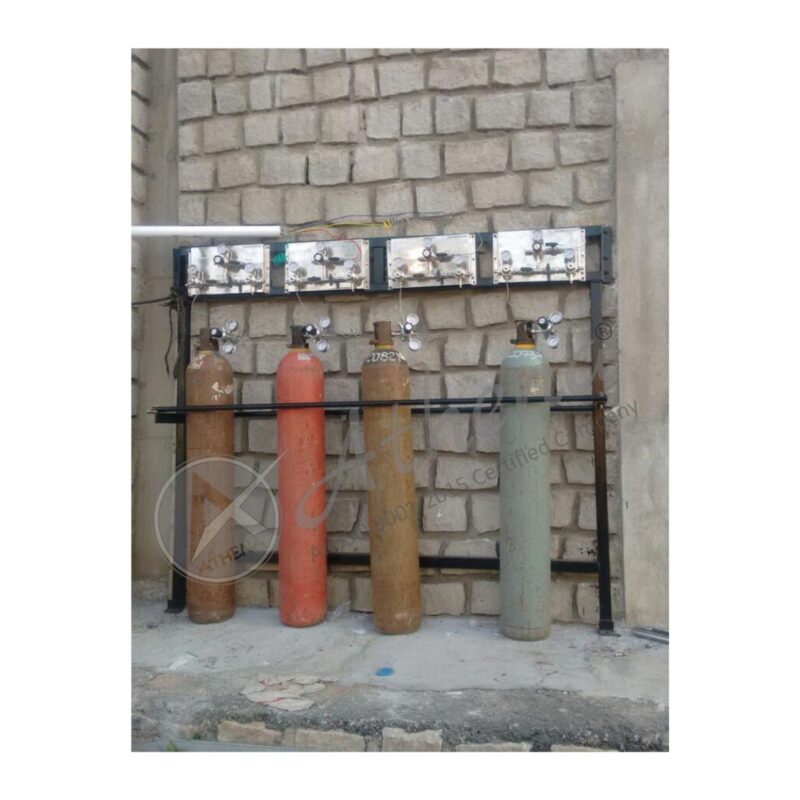

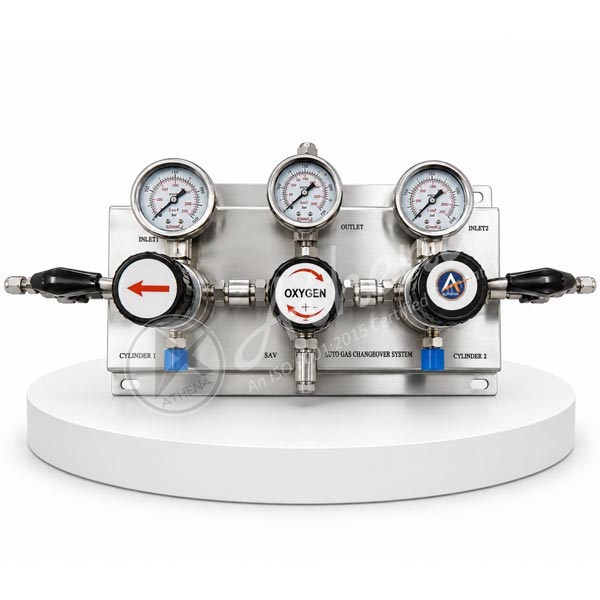

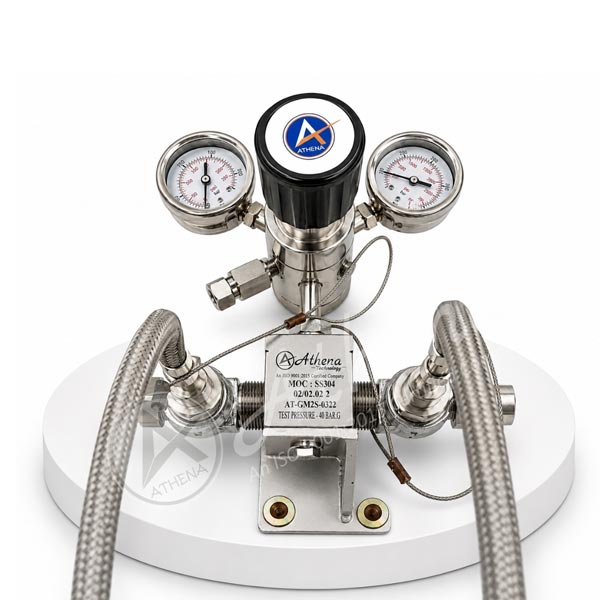

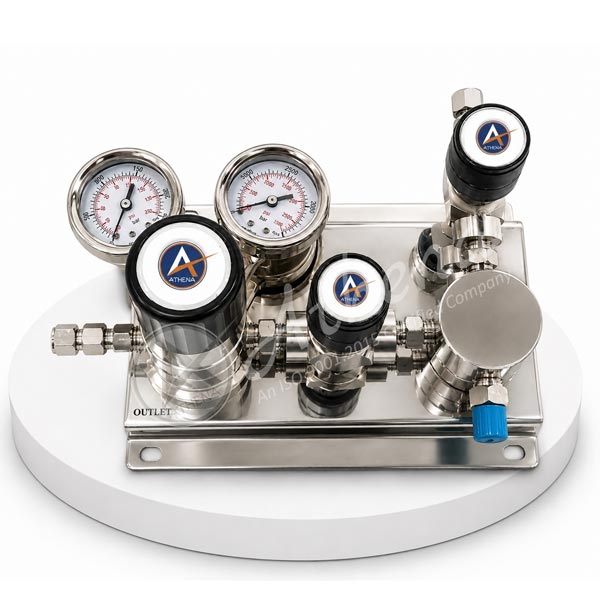

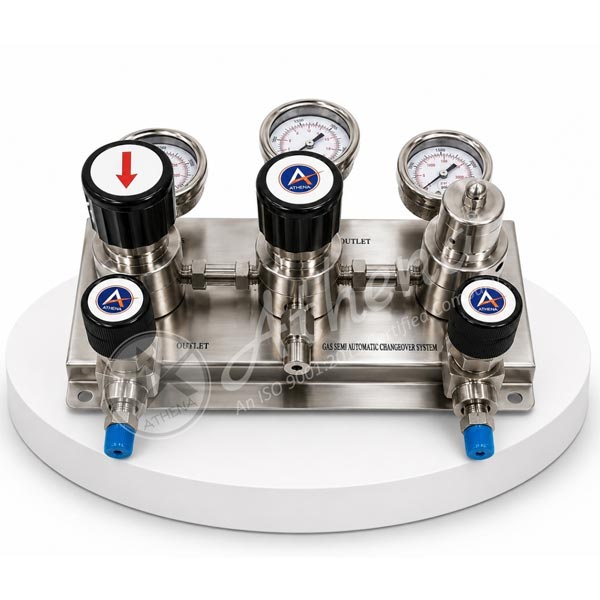

High-Pressure Automatic Gas Change Over Manifold
Athena Instruments introduces the Gas Manifold System, a robust and precision-engineered solution specifically designed to deliver uninterrupted, safe, and reliable gas supply by automatically/Manually switching between primary and reserve cylinders. Built with high-grade SS316/304 stainless steel or brass (chrome-plated), the system ensures exceptional durability, corrosion resistance, and leak-proof performance across industries including laboratories, industrial gas distribution, medical facilities, and research institutions.
Available in multiple configurations and pressure ratings, these manifold systems are extensively tested for pressure integrity and built to meet stringent safety and quality standards, providing dependable service for both inert and corrosive gas applications.
Key Features :
- High-Grade Construction: Fabricated from SS316 stainless steel or brass (chrome-plated) for superior corrosion resistance and long service life.
- Automatic Change Over: Intelligent mechanical design ensures seamless switching between primary and reserve cylinders without manual intervention.
- High Pressure Rated: Equipped with inlet gauges rated up to 210 kg/cm²; outlet pressure adjustable to match system requirements.
- Leak-Proof Integrity: Features precision-engineered ball valves and ferrule fittings for secure, gas-tight connections.
- Flexible Installation: Compact design with mounting dimensions of 500 mm (L) × 300 mm (H) × 45 mm (D) for easy wall installation.
- Versatile Variants: Available in manual, mechanical automatic, and electronic (digital) automatic models to suit diverse operational needs.
Applications
Laboratory Gas Supply
Reliable delivery of high-purity gases to analytical instruments, fume hoods, and controlled environments.
Industrial Processes
Continuous supply of process gases for manufacturing, welding, chemical production, and fabrication.
Calibration & Specialty Gases
Maintains stable delivery of specialty gas mixtures in QA/QC labs and analytical facilities.
R&D & Educational Labs
Supports experiments and training that demand consistent, automated gas flow.
Medical & Pharmaceutical Use
Safe, regulated distribution of medical gases in hospitals, biotech labs, and cleanrooms.
Environmental & Testing Facilities
Provides consistent gas flow for air quality monitoring, emission testing, and remote-site analysis.
Product Models & Specifications
| Model Variant | Configuration Options |
|---|---|
| Mechanical Automatic Change Over | High-pressure, electronics-free automatic switching |
| Electronic (Digital) Automatic | Low-pressure design with sensors and solenoid valves |
| Manual Manifold System | For single/multiple cylinders, in Brass or SS316 |
| Custom-Built Designs | Pressure settings, materials, and fittings as required |
Technical Highlights
- Inlet Pressure Gauges: 2 × 0–210 kg/cm²
- Outlet Pressure Gauge: 1 × 0–14 kg/cm² (customizable)
- Flow Rate: Up to 300 LPH
- Inlet Connection: ¼” BSP male to suit cylinder pigtails
- Outlet Connection: ¼” OD ferrule with precision ball valve
- Mounting Dimensions: 500 mm (L) × 300 mm (H) × 45 mm (D)
- Construction Materials: Brass (chrome-plated) or SS316 stainless steel
Additional Technical Highlights
Pressure Rating:
Designed for high-pressure cylinder systems; customizable to application requirements
Gas Compatibility:
Supports flammable, nonflammable, inert, and corrosive gases
Connection Types:
Compatible with BSP, NPT, Swagelok, and other standard fittings
Leak-Proof Design:
Precision-engineered valves and fittings ensure secure, reliable sealing
Variants Available:
Mechanical, electronic automatic, and manual configurations to meet diverse operational needs
Compliance:
Manufactured to meet rigorous quality standards and safety protocols
Why Choose Athena Instruments HPLC Column Oven?
Trusted Performance, Certified Quality
Athena’s Gas Manifold Systems are manufactured under stringent quality protocols to deliver safe, reliable service for critical gas distribution needs. Each unit is rigorously tested for pressure integrity and designed to meet industry standards, ensuring dependable performance and peace of mind in every application.
