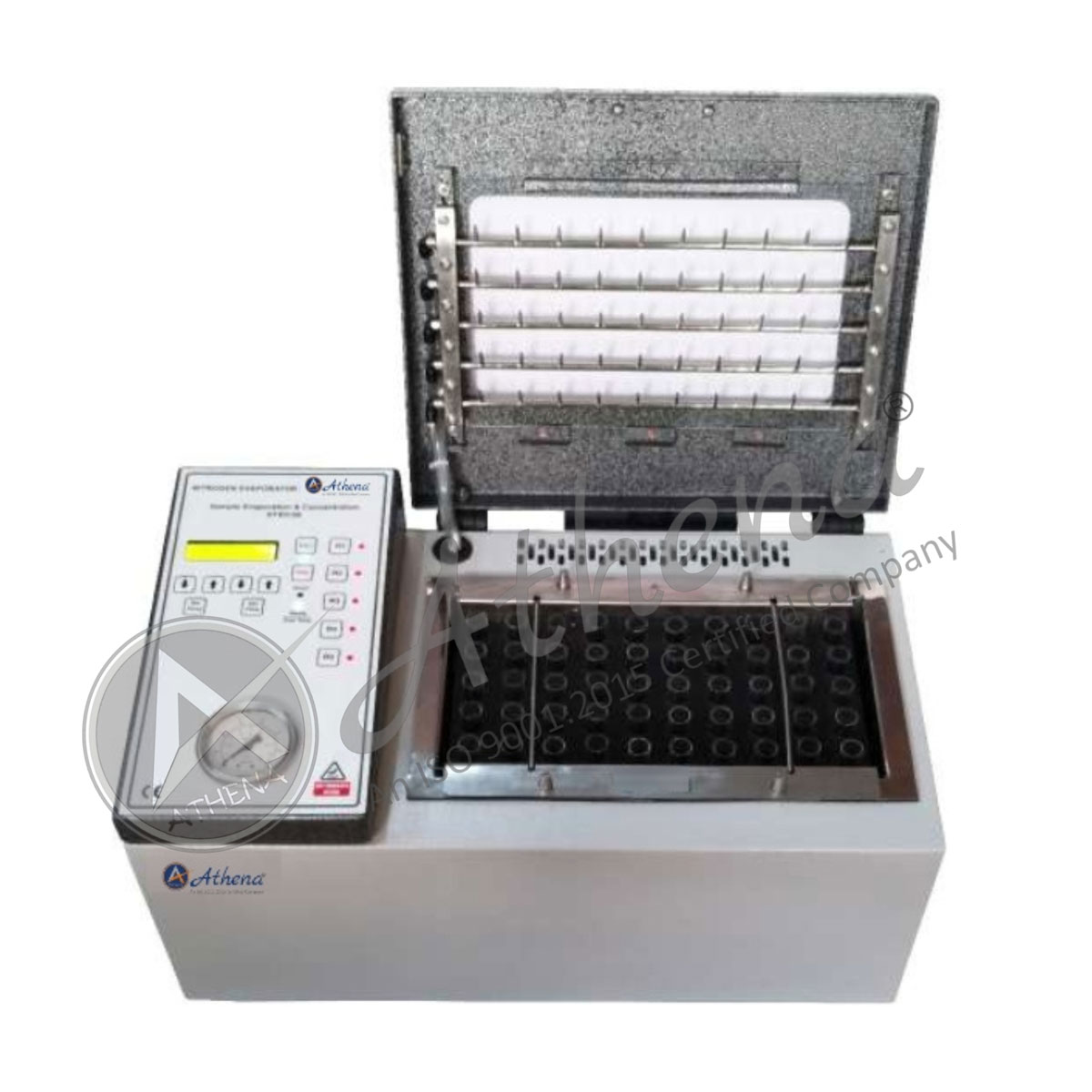

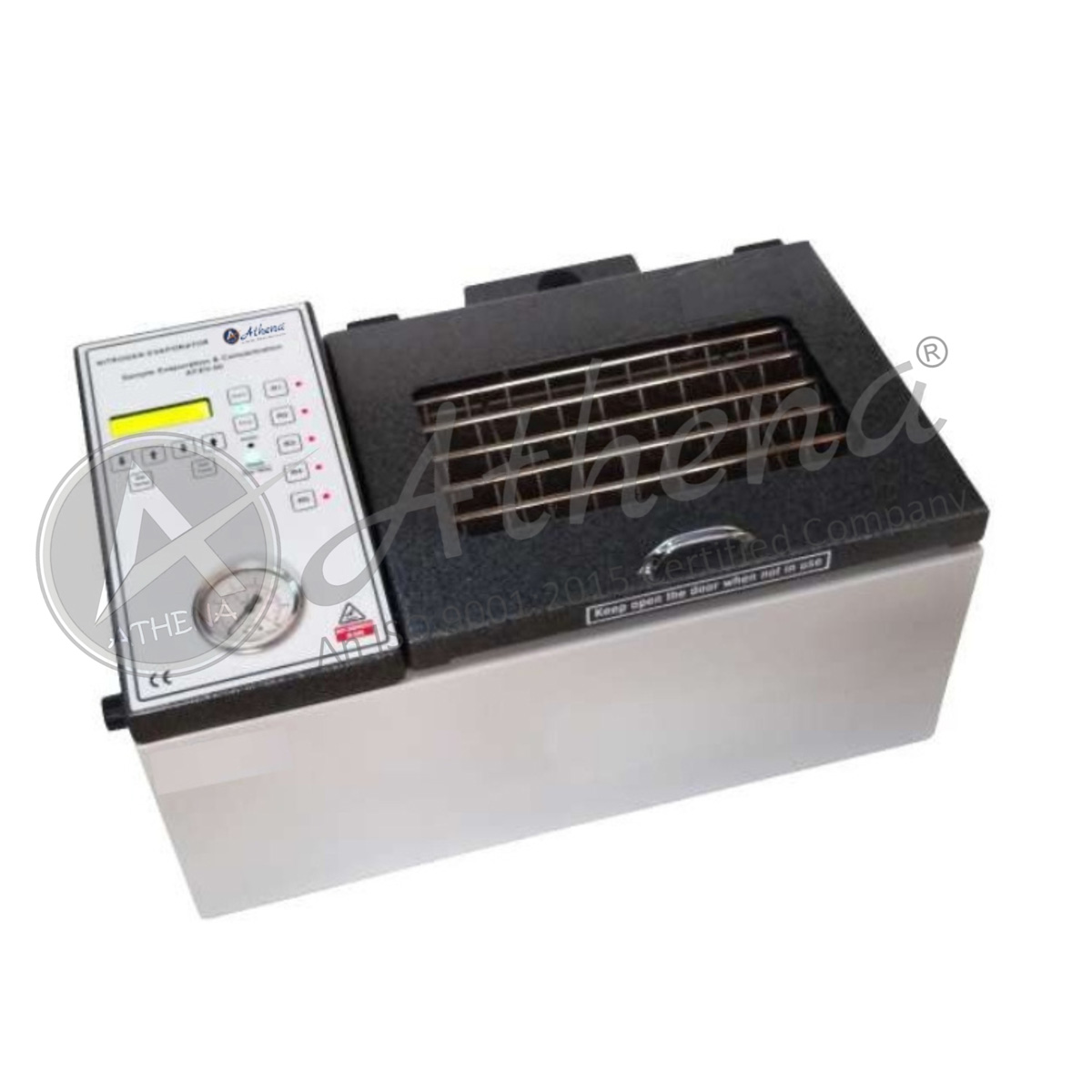

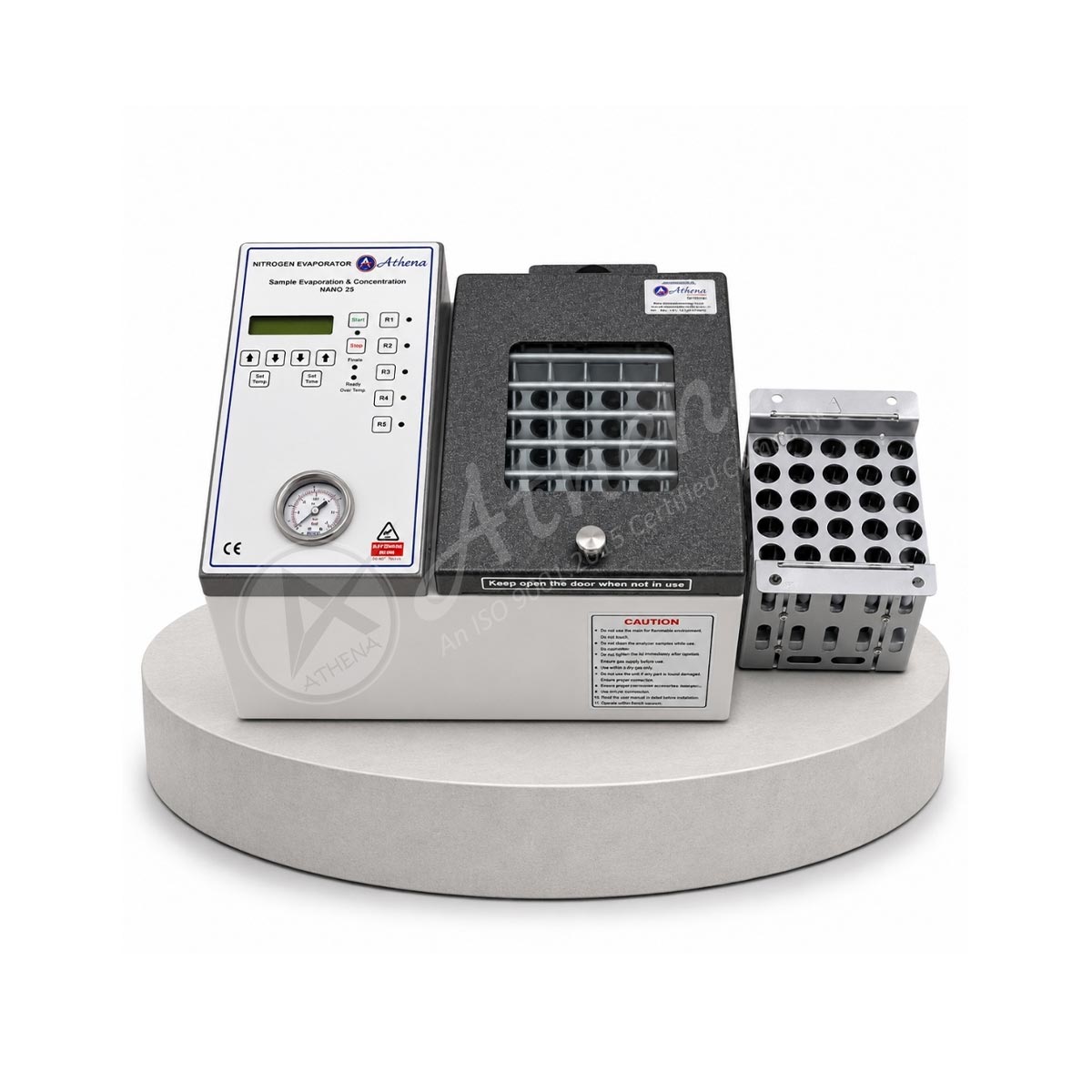

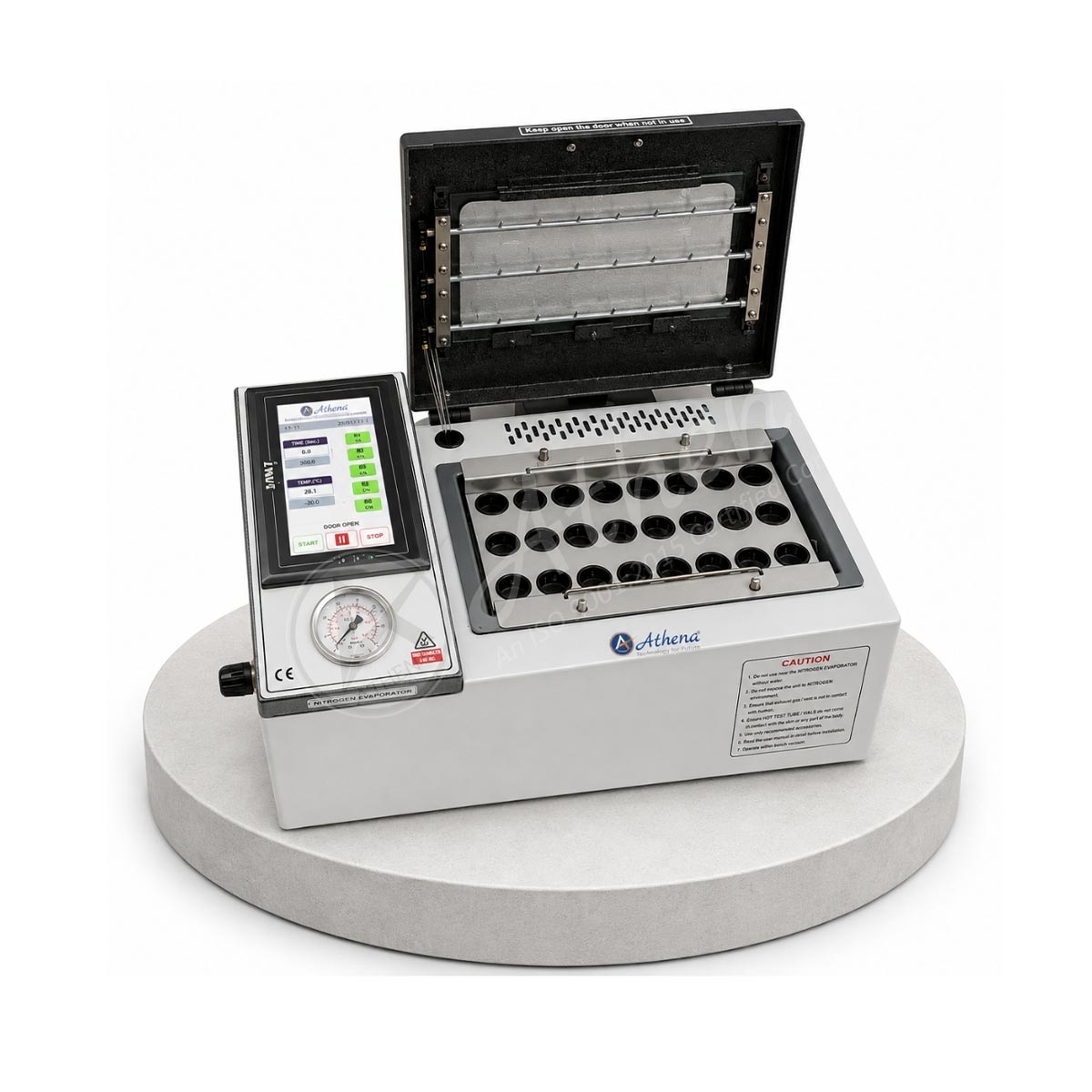

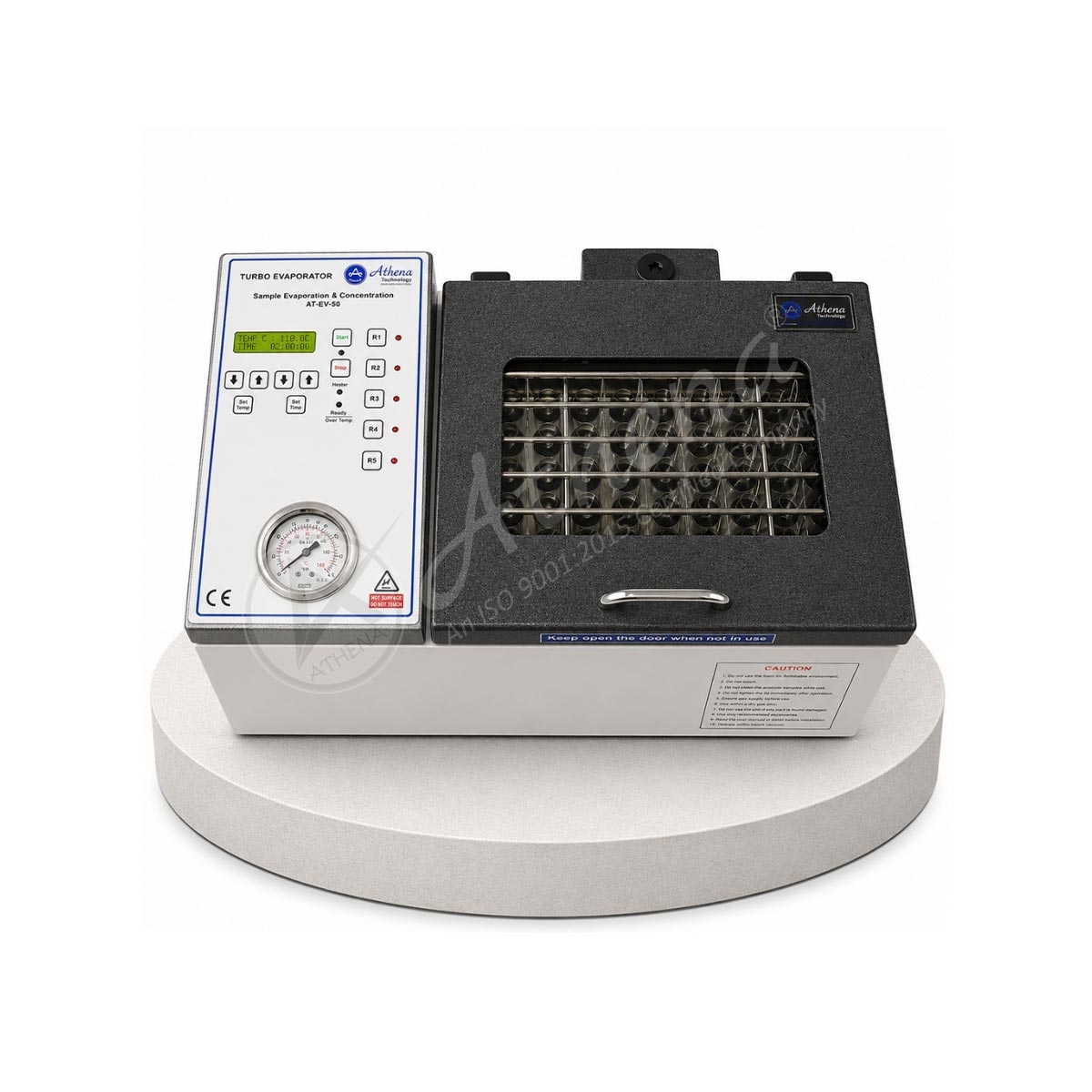

Dry Nitrogen Evaporator
Water-Free, Precision Solvent Evaporation System
Athena Instruments presents the Dry Nitrogen Evaporator Series—a high-performance, water-free solution for rapid and precise solvent evaporation. Engineered for laboratories focused on organic extracts, pharmaceuticals, and environmental analysis, these dry block evaporators combine microprocessor-controlled temperature regulation with efficient nitrogen blow-down technology.
Models AT-EV-25D, AT-EV-50D, and AT-EV-96D offer robust performance, accommodating up to 96 samples simultaneously. Designed for water-sensitive applications, the Dry Series eliminates contamination risks associated with water baths while maintaining high throughput and precision. CE certified, ISO 9001:2015 compliant, and EI approved, these evaporators are ideal for demanding laboratory environments.
Key Features :
- Dry Block Heating Technology: Delivers uniform heating without water, minimizing maintenance and contamination risk.
- High Sample Throughput: Supports 25, 50, or 96 simultaneous samples for optimized lab efficiency.
- Independent Nitrogen Control: Individual ON/OFF valves for selective evaporation and controlled nitrogen usage.
- Precision Microprocessor Control: Enables accurate settings for temperature, time, and nitrogen flow.
- Digital LCD Interface: User-friendly interface with real-time alerts for heater activity and system status.
- Durable Construction: Built with SS316 manifolds, powder-coated frame, and premium pneumatic fittings.

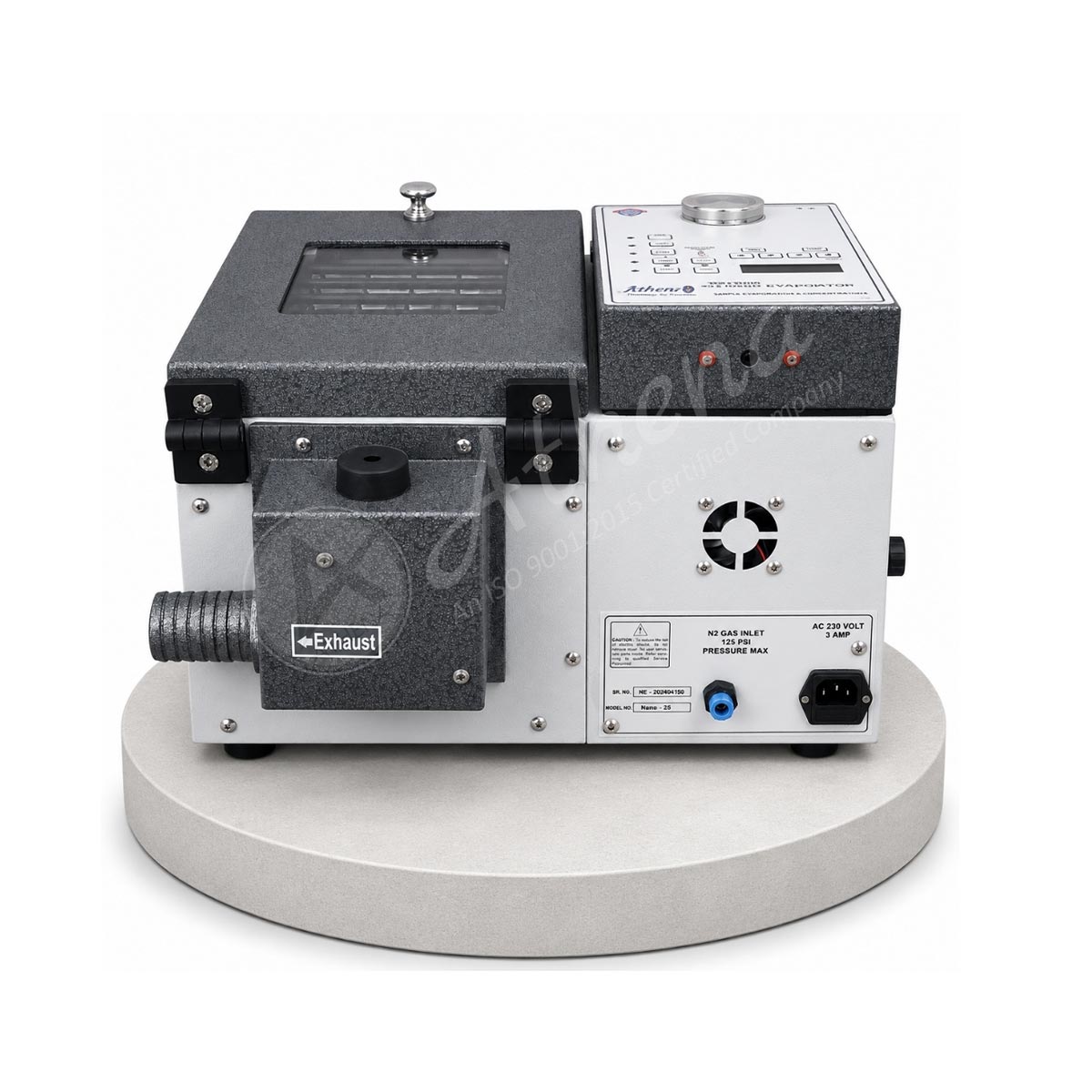

- Built-In Exhaust System: Integrated blower and hose safely remove solvent vapors from the workspace.
Applications
Pharmaceutical & Analytical Labs
Ideal for evaporation of organic solvents in drug formulation and QC testing.
Environmental
Testing
Used for solvent concentration in air, water, and soil sample preparation.
Forensic and Clinical Research
Reliable tool for SPE cleanup and volatile solvent removal from biological matrices.
Food & Beverage Safety
Removes solvents during sample prep for contaminants, pesticides, and additives.
Organic Compound Isolation
Dry block design ensures solvent purity and protects thermally sensitive analytes.
Product Models & Specifications
|
Model Name |
Sample Capacity |
Heating Type |
Temperature Range |
Nitrogen Valves |
LCD Timer Range |
LED Timer Range |
Dimensions (cm) |
Weight |
|---|---|---|---|---|---|---|---|---|
|
AT-EV-25D |
25 |
Dry Block |
Ambient – 150°C |
5 |
NA |
15 sec to 10 hours |
40 x 30 x 55 |
25 kg |
|
AT-EV-50D |
50 |
Dry Block |
Ambient – 150°C |
5 |
1 min to 99 min |
15 sec to 10 hours |
40 x 30 x 55 |
30 kg |
|
AT-EV-96D |
96 |
Dry Block |
Ambient – 150°C |
2 |
1 min to 99 min |
15 sec to 10 hours |
40 x 30 x 55 |
25 kg |
Additional Technical Highlights
Gas Regulator Range:
0–100 PSI
Power Supply:
230 V AC / 3A / 50 Hz
Pressure Gauge:
WIKA 0–100 PSI for precise monitoring
Error Alerts:
LED indicators with buzzer for fault detection
Sample Tube Compatibility:
12 mm to 20 mm OD, up to 150 mm length
Working Volume:
4 ml to 30 ml per tube
Solvent Recovery:
Enabled for efficient waste management
Nitrogen Consumption:
Approx. 0.06–0.1 CFM/nozzle (pressure-dependent)
Why Choose Athena Instruments Dry Nitrogen Evaporators?
Trusted Performance, Certified Quality
Athena’s AT-EV-25D, AT-EV-50D, and AT-EV-96D models are CE certified, ISO 9001:2015 compliant, and EI approved, ensuring strict adherence to international safety and performance standards. Trusted by labs worldwide, these dry nitrogen evaporators deliver unmatched reliability, process accuracy, and operational convenience.
