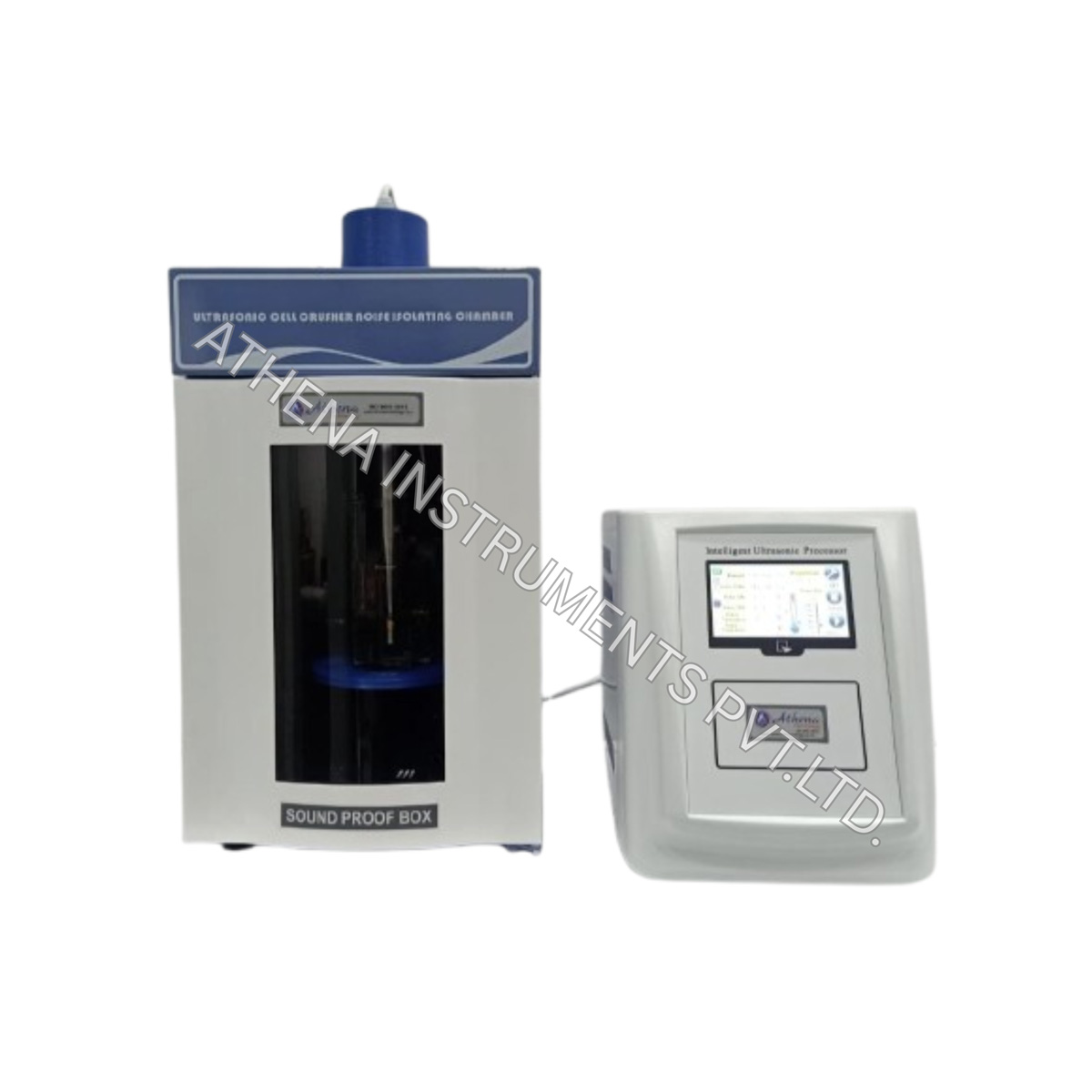

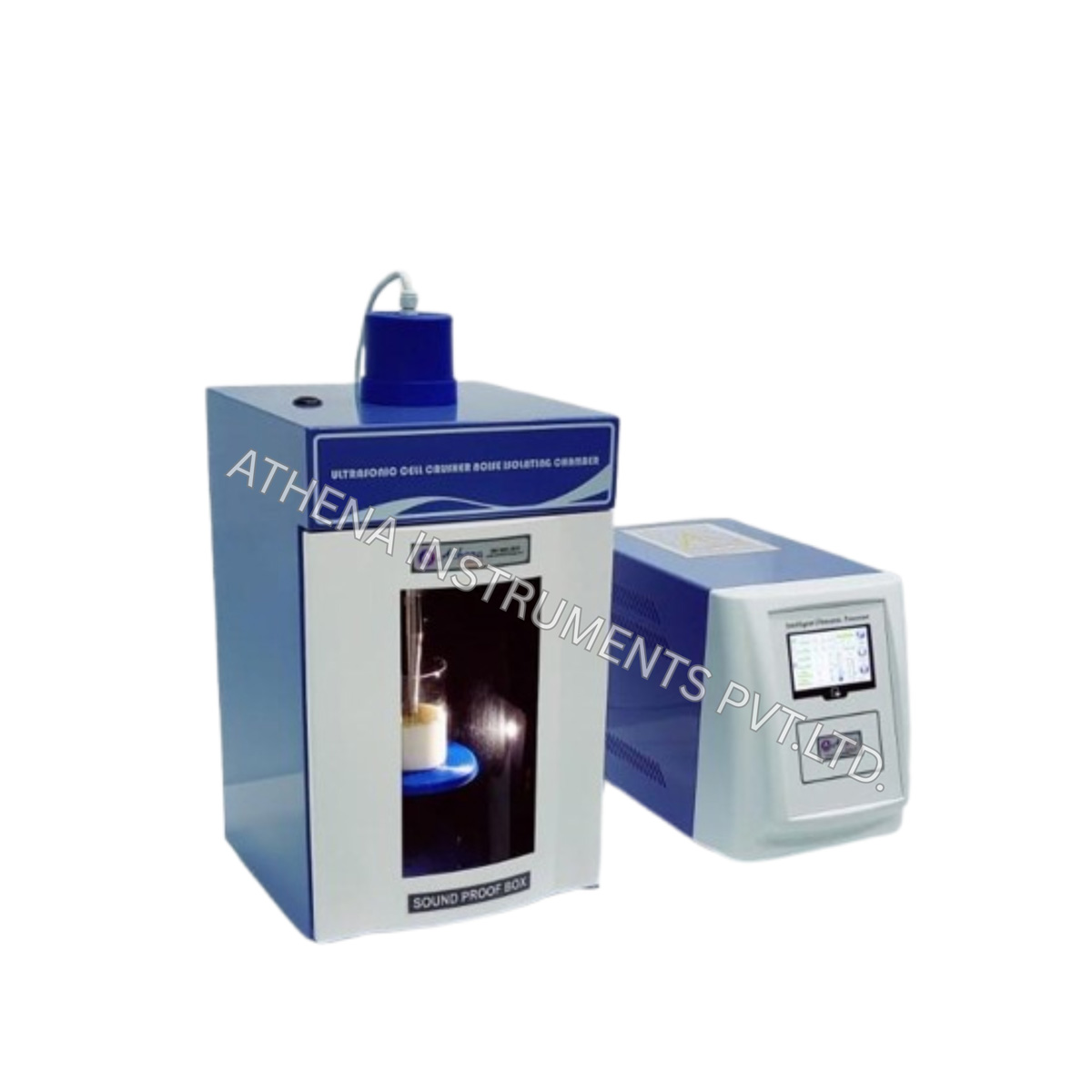

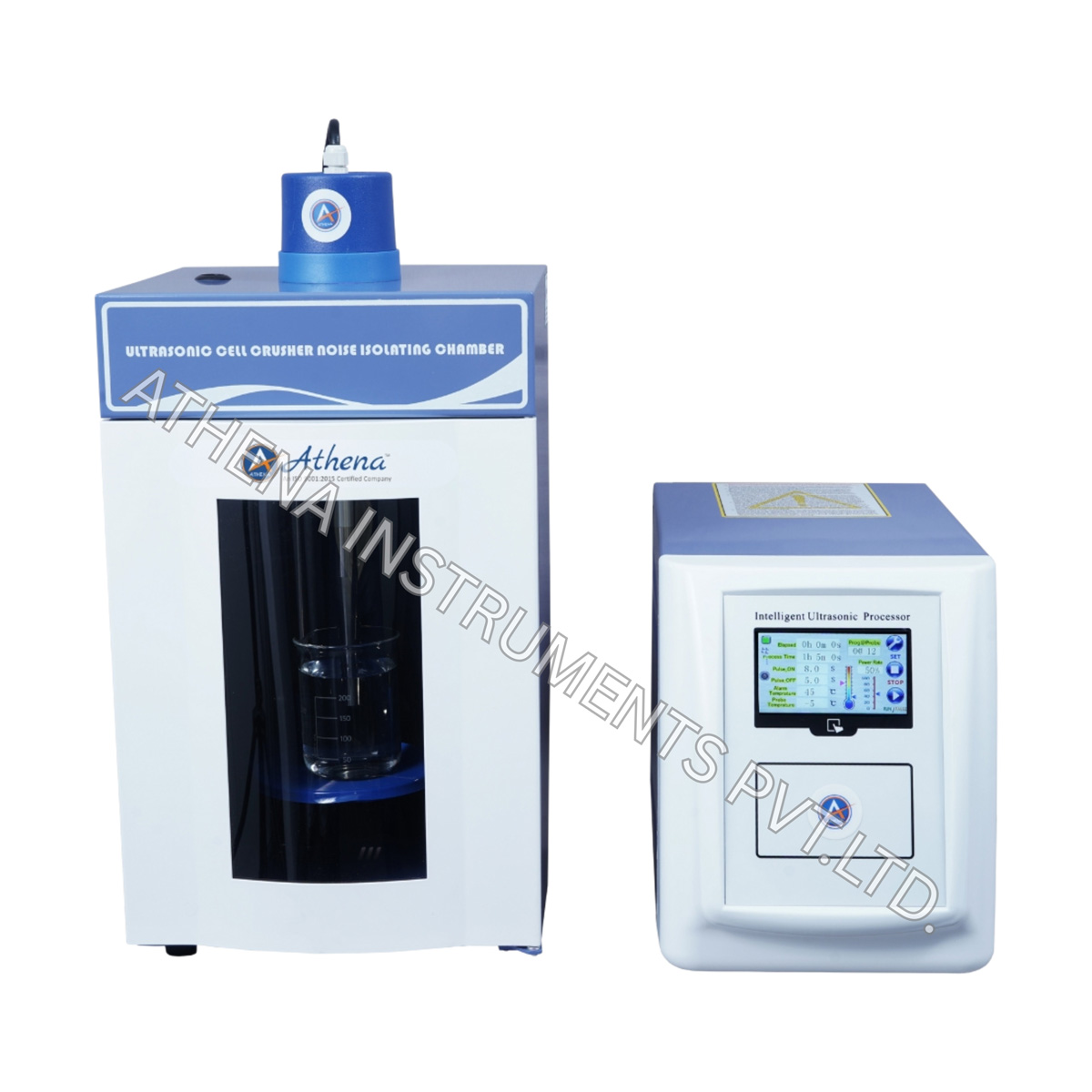

Ultrasonic Probe Sonicator – Standard Series
Athena Instruments presents the Ultrasonic Probe Sonicator, a powerful, microprocessor-controlled system designed for precision ultrasonic processing in research and industrial applications. Ideal for cell disruption, homogenization, nano-material dispersion, emulsification, and sample degassing, this versatile instrument delivers controlled cavitation energy for highly efficient results across biology, chemistry, and materials science domains.
Engineered for small to medium sample volumes (0.1 ml to 1500 ml), the ATP Series enables researchers to break cells, emulsify substances, accelerate chemical reactions, and disperse particles at the nanoscale. Its advanced control features and customizable probe sizes make it an indispensable tool in biotechnology, life sciences, pharmaceutical development, and analytical chemistry labs.
Product Models & Specifications
|
Model |
Ultrasonic Frequency (KHz) | Max. Power (W) | Probe Sizes Included (mm) | Optional Probe Sizes (mm) | Capacity per Cycle (ml) |
|---|---|---|---|---|---|
| ATP-500 |
20–25 |
500 | 6 | 2, 3, 6, 10, 12 | 0.5 – 500 |
| ATP-650 | 20–25 | 650 | 6 | 2, 3, 6, 10, 12 | 0.5 – 600 |
| ATP-750 | 20–25 | 750 | 6 | 6, 10, 12, 15 | 0.5 – 700 |
| ATP-900 | 20–25 | 900 | 6 | 6, 10, 12, 15 | 0.5 – 1000 |
|
ATP-1000 |
20–25 | 1000 | 12 | 6, 10, 12, 15 | 0.5 – 1200 |
| ATP-1200 | 20–25 | 1200 | 15 | 6,10, 15, 20,22, 25 | 20 – 1500 |
| ATP-1800 | 20–25 | 1800 | 22 | 6,10, 15,20, 22, 25 | 20 – 2000 |
| ATP-2000 | 20–25 | 2000 | 25 | 10, 15, 22, 25, 28 | 20 – 2000 |
Key Features
Microprocessor-Controlled Ultrasonic
Delivers stable ultrasonic frequency and real-time process regulation for consistent results across diverse applications.
Customizable Amplitude Probes
Offers a wide range of probe diameters (2 mm to 25 mm) to support both micro-volume and larger batch processing with high efficiency.
Large Touchscreen Interface
TFT display for intuitive parameter setting and status monitoring, including time, power, and temperature.
Noise Reduction System
Includes a soundproof box for safe and quiet operation, minimizing acoustic exposure in laboratory environments.
Precision Power Control
Adjustable output power from 1% to 99.9%, enabling gentle or aggressive sonication for sensitive or demanding applications.
Advanced Safety and Alerts
Built-in temperature sensors, malfunction alarms, and protective casing ensure operator safety and equipment longevity.
Applications
Cell Disruption
Efficiently lyses animal cells, plant cells, bacteria, spores, and tissues for downstream analysis or protein extraction.
Nano-Particle Dispersion
Achieves uniform dispersion of nanomaterials, rare earths, and inorganic substances for formulation or R&D purposes.
Chemical Reaction Acceleration
Enhances kinetics in chemical, physical, and biological reactions, improving throughput and yield.
Herbal Extraction
Widely adopted in 420 applications for plant-based extraction with high yield and minimal solvent use.
Oil & Emulsion Studies
Facilitates crude oil dilution, emulsification, and homogenization in energy and environmental labs.
Degassing and Defoaming
Removes trapped gases in liquids quickly and efficiently before analytical testing or processing.
Additional Technical Highlights
Power Output Range
0–2000 W, depending on model
Power Adjustment
Fine-tunable from 1–99.9% for controlled sonication
Temperature Control
Integrated temperature indicators and automatic protection
Soundproof Enclosure
Included for all models to reduce noise pollution
Display
Large TFT touchscreen with real-time process visualization
Construction
Anti-corrosive, lab-grade materials ensure durability and hygiene
Voltage Requirement
230 V AC / 50 Hz
Why Choose Athena’s Ultrasonic Probe Sonicator – Small Series?
Trusted Performance, Certified Quality
The Ultrasonic Probe Sonicator models are CE certified, ISO 9001:2015 compliant, and manufactured under stringent quality protocols — underscoring Athena Instruments’ commitment to delivering safe, high-performance, and reliable solutions for research and industrial applications.
