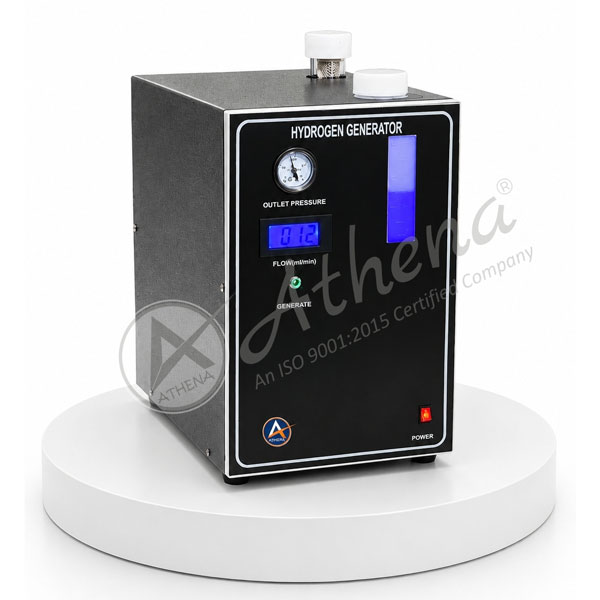

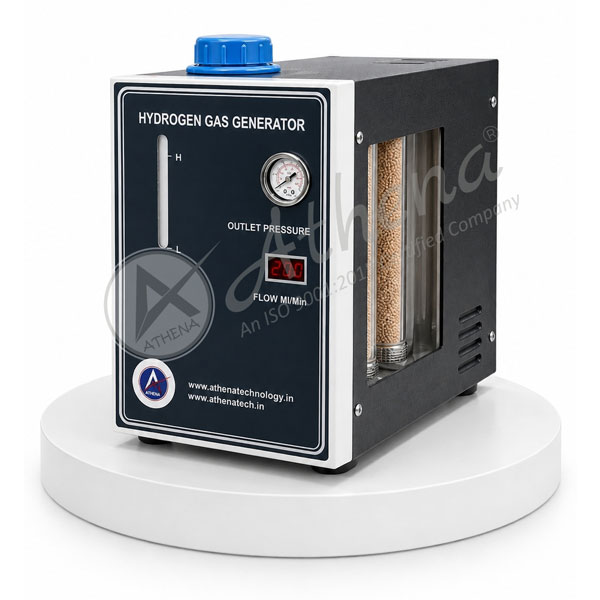

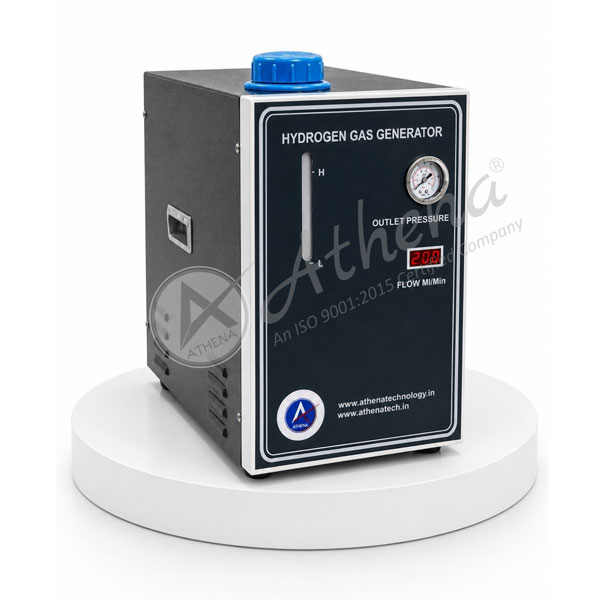

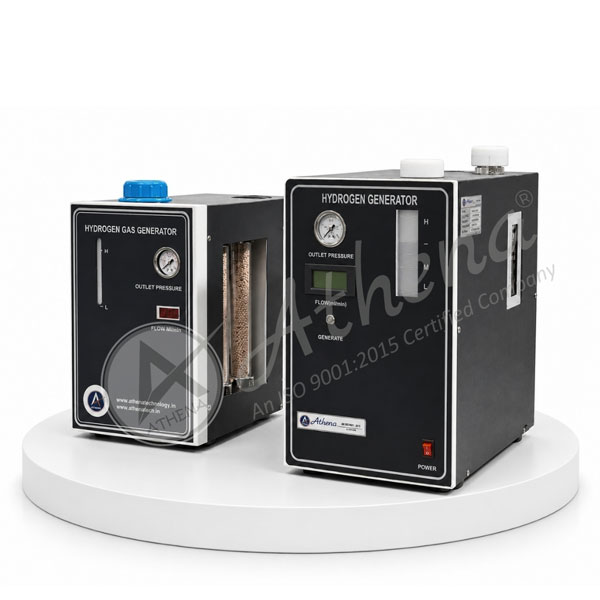

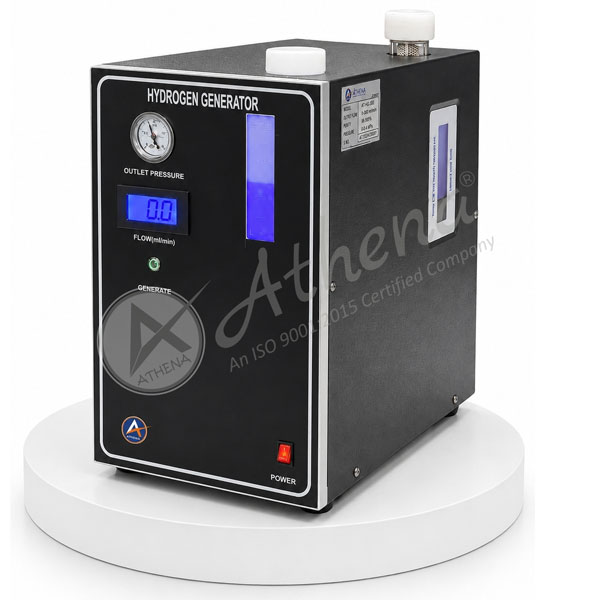

Hydrogen Gas Generator (PEM)
Proton Exchange Membrane Hydrogen Generation System
Athena Instruments introduces the Hydrogen Gas Generator (PEM Series), a robust and precision-engineered hydrogen generation system specifically designed for the continuous on-site production of ultra-high purity hydrogen gas for laboratory and analytical applications. Built using advanced Proton Exchange Membrane (PEM) Technology, our hydrogen generators efficiently electrolyze pure deionized water to produce hydrogen without the use of alkaline electrolytes, ensuring clean, safe, and environmentally friendly operation. The system incorporates a high-performance PEM electrolysis cell, advanced gas purification system, automatic moisture removal, and intelligent process control to deliver hydrogen with exceptional purity and stable pressure for Gas Chromatography (GC), analytical laboratories, research institutions, pharmaceutical industries, and other scientific applications requiring a reliable hydrogen supply.
Available in multiple flow capacities to suit various laboratory requirements, these generators are extensively tested for continuous operation and manufactured using premium components including 100% Titanium Electrolysis Cells, DuPont™ N117 Proton Exchange Membranes, and high-efficiency platinum catalyst technology for superior electrolysis performance. Designed to eliminate dependence on conventional hydrogen cylinders, the PEM Series provides hydrogen with purity up to 99.9999%, while offering low maintenance, high efficiency, and long service life. Athena Hydrogen Gas Generators comply with international quality standards, including CE, ISO 9001:2015, and FDA, ensuring dependable performance, operational safety, and consistent hydrogen generation for laboratory and industrial applications.
Product Models & Specifications
|
Model |
Hydrogen Flow Rate |
Hydrogen Purity |
Delivery Pressure |
Technology |
|---|---|---|---|---|
| ATHH-300 |
300 ml/min |
Up to 99.9999% | As per model | PEM |
| ATHH-600 | 600 ml/min | Up to 99.9999% | As per model | PEM |
| ATHH-1000 | 1000 ml/min | Up to 99.9999% | As per model | PEM |
| ATHH-2000 | 2000 ml/min | Up to 99.9999% | As per model | PEM |
| ATHH-4000 | 4000 ml/min | Up to 99.9999% | As per model | PEM |
- Note: Higher hydrogen flow capacities, customized outlet pressures, integrated air compressor options, and laboratory-specific configurations are available on request.
Key Features
Advanced PEM Technology
Built using Proton Exchange Membrane (PEM) technology with high-performance electrolysis cells for efficient hydrogen generation using pure deionized water without alkaline electrolytes.
Ultra-High Purity Hydrogen
Produces hydrogen with purity up to 99.9999%, making it suitable for Gas Chromatography, analytical instruments, mass spectrometry, and laboratory applications requiring ultra-high purity gas.
Premium Cell Construction
Equipped with 100% Titanium Electrolysis Cells, DuPont™ N117 PEM Membrane , and platinum catalyst technology for high electrolysis efficiency, stable performance, and extended service life.
Automatic Purification System
Incorporates advanced gas purification and automatic moisture removal systems to deliver clean, dry hydrogen with stable outlet pressure and continuous operation.
Environment-Friendly Operation
Operates using pure deionized water without alkaline chemicals, providing clean operation, reduced maintenance, and improved laboratory safety.
Certifications
CE certified, ISO 9001:2015 compliant, FDA approved, and manufactured under stringent quality management systems for reliable laboratory and industrial operation.
Applications
Gas Chromatography
Reliable hydrogen supply for GC-FID, GC-FPD, GC-NPD, GC-TCD, GC-ELCD, and other gas chromatography systems requiring carrier gas or fuel gas.
Analytical Laboratories
Ideal for analytical instruments, laboratory hydrogen generation, research laboratories, and quality control laboratories requiring continuous ultra-high purity hydrogen.
Mass Spectrometry & Scientific Research
Suitable for ELCD, AED, mass spectrometry, scientific research laboratories, and advanced analytical applications.
Pharmaceutical & Biotechnology
Provides high-purity hydrogen for pharmaceutical laboratories, biotechnology research, and quality assurance laboratories.
Industrial & Research Applications
Designed for universities, research institutes, environmental laboratories, and industrial analytical applications requiring reliable hydrogen generation.
Additional Technical Highlights
Technology
Advanced Proton Exchange Membrane (PEM) electrolysis technology using pure deionized water without alkaline electrolyte.
Cell Construction
High-performance 100% Titanium Electrolysis Cell with DuPont™ N117 PEM Membrane and platinum catalyst for efficient hydrogen production.
Hydrogen Purity
Produces hydrogen with purity up to 99.9999% , suitable for analytical laboratories and precision scientific instruments.
Water Requirement
Operates using pure deionized water, eliminating the need for potassium hydroxide (KOH) or other alkaline chemicals.
Gas Purification
Integrated purification and automatic moisture removal system ensures clean, dry hydrogen with stable outlet pressure.
System Design
Compact bench-top construction with automatic operation, low maintenance, energy-efficient performance, and long operating life.
Compliance
CE certified, ISO 9001:2015 compliant, FDA approved, and manufactured in accordance with international quality standards for hydrogen generation systems.
Why Choose Athena's Hydrogen Gas Generator (PEM Series)?
Trusted Performance, Certified Quality
Athena’s Hydrogen Gas Generators (PEM Series) are CE certified, ISO 9001:2015 compliant, and manufactured under stringent in-house quality protocols, delivering reliable on-site hydrogen generation with ultra-high purity, dependable performance, and international safety and quality assurance for laboratory and analytical applications.
