Products

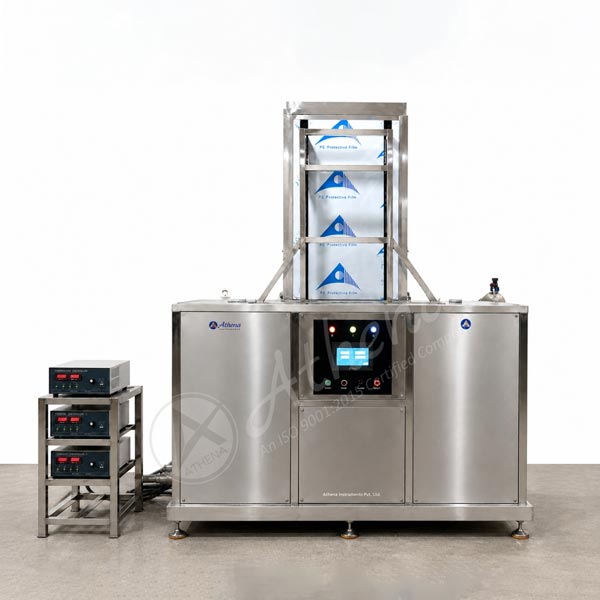

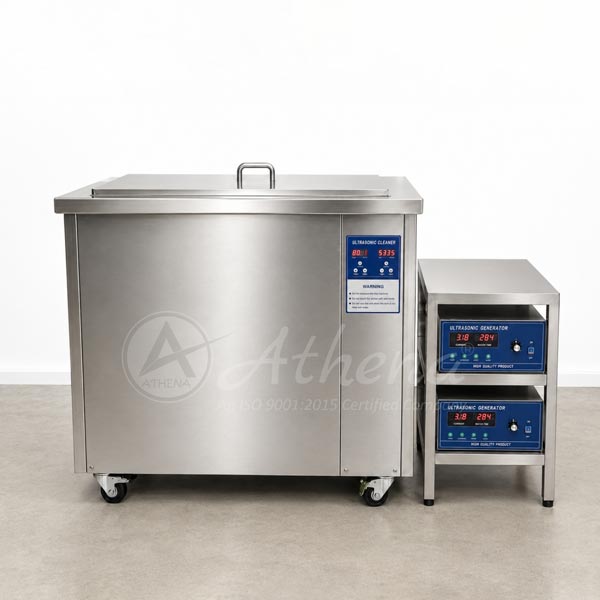

Industrial Ultrasonic Cleaner

High-Power & Large-Capacity Single-Tank Ultrasonic Cleaning Machine

Athena Instruments introduces the Industrial Ultrasonic Cleaner – ATUC Series, a robust and high-performance ultrasonic cleaning system specifically designed for efficient and uniform cleaning of industrial components, mechanical parts, electronic components, precision parts, and other contaminated workpieces. Built with 2.5T SUS304 TIG-welded construction and industrial high-Q ultrasonic transducers, these cleaners provide concentrated ultrasonic energy and durable performance for demanding industrial cleaning applications.

Available in multiple capacities from 38 L to 1500 L, the ATUC Series operates at 28/40 kHz with adjustable ultrasonic power, a 1–99 minute timer, and temperature control from room temperature to 80°C. Equipped with MCU-SWEEP frequency-drive technology, frequency sweeping, recirculating filtration, adjustable power, and memory function, the system provides flexible and consistent cleaning performance according to the type and level of contamination.

Request a Quote

Product Models & Specifications

Model

 Capacity Tank Size (mm) Frequency Timer Temperature Transducers Ultrasonic Power Heating Power Voltage
ATUC-38ST 38 L 500 × 300 × 250 28/40 kHz 1–99 min

Room temp.–80°C

 12 0–600 W 1.5 kW 220 V
ATUC-61ST 61 L 500 × 350 × 350 28/40 kHz 1–99 min Room temp.–80°C 18 0–900 W 1.5 kW 220 V
ATUC-88ST 88 L 550 × 400 × 400 28/40 kHz 1–99 min Room temp.–80°C 24 0–1200 W 3 kW 220 V
ATUC-108ST 108 L 600 × 450 × 400 28/40 kHz 1–99 min Room temp.–80°C 30 0–1500 W 4.5 kW 220 V
ATUC-96ST 96 L 800 × 300 × 400 28/40 kHz 1–99 min

Room temp.–80°C

 30 0–1500 W 4.5 kW 220 V

ATUC-135ST

 135 L 600 × 500 × 450 28/40 kHz 1–99 min Room temp.–80°C 36 0–1800 W 4.5 kW 380 V
ATUC-175ST 175 L 700 × 500 × 500 28/40 kHz 1–99 min Room temp.–80°C 48 0–2400 W 6 kW 380 V
ATUC-264ST 264 L 800 × 600 × 550 28/40 kHz 1–99 min Room temp.–80°C 60 0–3000 W 6 kW 380 V
ATUC-360ST

360 L

 1000 × 600 × 600 28/40 kHz 1–99 min Room temp.–80°C

72

 0–3600 W 9 kW 380 V
ATUC-420ST 420 L 1000 × 700 × 600 28/40 kHz 1–99 min Room temp.–80°C 84 0–4200 W 15 kW 380 V
ATUC-480ST 480 L 1000 × 800 × 600 28/40 kHz 1–99 min Room temp.–80°C 96 0–4800 W 15 kW 380 V
ATUC-540ST 540 L 1000 × 900 × 600 28/40 kHz 1–99 min Room temp.–80°C 108 0–5400 W 18 kW

380 V
ATUC-640ST 640 L 1000 × 800 × 800 28/40 kHz

1–99 min

Room temp.–80°C

 120 0–6000 W 21 kW

380 V
ATUC-800ST 800 L

1000 × 1000 × 800

 28/40 kHz

1–99 min

Room temp.–80°C

 132 0–6600 W 24 kW

380 V
ATUC-960ST 960 L 1200 × 1000 × 800 28/40 kHz

1–99 min

Room temp.–80°C

 144 0–7200 W 27 kW

380 V
ATUC-1500ST 1500 L 1500 × 1000 × 1000 28/40 kHz

1–99 min

Room temp.–80°C

 216 0–10800 W 36 kW

380 V
  • The model and specification values above follow the catalogue table, including the ATUC-96ST model and its separate 96 L configuration.

Key Features

Robust Tank Construction
Manufactured using 2.5T SUS304 TIG-welded construction for a strong and heat-resistant cleaning tank.
Industrial High-Q Transducers
Concentrated ultrasonic energy provides efficient cleaning and higher cleaning conversion.
MCU-SWEEP Technology
Frequency-drive technology produces more uniform and powerful ultrasonic cleaning.
Adjustable Ultrasonic Power
Cleaning power can be adjusted according to the level of dirt on the workpiece.
Recirculating Filtration
Helps remove oil stains and contaminants more thoroughly from the cleaning solution.
Frequency Sweeping
Simulates ultrasonic vibration across the cleaning range to enhance cleaning effectiveness.
Memory Function
Retains the selected time setting for convenient repeated cleaning operations.

Applications

Automotive Components
Cleaning of automotive parts and components contaminated with oil, grease, and dirt.
Electronic Components
Suitable for cleaning electronic components and main boards.
Mechanical & Hardware Parts
Effective for cleaning machined parts, hardware, and mechanical components.
Precision Components
Suitable for precision-manufactured parts requiring thorough and uniform cleaning.
Industrial Components
Designed for cleaning a wide range of components used in demanding industrial environments.
Complex Parts
Suitable for components with intricate surfaces and areas that are difficult to clean using conventional methods.

Additional Technical Highlights

check-mark

Ultrasonic Frequency

Dual-frequency operation at 28/40 kHz for flexible industrial cleaning.

check-mark

Ultrasonic Power

Adjustable power according to the contamination level and cleaning requirement.

check-mark

Temperature Control

Operating temperature from room temperature to 80°C.

check-mark

Timer Control

Programmable cleaning time from 1–99 minutes.

check-mark

Filtration System

Recirculating filtration helps improve removal of oil stains and contaminants.

check-mark

Frequency Drive

MCU-SWEEP generator technology provides more uniform and powerful ultrasonic cleaning.

check-mark

Memory Function

Retains the selected time setting to simplify repeated cleaning operations.

check-mark

Tank Material

2.5T SUS304 construction with TIG-welded inner tank bottom for strength and heat resistance.

Why Choose Athena's Industrial Ultrasonic Cleaner?

Powerful Cleaning Performance

Industrial high-Q transducers provide concentrated ultrasonic energy for effective cleaning.

Wide Capacity Range

Available from 38 L to 1500 L to accommodate different component sizes and cleaning requirements.

Flexible Cleaning Control

Adjustable ultrasonic power allows cleaning intensity to be matched to the level of contamination.

Enhanced Cleaning Uniformity

MCU-SWEEP frequency-drive and frequency-sweeping technology support consistent ultrasonic cleaning.

Effective Oil Removal

Recirculating filtration helps remove oil contamination from the cleaning solution.

Durable Construction

2.5T SUS304 TIG-welded construction provides a strong and heat-resistant tank.

Industrial Versatility

Suitable for automotive, electronic, mechanical, hardware, precision, and other industrial components.

Technical Support

Supported by Athena's technical team for application requirements and customized industrial cleaning solutions.

Trusted Performance, Certified Quality

Athena Instruments’ ATUC Series Industrial Ultrasonic Cleaners are designed with robust SUS304 construction, industrial high-Q ultrasonic transducers, MCU-SWEEP frequency-drive technology, adjustable ultrasonic power, frequency sweeping, and recirculating filtration. With capacities ranging from 38 L to 1500 L, the series provides reliable and scalable ultrasonic cleaning solutions for industrial component-cleaning applications. The manufacturing process includes full-load operation, temperature cycling, vibration testing, and calibration of key parameters as part of the stated quality-assurance process.
