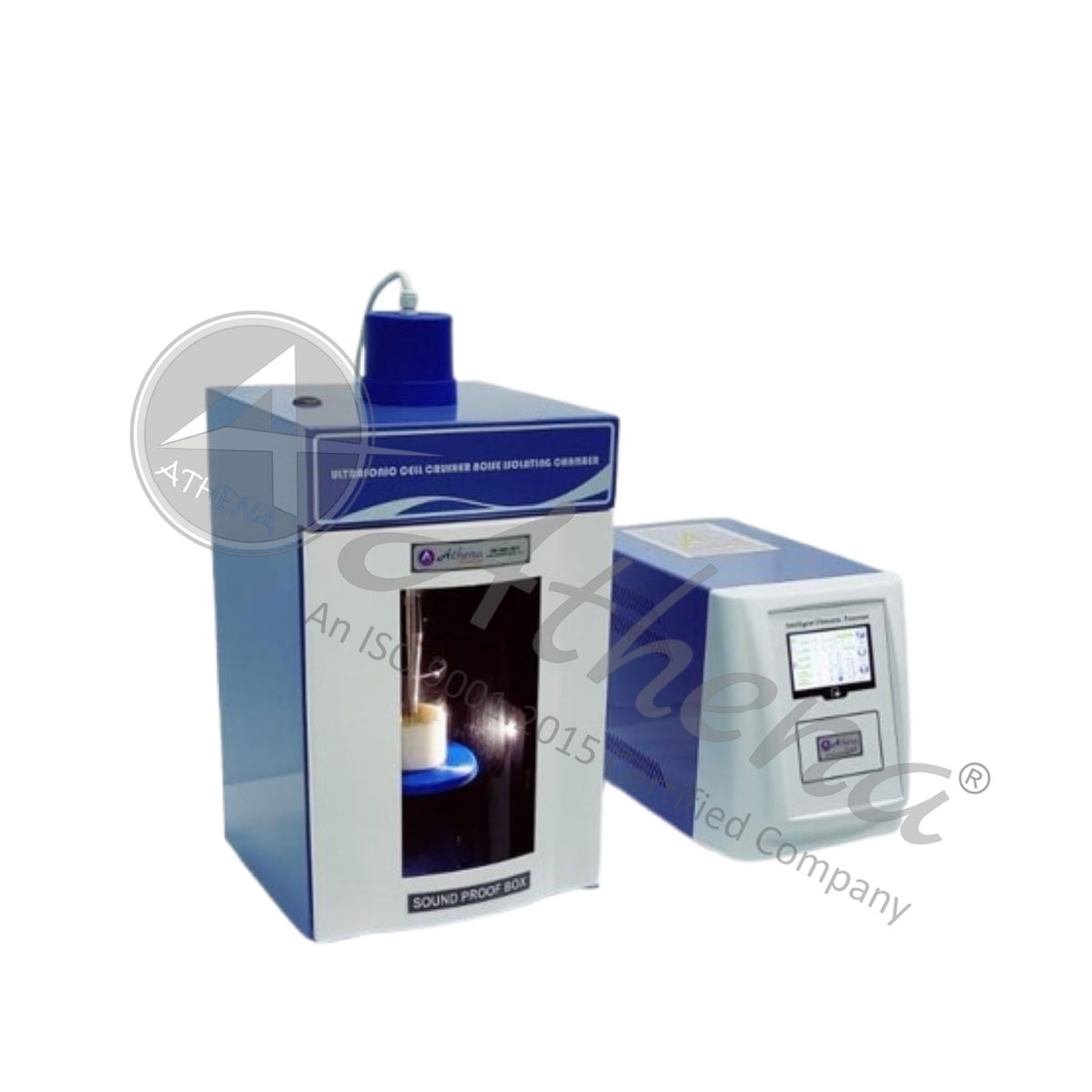

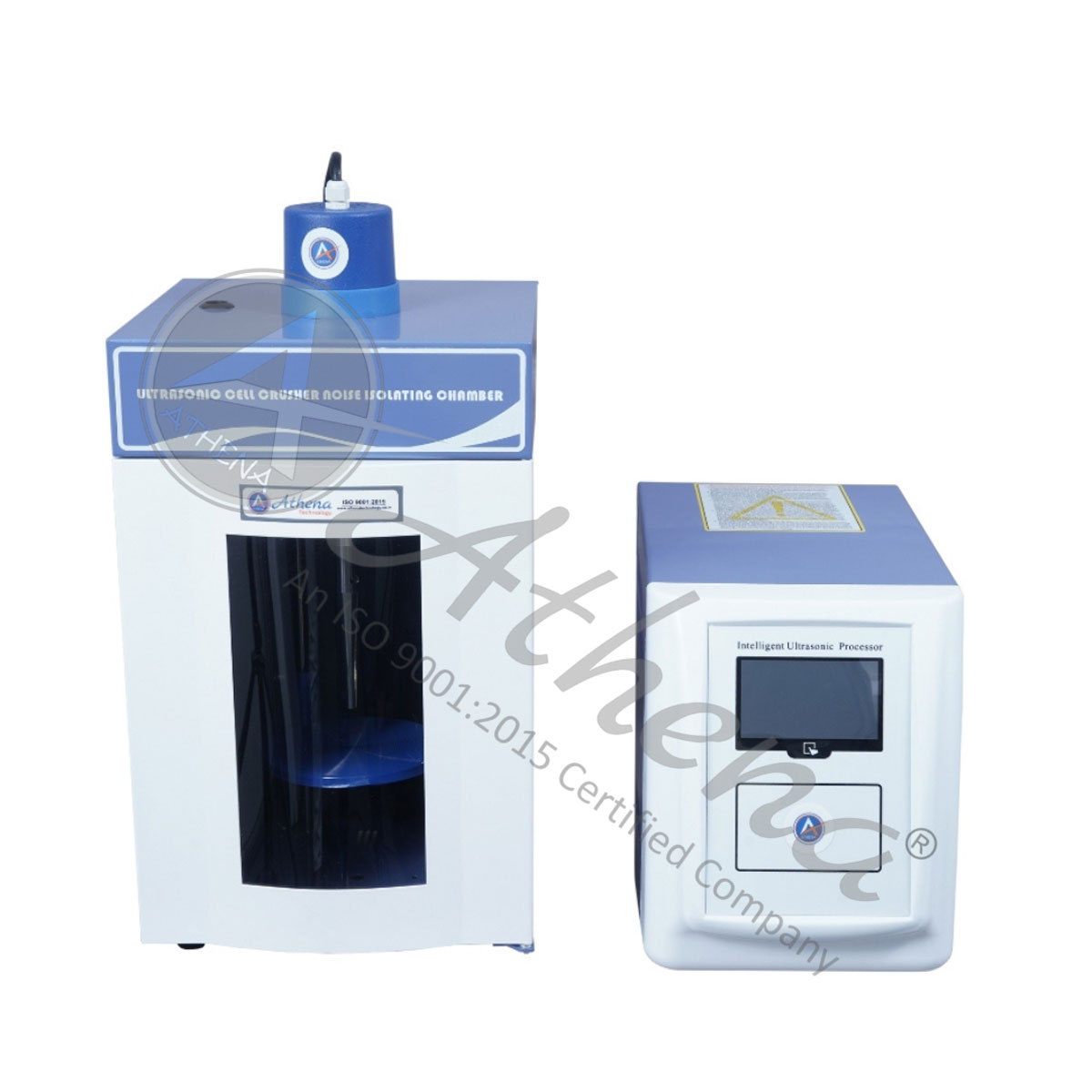

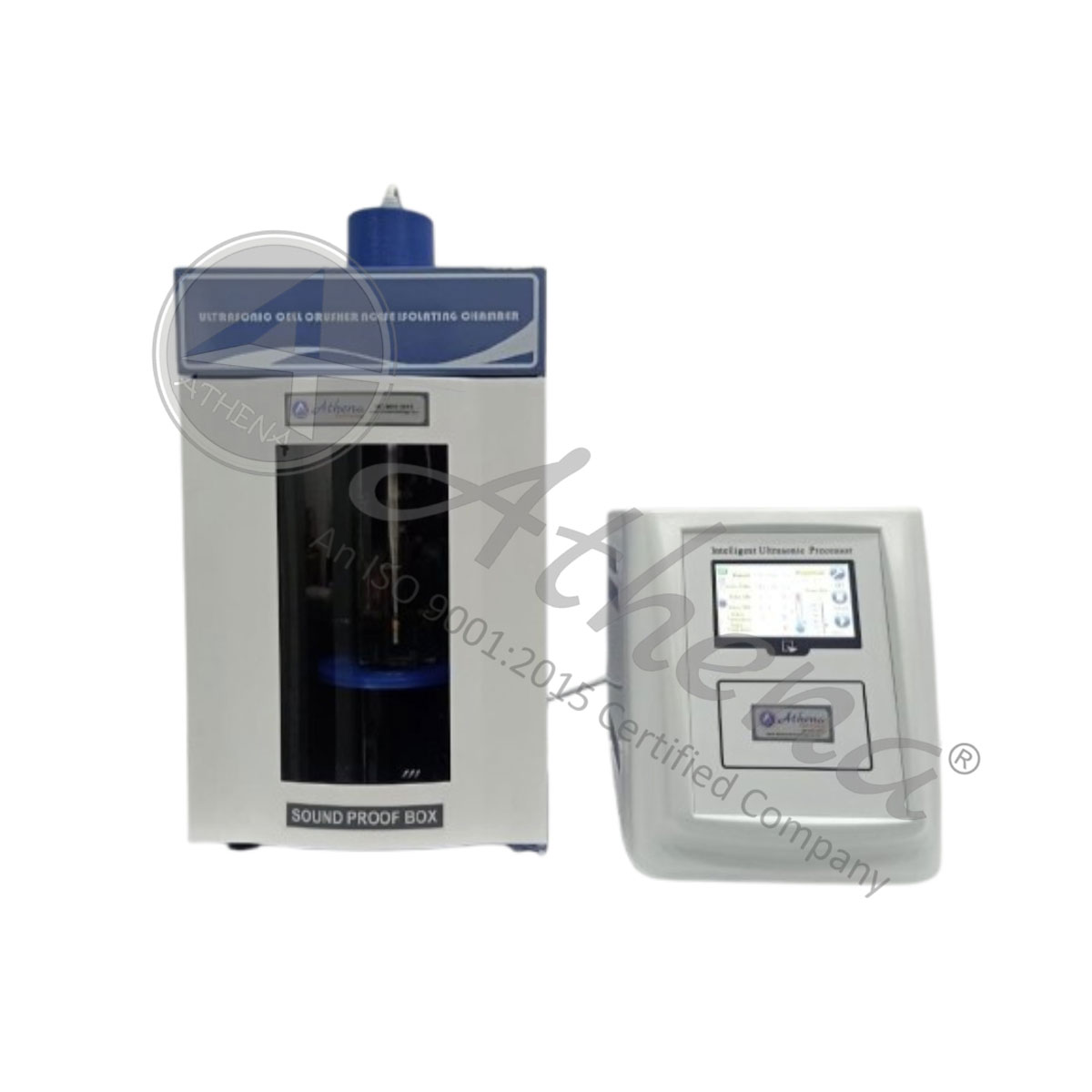

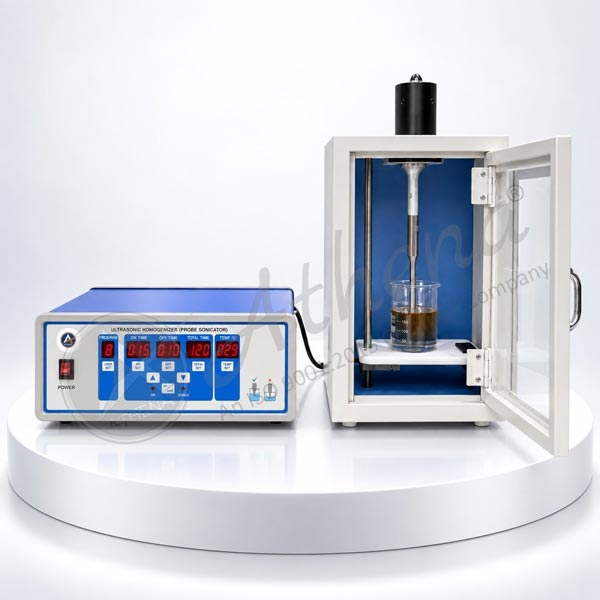

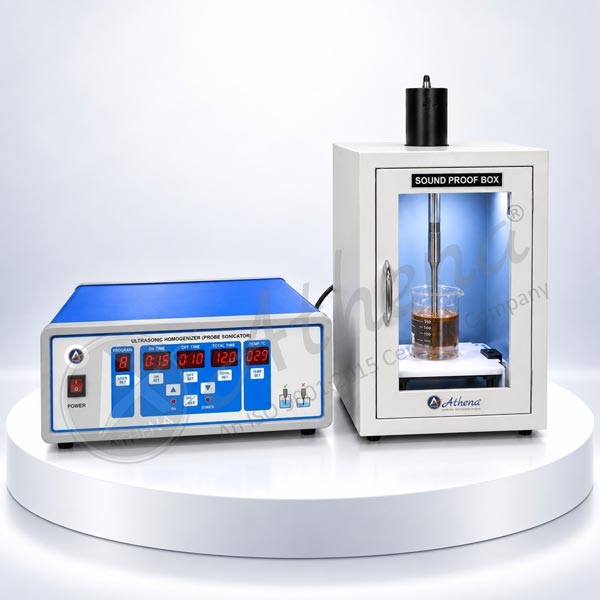

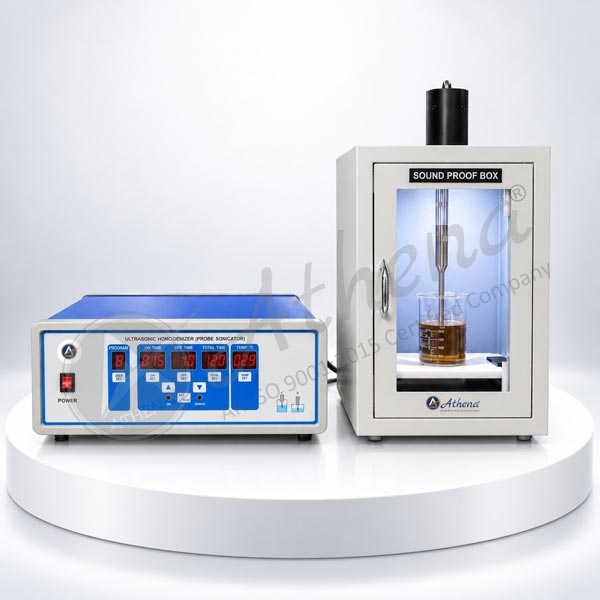

Probe Sonicator – Industrial Series
High-Power Ultrasonic Processor for Extraction, Dispersion & Homogenization
Athena Instruments introduces the Probe Sonicator AIPL-2000 and AIPL-3000-robust, high-performance ultrasonic processors engineered for efficient extraction, emulsification, dispersion, and homogenization. Designed for laboratories and production environments, these processors utilize advanced cavitation technology to break down cells, disperse particles, and accelerate chemical processes across a wide range of applications.
Equipped with titanium alloy probes, intelligent frequency tracking, and digital controls, the AIPL series ensures consistent, repeatable results with superior energy efficiency. Built as per international quality standards, both models are CE marked, ISO 9001:2015 compliant, and FDA certified-making them ideal for industrial R&D, pilot plants, and continuous production.
Product Models & Specifications
|
Model |
Ultrasonic Power | Frequency | Supply | Probe Diameter | Capacity Range | Probe Material |
|---|---|---|---|---|---|---|
| AIPL-3000 | 3000 W | 20 kHz | 220/110 V 50 Hz/60 Hz | 25mm | 20 ~ 2800 ml | Titanium Alloy |
| AIPL-4000 | 4000 W | 20 kHz | 220/110 V 50 Hz/60 Hz | 28m | 20 ~ 3000 ml | Titanium Alloy |
- Note: Optional Horn sizes, cooling jackets, and additional accessories available on request.
Key Features
High-Power Ultrasonic Output
Available in 2000W and 3000W capacities for medium to large volume sample processing.
Titanium Alloy Probe
High-efficiency energy transfer with excellent corrosion resistance and extended operational life.
Digital Control Panel
Real-time adjustment of amplitude, time, pulse mode, and power settings with LCD interface.
Intelligent Frequency Tracking
Automatically adjusts operating frequency for optimal cavitation during sonication.
Pulse & Timer Modes
Programmable pulse ON/OFF cycles and duration for heat-sensitive samples or time-bound operations.
Overload Protection
Integrated system alarms and automatic shutoff to safeguard equipment and ensure user safety.
Applications
Biotechnology & Pharma
Cell disruption, DNA/RNA shearing, nanoparticle dispersion, vaccine formulation.
Food & Beverage Processing
Homogenization of beverages, emulsification of sauces, bioavailability enhancement.
Cosmetics & Personal Care
Particle size reduction, pigment mixing, emulsions and cream stabilization.
Environmental Research
Soil sample homogenization, wastewater treatment, pollutant breakdown.
Chemical & Materials Science
Cracking carbon nanotubes, rare earth material dispersion, metal-organic compound processing.
Additional Technical Highlights
Construction
Premium titanium probe with high acoustic efficiency and chemical compatibility.
Amplitude Control
Wide adjustment range suitable for delicate samples or aggressive sonication.
Display Interface
Touch Screen LCD Display with menu-driven navigation for precise control.
Pulse Operation
Improves control over sample heating and improves extraction uniformity.
Noise Control
Optional acoustic enclosure available for noise reduction in lab environments.
Why Choose Athena’s Probe Sonicators?
Trusted Performance, Certified Quality
Athena’s AIPL series Probe Sonicators are CE certified, ISO 9001:2015 compliant, and manufactured under stringent quality assurance systems. Trusted by research institutions, pharmaceutical companies, and production facilities worldwide, our ultrasonic processors offer field-proven reliability with global support and certification for consistent, high-quality outcomes.
