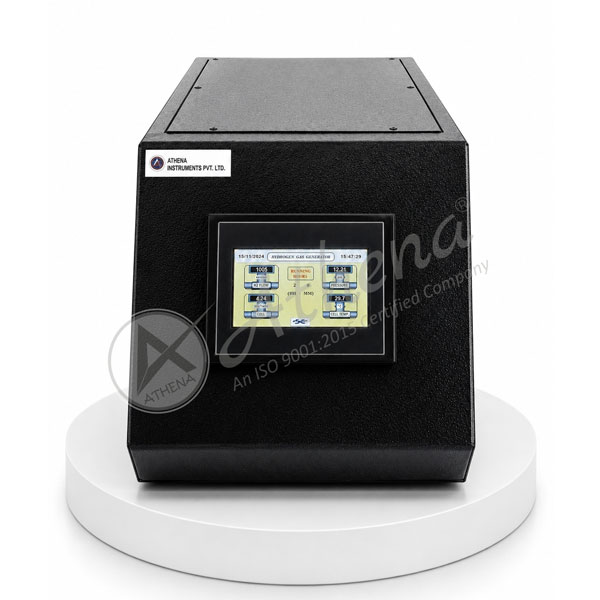

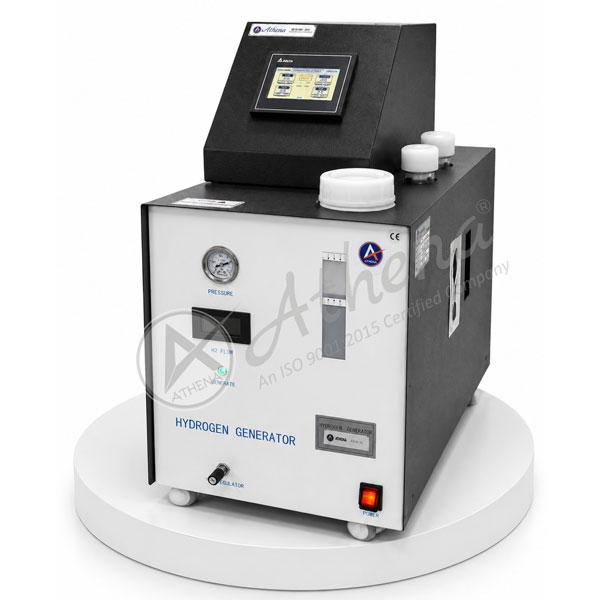

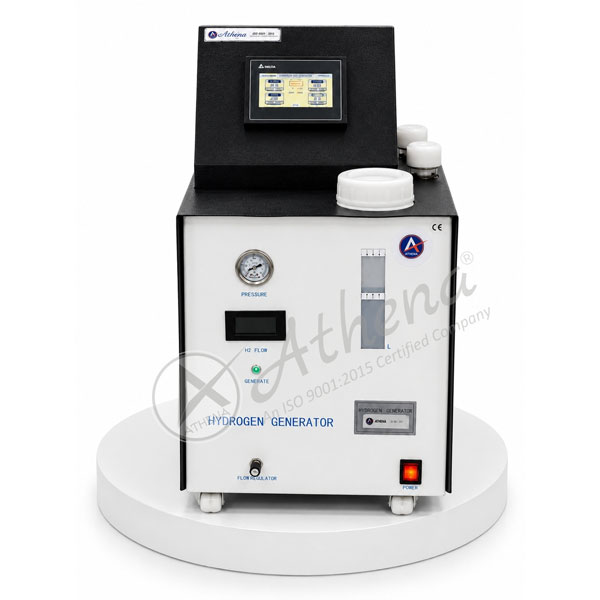

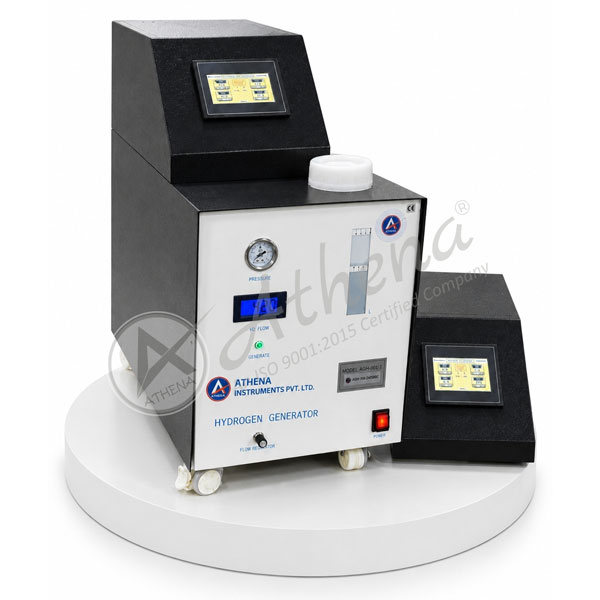

Hydrogen Gas Generator (PEM PLC)
PLC-Controlled Proton Exchange Membrane Hydrogen Generation System
Athena Instruments introduces theHydrogen Gas Generator PEM PLC,a robust and precision-engineered hydrogen generation system specifically designed for the continuous on-site production of ultra-high purity hydrogen gas for laboratory and industrial applications. Built using advanced SPE/PEM (Solid Polymer Electrolyte / Proton Exchange Membrane) Electrolysis Technology,our hydrogen generators efficiently electrolyze pure deionized water without the use of alkaline chemicals to produce high-purity hydrogen while safely separating oxygen through a high-performance membrane. Equipped with a PLC-controlled operating system, LCD touch screen interface, automatic diagnostics, and intelligent safety monitoring, the PEM PLC Series delivers exceptional reliability, stable hydrogen flow, and consistent gas purity for Gas Chromatography (GC), GC-FID, GC-TCD, GC-NPD, GC-FPD, ELCD, AED, analytical laboratories, pharmaceutical industries, research institutions, hydrogenation processes, furnace purging, CVD, MPCVD, and other scientific applications.
Available in multiple flow capacities ranging from300 ml/min to 4000 ml/min, these generators are extensively tested for continuous operation and are manufactured using 100% Titanium Electrolysis Cells, U.S. DuPont™ N117 Proton Exchange Membrane, platinum catalyst technology, and integrated purification and drying systems to deliver hydrogen purity up to 99.9999%.Designed as a safe and economical alternative to conventional hydrogen cylinders, the system offers automatic leak detection, pressure monitoring, water quality monitoring, and remote PLC diagnostics while minimizing maintenance requirements and operating costs. Athena Hydrogen Gas Generator PEM PLC systems are manufactured under stringent quality standards and comply with international certifications, including CE, ISO 9001:2015, and FDA,ensuring dependable hydrogen generation for laboratory and industrial applications.
Product Models & Specifications
|
Model |
Output Flow | Hydrogen Purity | Output Pressure |
|---|---|---|---|
| ATHH-300 | 0–310 ml/min | >99.999% / 99.9999% | 0–4 / 0–7 / 0–10 / 0–15 Bar |
| ATHH-600 | 0–610 ml/min | >99.999% / 99.9999% | 0–4 / 0–7 / 0–10 / 0–15 Bar |
| ATHH-1000 | 0–1020 ml/min | >99.999% / 99.9999% | 0–4 / 0–7 / 0–10 / 0–15 Bar |
| ATHH-2000 | 0–2020 ml/min | >99.999% / 99.9999% | 0–4 / 0–7 / 0–10 / 0–15 Bar |
|
ATHH-3000 |
0–3050 ml/min |
>99.999% / 99.9999% |
0–4 / 0–7 / 0–10 / 0–15 Bar |
| ATHH-4000 | 0–4000 ml/min | >99.999% / 99.9999% | 0–4 / 0–7 / 0–10 / 0–15 Bar |
- Note: Higher-capacity models including 2 LPM, 3 LPM, 5 LPM, and customized high-pressure hydrogen generation systems are available on request.
Key Features
Advanced SPE/PEM Technology
Built using Proton Exchange Membrane (PEM) electrolysis technology with U.S. DuPont™ N117 membrane, platinum catalyst, and 100% titanium electrolysis cell for efficient hydrogen production from pure deionized water.
PLC Intelligent Control
Equipped with PLC-based control system, LCD touch screen display, real-time monitoring of hydrogen pressure, flow rate, water level, water quality, automatic diagnostics, and USB communication for remote monitoring and maintenance.
Ultra-High Purity Hydrogen
Produces hydrogen with purity up to 99.9999%, stable flow, and low dew point, making it suitable for analytical instruments and laboratory applications requiring ultra-high purity hydrogen.
Comprehensive Safety Protection
Incorporates pressure transmitter, hydrogen over-pressure protection, hydrogen leak detection, oxygen permeation monitoring, water shortage alarm, water quality monitoring, over-temperature protection, and automatic safety diagnostics for safe and reliable operation.
High Reliability & Low Maintenance
Produces hydrogen on demand using pure water without alkaline chemicals, eliminating cylinder handling while providing corrosion-free, pollution-free, and low-maintenance operation.
Certifications
CE certified, ISO 9001:2015 compliant, FDA approved, and manufactured under stringent quality management systems for dependable laboratory and industrial performance.
Applications
Gas Chromatography
Reliable hydrogen supply for GC-FID, GC-TCD, GC-NPD, GC-FPD, and other gas chromatography systems requiring carrier gas or fuel gas.
Analytical Instruments
Ideal for ELCD, AED, analytical instruments, research laboratories, and scientific testing applications requiring ultra-high purity hydrogen.
Pharmaceutical & Research Laboratories
Suitable for pharmaceutical industries, research institutes, universities, environmental laboratories, and quality control facilities.
Hydrogenation & Industrial Processes
Provides clean and continuous hydrogen for hydrogenation reactions, fine chemical manufacturing, furnace purging, CVD, MPCVD, and industrial processing applications.
Continuous Laboratory Operation
Designed for laboratories requiring uninterrupted hydrogen generation with automatic operation, intelligent monitoring, and remote diagnostics.
Additional Technical Highlights
Technology
Advanced SPE/PEM electrolysis technology utilizing pure deionized water without alkaline electrolyte for clean and efficient hydrogen generation.
Electrolysis Cell
High-performance 100% Titanium Electrolysis Cell with U.S. DuPont™ N117 Proton Exchange Membrane and platinum catalyst for long service life and stable hydrogen production.
Hydrogen Purity
Produces hydrogen with purity up to 99.9999%, with optional oxygen trap for achieving purity levels up to 6N+, 7N+, and 9N+
PLC Monitoring
LCD touch screen with real-time display of hydrogen pressure, flow rate, water quality, water level, system diagnostics, and USB communication for remote maintenance.
Safety System
Integrated pressure monitoring, hydrogen leak detection, oxygen permeation monitoring, water shortage protection, over-temperature alarm, and water quality monitoring for safe operation.
High-Pressure Output
Available in output pressures up to 15 Bar, with direct high-pressure hydrogen generation and no built-in hydrogen storage tank required.
Compliance
Manufactured in accordance with international quality standards and supplied with CE, ISO 9001:2015, and FDA certifications for laboratory and industrial hydrogen generation.
Why Choose Athena's Hydrogen Gas Generator PEM PLC?
Trusted Performance, Certified Quality
Athena’s Hydrogen Gas Generator PEM PLC systems are CE certified, ISO 9001:2015 compliant, and manufactured under stringent in-house quality protocols , delivering intelligent, on-site hydrogen generation with ultra-high purity, advanced PLC control, dependable performance, and international safety and quality assurance for laboratory and industrial applications.
