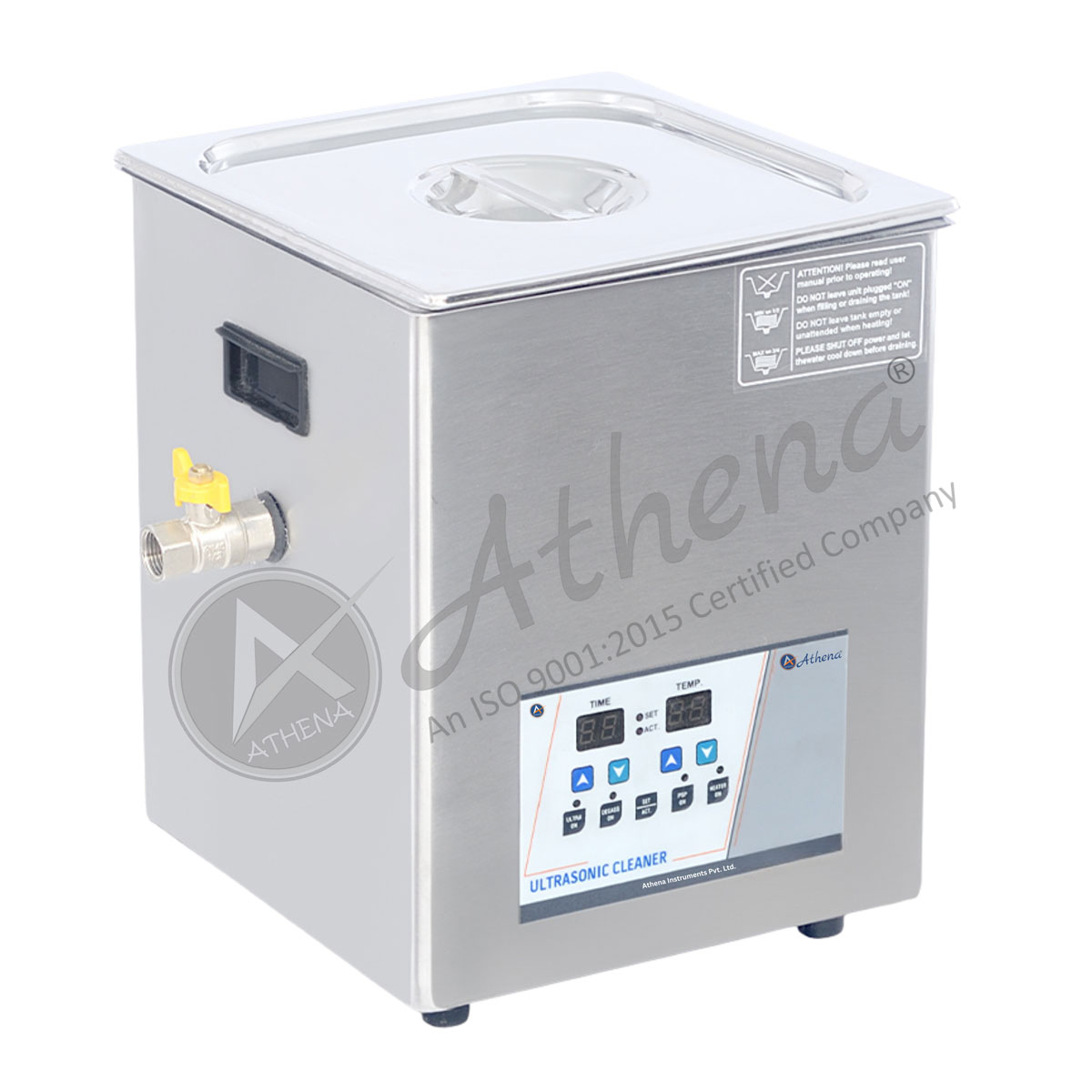

Ultrasonic Cleaner – Eco Series
Compact Moulded Ultrasonic Cleaning System for Laboratory, Jewellery, and Healthcare Applications
Athena Instruments introduces the Ultrasonic Cleaner – Eco Series, a compact and moulded ultrasonic cleaning solution designed for precision cleaning tasks in laboratories, hospitals, research facilities, and jewellery workshops. Crafted from SS304 stainless steel with a moulded tank design, the ECO Series ensures durability, reliability, and chemical resistance while being lightweight and space-efficient.
Optimized for small to medium cleaning volumes, the ECO Series offers excellent ultrasonic performance with advanced controls—making it ideal for healthcare instruments, jewellery, glassware, and delicate components requiring gentle yet thorough cleaning.
Key Features :
- Moulded Stainless Steel Tank: SS304 tank construction ensures resistance to corrosion and long-term durability.
- Compact & Lightweight Design: Space-efficient models suited for laboratories, clinics, and small-scale industrial use.
- Reliable Ultrasonic Power: Ultrasonic output ranging from 50W to 500W, ensuring uniform cleaning across different load sizes.
- Integrated Heating System: Inbuilt heater (100W–500W) supports effective removal of oil, grease, and residues.
- Digital Timer & Control: Adjustable timer (1–15 min / 1–99 min depending on model) for precise operation.
- Degas Mode: On/Off function improves ultrasonic efficiency by eliminating trapped air bubbles.
Applications
Pharmaceutical & Hospital Use
Cleaning of surgical instruments, stainless steel utensils, and lab glassware.
Jewellery Industry
Safe and effective cleaning of ornaments, chains, and intricate jewellery items.
R&D Laboratories
Cleaning of beakers, flasks, pipettes, and delicate experimental glassware.
General
Use
Suitable for small electronic parts, watch components, and precision cleaning needs.
Product Models & Specifications
| Model Name | Tank Capacity | Tank Size (mm) |
Ultrasonic Power |
Heater Power |
Timer Range | Frequency |
|---|---|---|---|---|---|---|
| ATS – 2 – LED | 2 L | 240 x 135 x 65 | 50 W | 100 W | 1–15 min | 33 kHz |
| ATS – 3 – LED | 3 L | 240 x 135 x 100 | 100 W |
100 W |
1–15 min | 33 kHz |
| ATS – 4.5 – LED | 4.5 L | 300 x 150 x 100 | 100 W |
100 W |
1–99 min |
40 kHz |
| ATS – 5 – LED | 5 L | 230 x 230 x 100 | 100 W | 200 W | 1–99 min | 40 kHz |
| ATS – 7 – LED | 7 L | 300 x 240 x 100 | 200 W |
200 W |
1–99 min |
40 kHz |
| ATS – 10 – LED | 10 L | 300 x 240 x 150 | 250 W | 200 W | 1–99 min | 40 kHz |
| ATS – 15 – LED | 15 L | 500 x 300 x 100 | 300 W | 500 W |
1–99 min |
40 kHz |
|
ATS – 22 – LED |
22 L |
500 x 300 x 150 |
400 W |
500 W |
1–99 min |
40 kHz |
| ATS – 30 – LED | 30 L |
500 x 300 x 200 |
500 W |
500 W |
1–99 min |
40 kHz |
Additional Technical Highlights
Material of Construction:
SS304 stainless steel (tank + enclosure)
Transducer Type:
Imported PZT type, weld-bonded to tank bottom
Ultrasonic Frequency:
33 / 40 kHz (model dependent)
Ultrasonic Generator:
Advanced MOSFET/IGBT-based SMPS for stable performance
Temperature Range:
Ambient to 50°C / 60°C (depending on model)
Accessories:
Supplied with SS basket, lid, drain valve, power cord, and user manual
Power Input:
230 VAC
Why Choose Athena’s Ultrasonic Cleaner – Eco Series?
Certified Quality, Trusted Performance
The Ultrasonic Cleaners Eco Series are manufactured under ISO 9001:2015-certified processes, ensuring global compliance, consistent quality, and dependable cleaning efficiency trusted by pharmaceutical, healthcare, and research institutions worldwide.
