Ultrasonic Cleaner

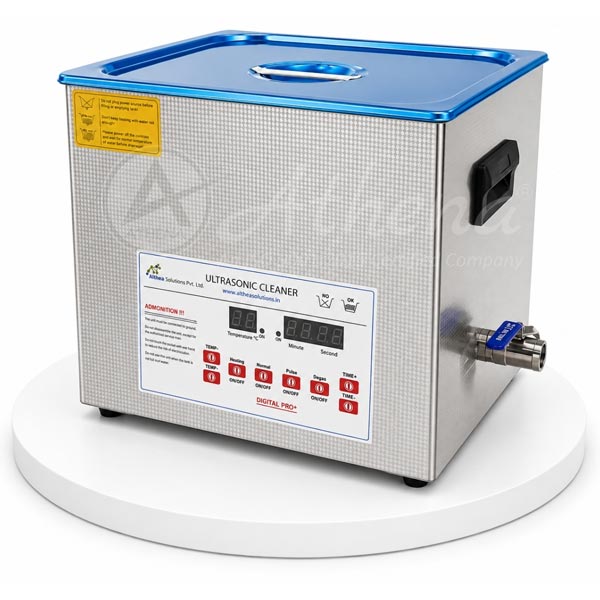

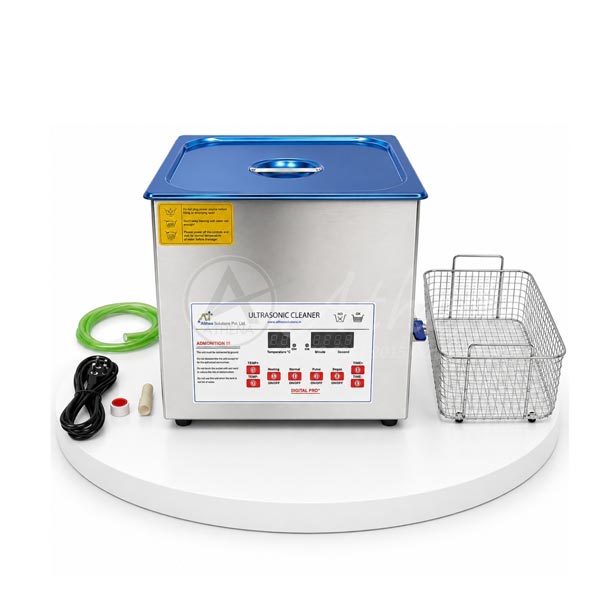

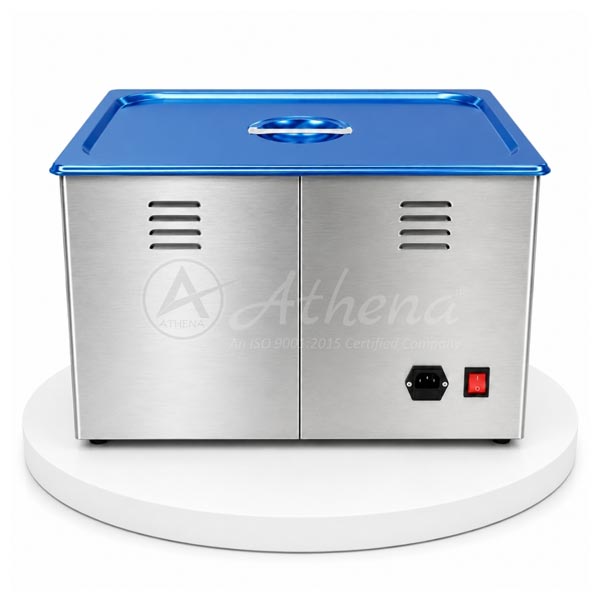

DIGITAL ULTRASONIC CLEANING SYSTEM WITH TIMER, HEATER, PULSE & DEGAS FUNCTIONS
Athena Instruments introduces the Ultrasonic Cleaner -ATS Series, a compact and precision-engineered ultrasonic cleaning system designed for efficient cleaning of laboratory equipment, sample containers, components, and other small-to-medium-sized items. Utilizing 40 kHz ultrasonic cleaning technology with adjustable heating, and timed operation, the system provides uniform and reliable cleaning performance for laboratories, research facilities, electronics, biomedical applications, and general commercial use.
Available in 2 L to 30 L capacities, the ATS Series features digital time and temperature control, Normal, Pulse and Degas functions, and temperature adjustment from 20°C to 80°C. Its compact construction, easy operation, and maintenance-free instruments it suitable for routine cleaning applications where consistent and convenient performance is required.
Product Models & Specifications
|
Model |
Capacity |
Ultrasonic Power |
Frequency |
Time |
Temperature |
Heating Power |
Tank Size (L×W×H) |
Unit Size (L×W×H) |
Drain Valve |
Weight |
|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-2 |
2 L |
60 W |
40 kHz |
1–99 min |
20–80°C |
100 W |
150×140×100 mm |
175×165×230 mm |
No |
3.0 kg |
|
ATS-3 |
3.2 L |
120 W |
40 kHz |
1–99 min |
20–80°C |
100 W |
240×140×100 mm |
265×165×230 mm |
No |
3.3 kg |
|
ATS-4 |
4.5 L |
120 W |
40 kHz |
1–99 min |
20–80°C |
300 W |
300×150×100 mm |
330×180×230 mm |
No |
4.2 kg |
|
ATS-6 |
6.5 L |
180 W |
40 kHz |
1–99 min |
20–80°C |
300 W |
300×150×150 mm |
380×175×275 mm |
Yes |
6.0 kg |
|
ATS-10 |
10 L |
240 W |
40 kHz |
1–99 min |
20–80°C |
500 W |
300×240×150 mm |
380×270×275 mm |
Yes |
8.0 kg |
|
ATS-15 |
15 L |
360 W |
40 kHz |
1–99 min |
20–80°C |
500 W |
330×300×150 mm |
390×330×275 mm |
Yes |
10.0 kg |
|
ATS-20 |
20 L |
40 kHz |
28/40 kHz |
1–99 min |
20–80°C |
500 W |
330×300×200 mm |
390×330×330 mm |
Yes |
11.0 kg |
|
ATS-22 |
22 L |
480 W |
40 kHz |
1–99 min |
20–80°C |
500 W |
500×300×150 mm |
580×330×275 mm |
Yes |
13.0 kg |
|
ATS-30 |
30 L |
600 W |
40 kHz |
1–99 min |
20–80°C |
500 W |
500×300×200 mm |
580×330×330 mm |
Yes | 15.0 kg |
Key Features
40 kHz Ultrasonic Cleaning
Provides uniform ultrasonic agitation for effective removal of dirt and contaminants.
MOC
304 SS Inner & 304 outer cabinet ( customization available )
Digital Timer & Temperature Control
Adjustable cleaning time from 1–99 minutes and temperature from 20–80°C.
Multiple Operating Functions
Includes Normal, Pulse and Degas modes for flexible cleaning applications.
Function
Provides silent, stable, maintenance-free operation with long service life.
Compact Design
Streamlined construction with simple controls for convenient benchtop operation.
Multiple Capacity Options
Available from 2 L to 30 L to accommodate different sample and component sizes.
Applications
Laboratory Cleaning
Cleaning glassware, sample containers, laboratory accessories, and components & solvent degassing
Biomedical Applications
Suitable for cleaning instruments and equipment used in biomedical laboratories.
Electronics & Semiconductor Components
Effective for cleaning precision electronic and semiconductor components.
Automotive Components
Suitable for cleaning small mechanical and automotive parts.
Optoelectronics
Supports cleaning of optical and optoelectronic components.
Petrochemical & Industrial Components
Suitable for routine cleaning of parts and components used in petrochemical applications.
Additional Technical Highlights
Ultrasonic Frequency
40 kHz operating frequency for consistent ultrasonic cleaning.
Operating Modes
Normal, Pulse and Degas functions for different cleaning requirements.
Digital Control
LED display for convenient monitoring of cleaning time and operating parameters.
Temperature Control
Adjustable heating range of 20–80°C for temperature-assisted cleaning.
Cleaning Time
Programmable timer from 1–99 minutes, with an audible beep alarm when operation ends.
Cleaning Platforms
Different platform options are available to accommodate conical flasks and other sample containers.
Drainage
Drain valve is provided on selected models from the ATS-6 through ATS-30 series.
Why Choose Athena’s Ultrasonic Cleaner?
Trusted Performance, Certified Quality
Athena’s ATS Series Ultrasonic Cleaners are designed under stringent quality-control protocols, delivering consistent ultrasonic cleaning performance, convenient operation, and reliable temperature and time control for laboratory, biomedical, electronics, automotive, and general cleaning applications.
