HPLC Column Oven
Table-Top Column Heating Solution for Reliable Chromatographic Precision

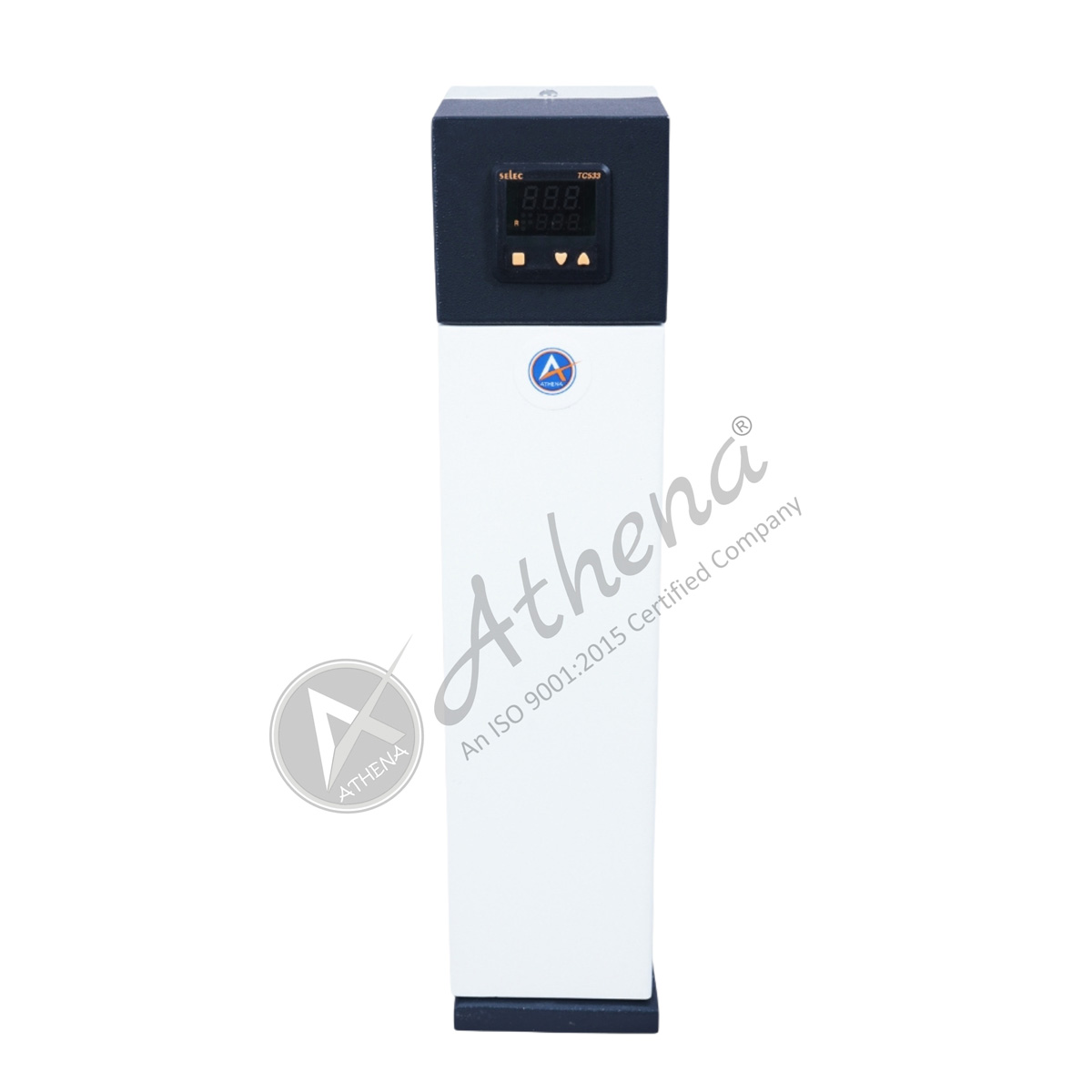

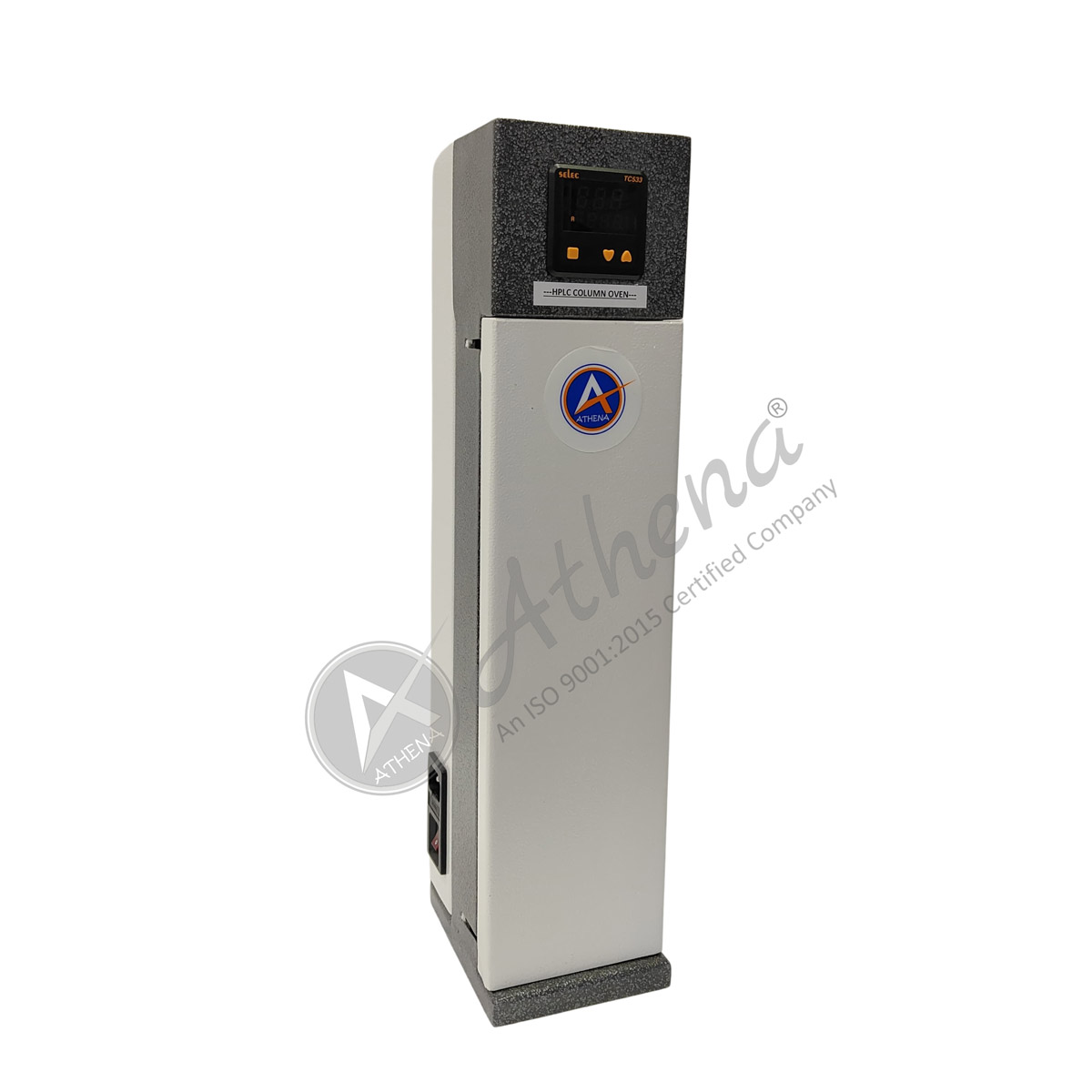

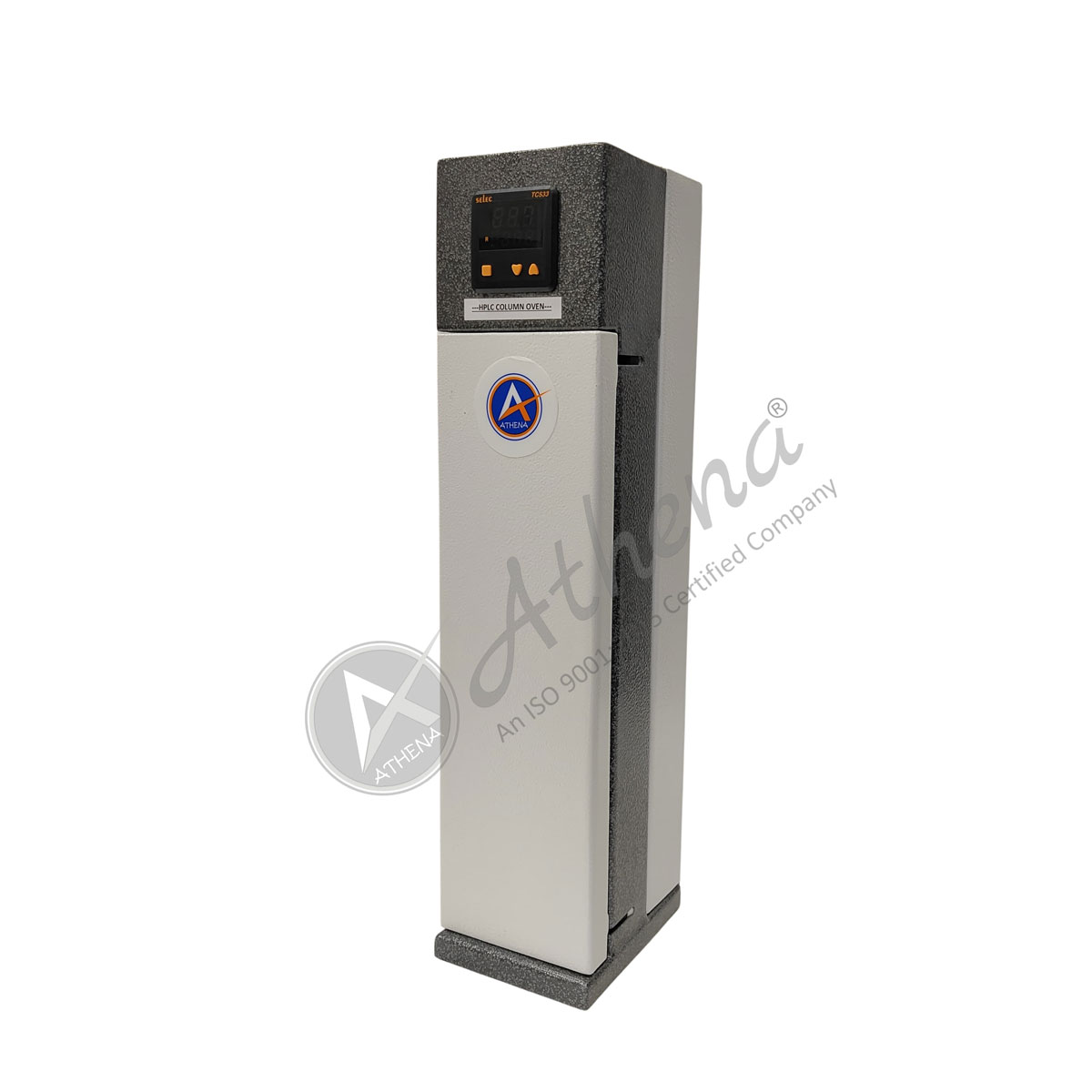

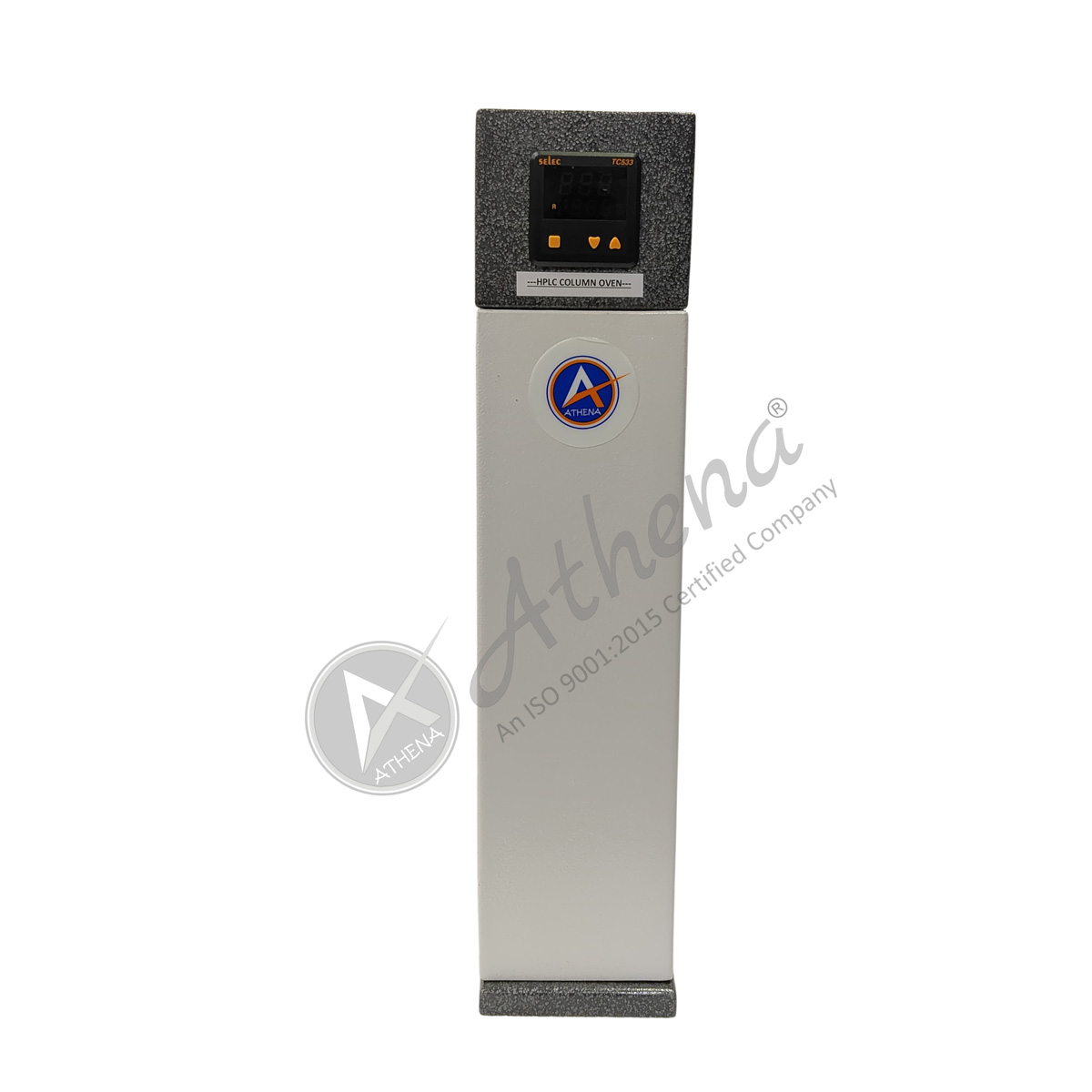

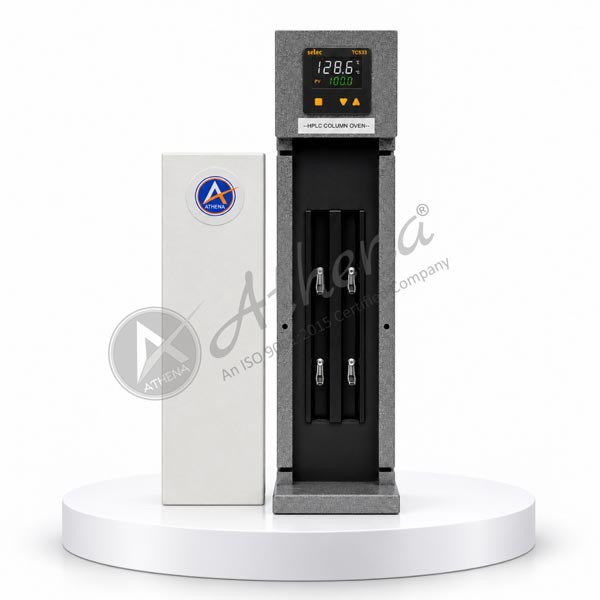

Athena Instruments Pvt Ltd introduces the ACH-100 HPLC Column Oven, a compact table-top model engineered to deliver consistent, accurate temperature control for High Performance Liquid Chromatography (HPLC) applications. Designed to improve retention time stability, peak resolution, and method reproducibility, the ACH-100 is ideal for analytical laboratories requiring precision thermal regulation in a space-efficient format.
With intelligent PID temperature control, rapid stabilization, and the ability to house two standard-length columns, this oven offers superior performance in pharmaceutical, chemical, environmental, and academic research environments.
Key Features :
- Table-Top Design : Compact and lightweight, the ACH-100 easily fits on standard laboratory benches and integrates seamlessly with existing HPLC setups.
- Wide Temperature Range : Maintains controlled temperatures from Ambient +5°C to 100°C, supporting a variety of analytical methods.
- High Accuracy & Stability : Delivers temperature accuracy and stability of ±0.1°C, enabled by a PT-100 sensor and advanced PID controller.
- Quick Thermal Stabilization : Achieves thermal equilibrium within 20 minutes, minimizing wait time between sample runs.

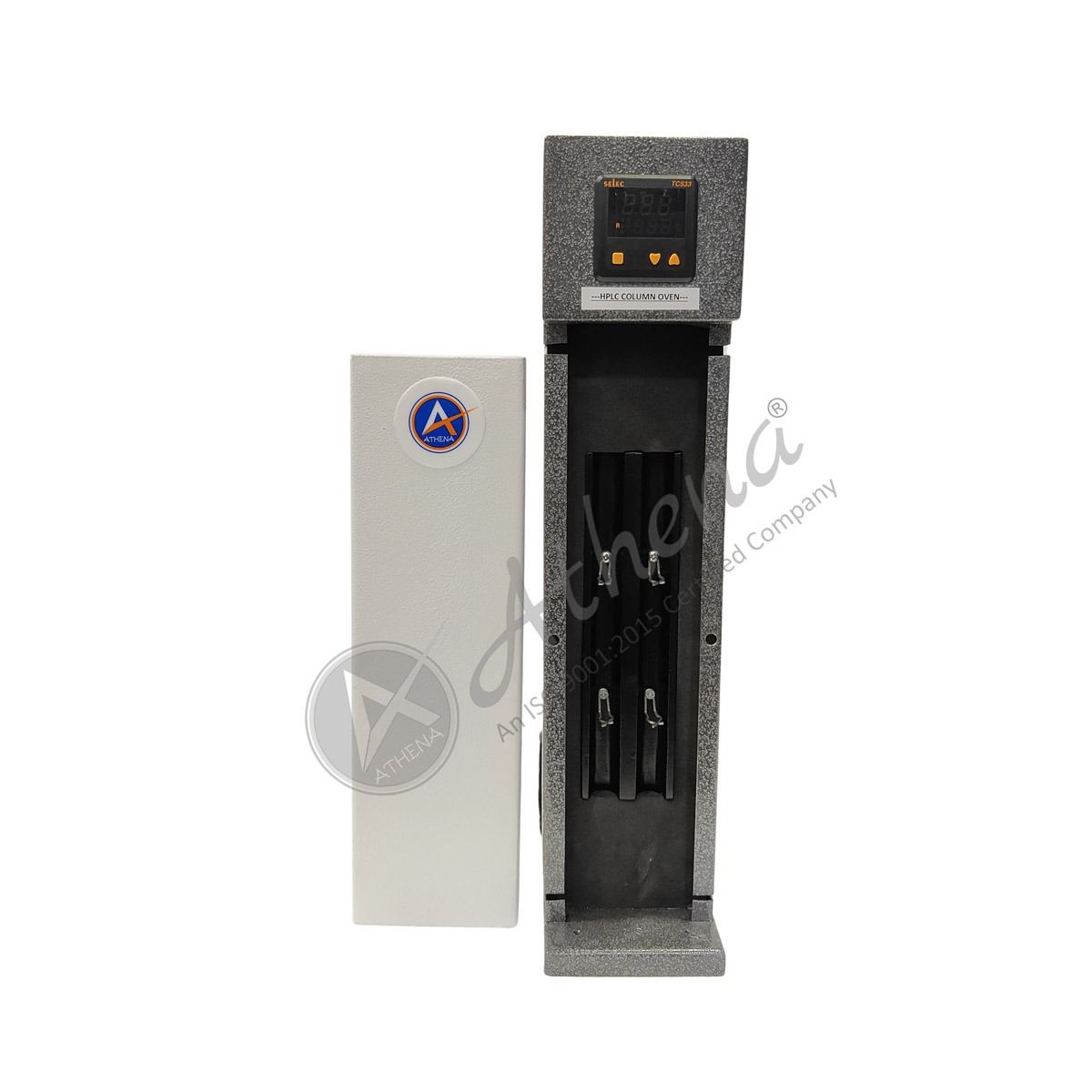

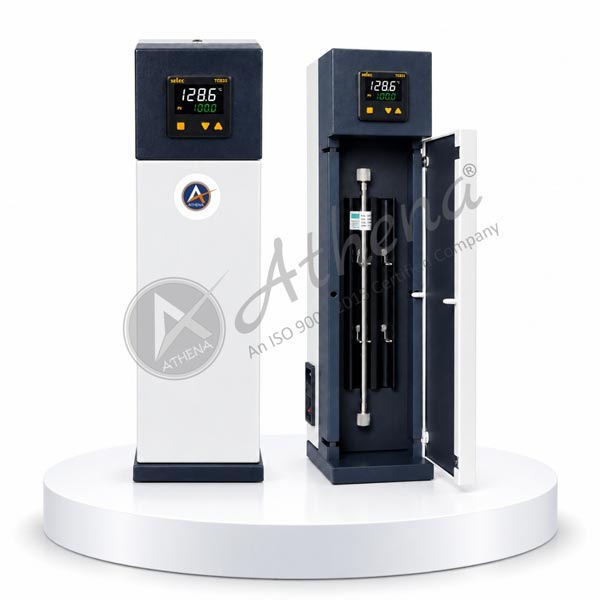

- Dual Column Capacity : Accommodates up to two 300 mm HPLC columns, making it versatile for most analytical workflows.

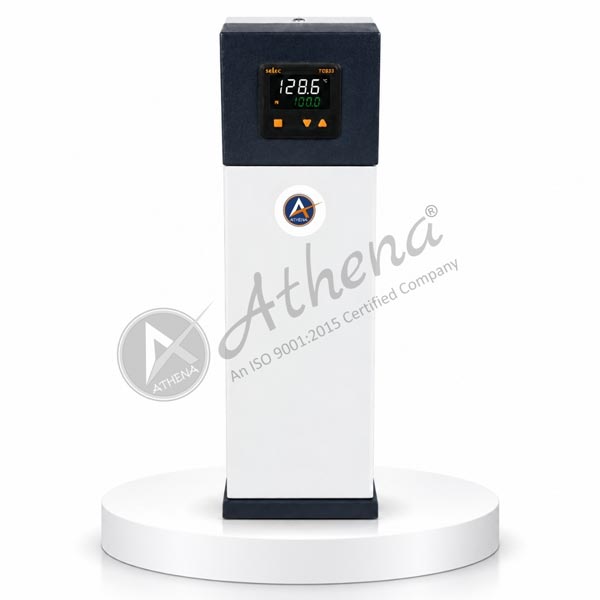

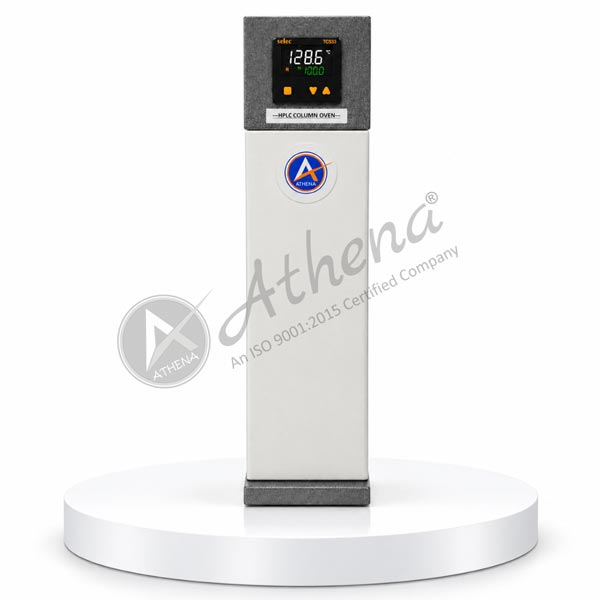

- User-Friendly Controls : Equipped with a three-button keypad and dual digital display for Set Value (SV) and Process Value (PV).
- Built-in Safety Measures : Includes an automatic over-temperature cut-off at 120°C, ensuring safe and reliable operation.
Applications
Pharmaceutical R&D
For method validation and robust temperature-sensitive separation
Chemical Analysis
Improved retention time reproducibility and peak shape
Environmental Testing
Stable separation conditions for trace-level analysis
Food & Beverage QC
Consistent analysis of organic compounds and additives
Academic Research
Reliable HPLC performance for student and faculty studies
Product Models & Specifications
|
Parameter |
Specification |
|---|---|
|
Model Name |
ACH-100 |
|
Design Type |
Table-top |
|
Temperature Range |
Ambient +5°C to 100°C |
|
Accuracy / Stability |
±0.1°C / 0.1°C |
|
Sensor Type |
PT-100, 2-wire |
|
Controller |
PID with auto-calibration |
|
Display |
Set Value (SV) & Process Value (PV) |
|
Stabilization Time |
≤ 20 minutes |
|
Safety Feature |
Auto cut-off at 120°C |
|
Column Capacity |
2 × 300 mm columns |
| Internal Dimensions | 330 mm(L) ×30 mm(W) × 60 mm(H) |
| External Dimensions | 480 mm(L) × 135mm(W) × 115 mm(H) |
|
Weight |
Approx. 6 kg |
| Key Operation | 3 Buttons |
|
Heating Element |
Stainless steel density cartridge heater |
Additional Technical Highlights
Thermal Safety:
Auto shut-off at high temperatures protects samples and equipment
Ergonomic Layout:
Designed for ease of access and quick column replacement
Universal Compatibility:
Works with all leading HPLC systems
Sturdy Construction:
Built for continuous operation in high-precision environments
Digital Accuracy:
Supports consistent baseline and separation result
Why Choose Athena Instruments HPLC Column Oven?
Trusted Performance, Certified Quality
Manufactured under ISO 9001:2015 standards, the ACH-100 table-top HPLC Column Oven from Athena Instruments Pvt Ltd offers certified performance, robust safety features, and consistent temperature regulation—making it an indispensable tool for analytical accuracy and laboratory efficiency.
