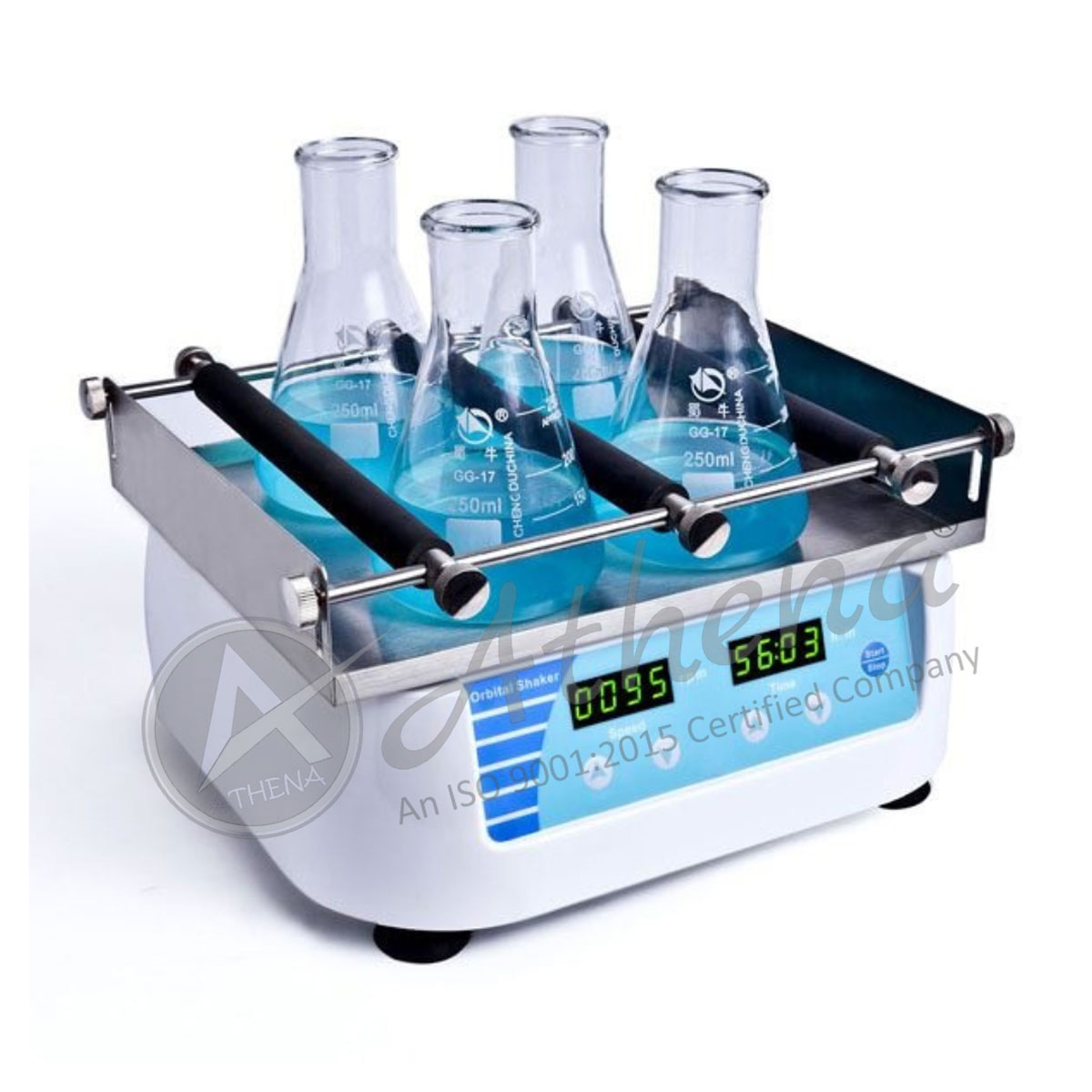

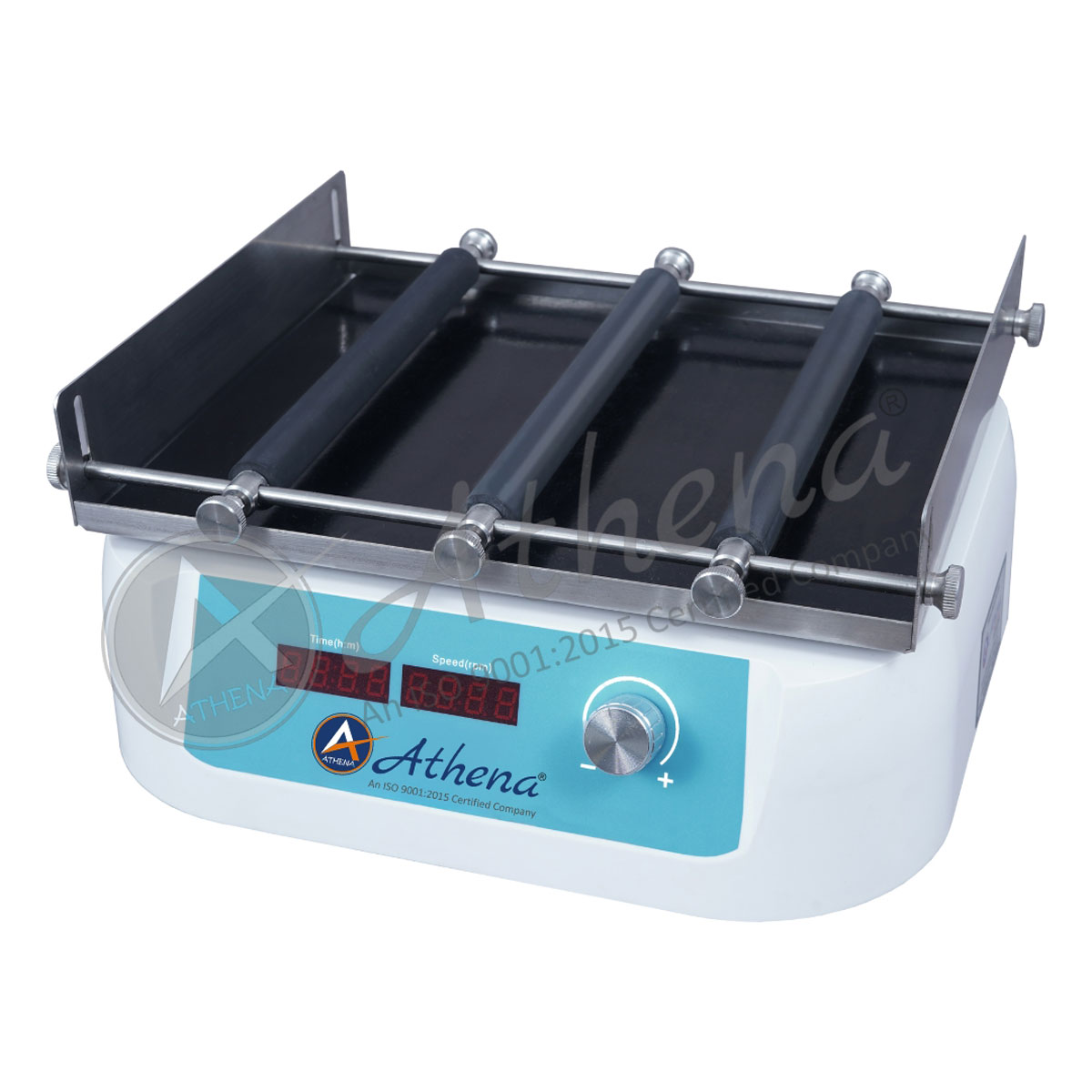

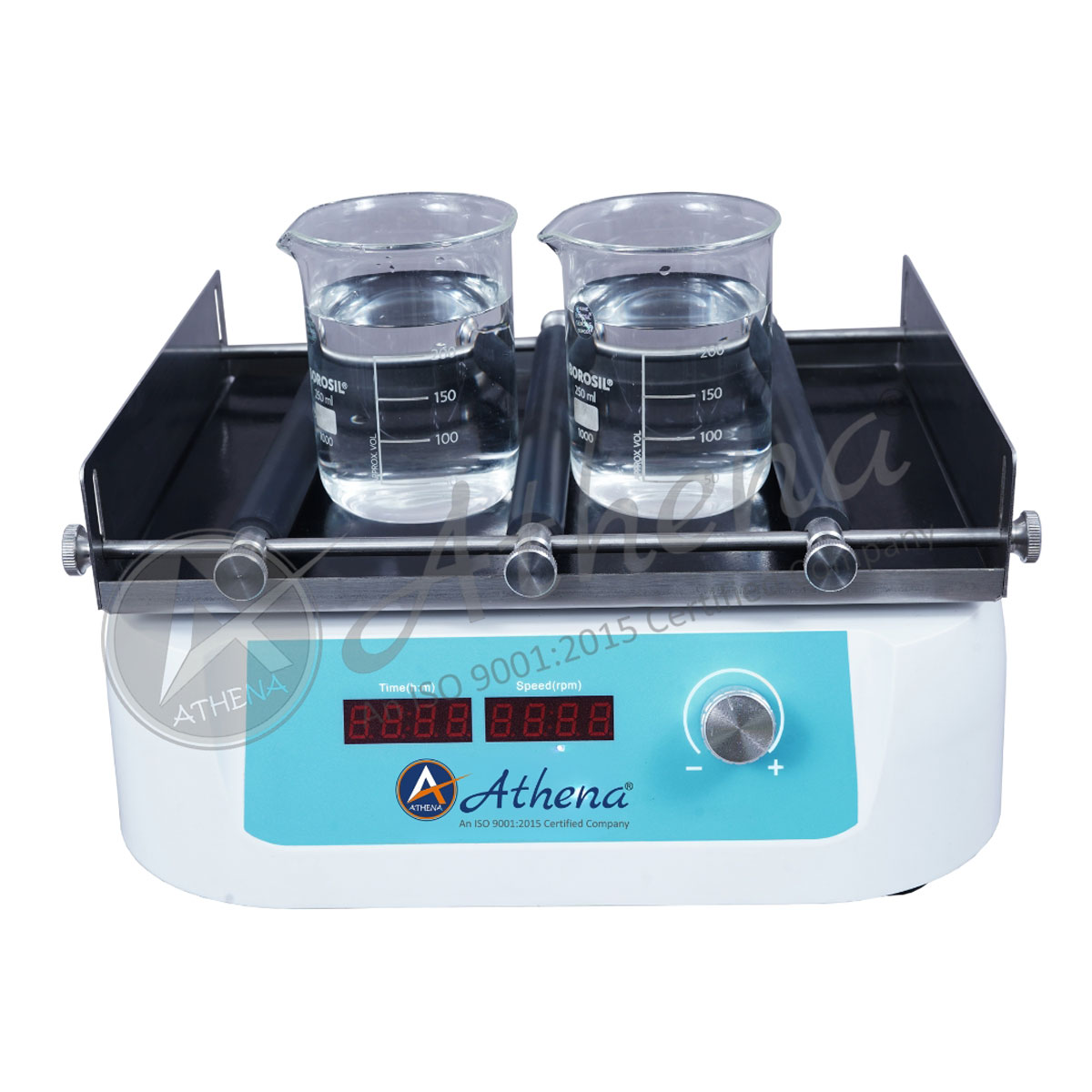

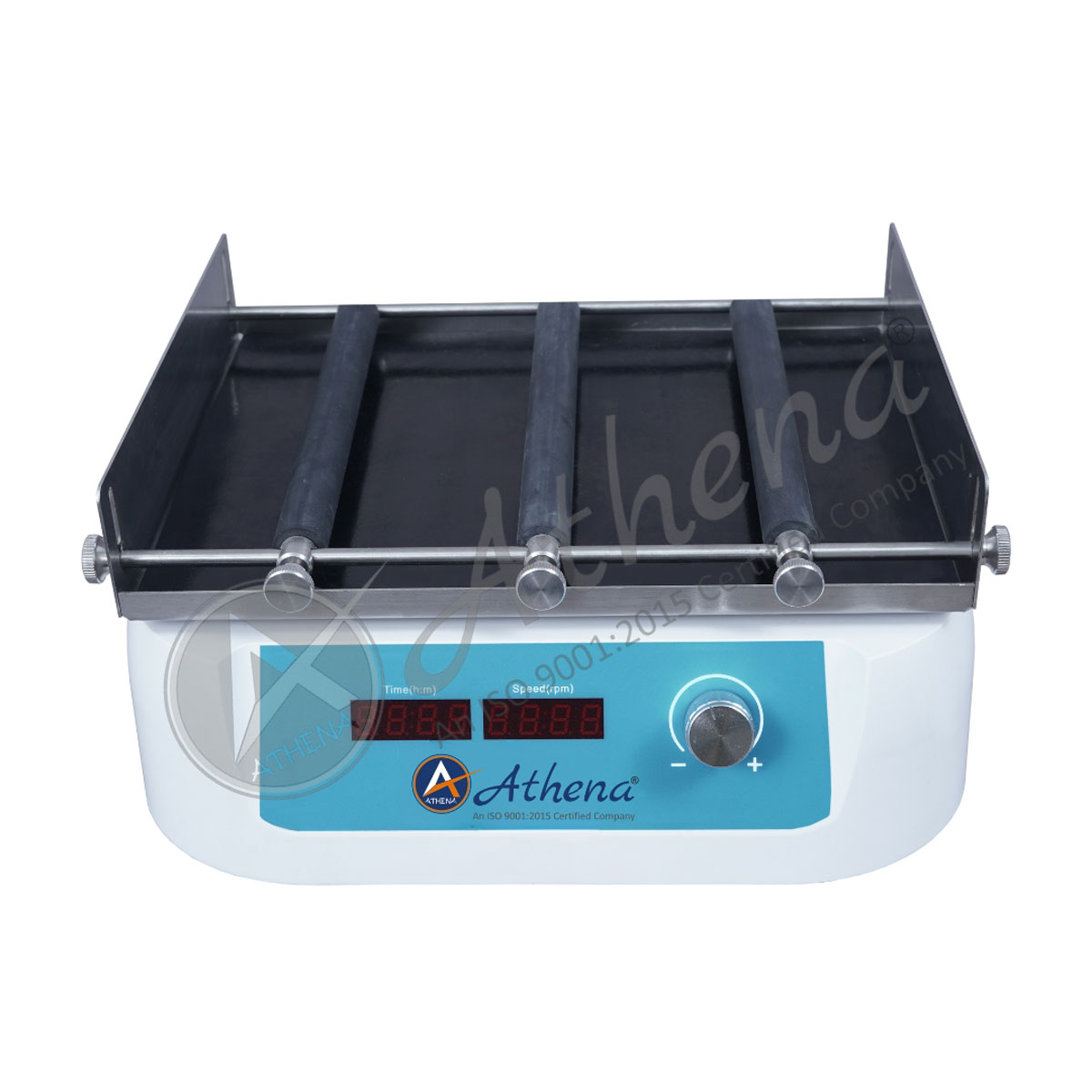

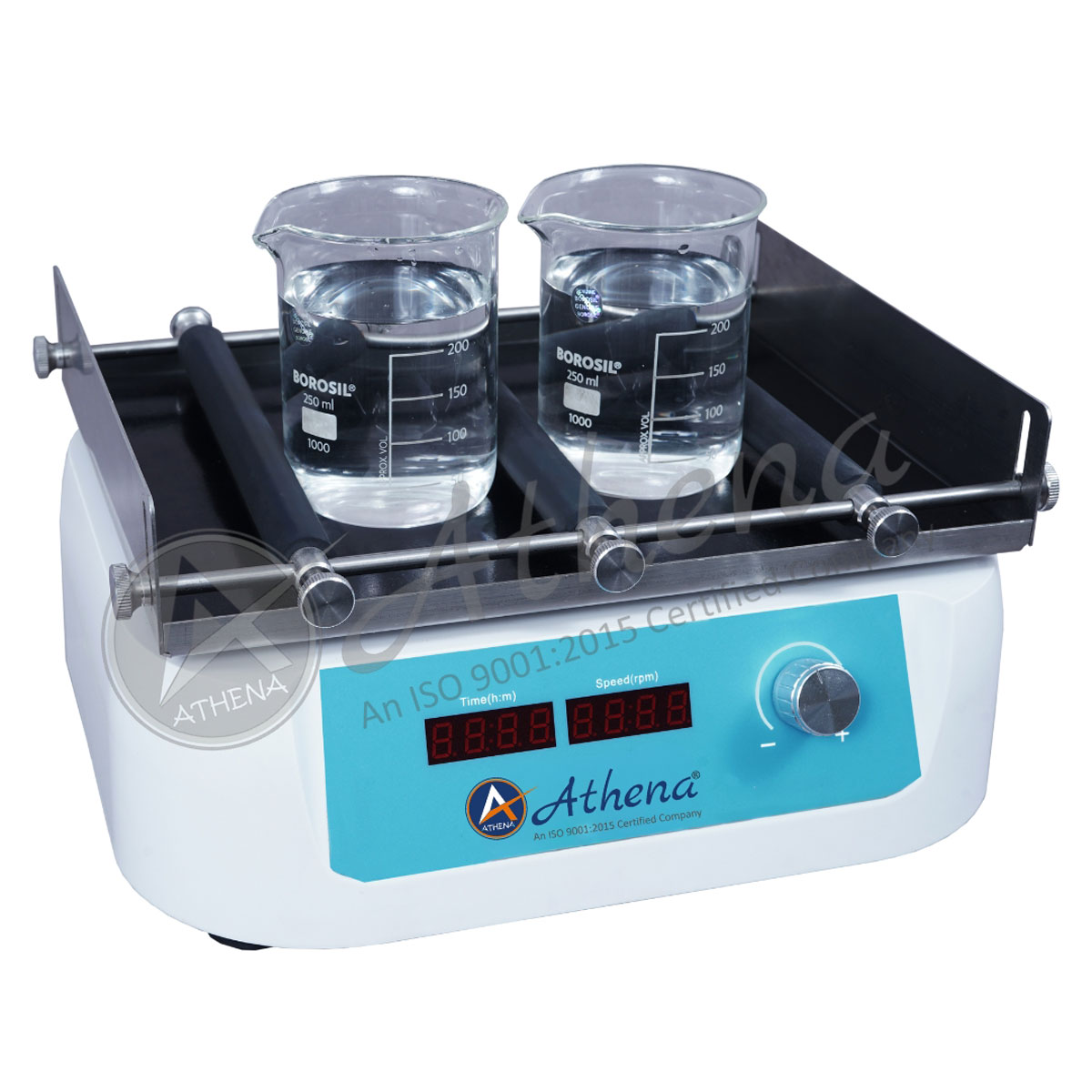

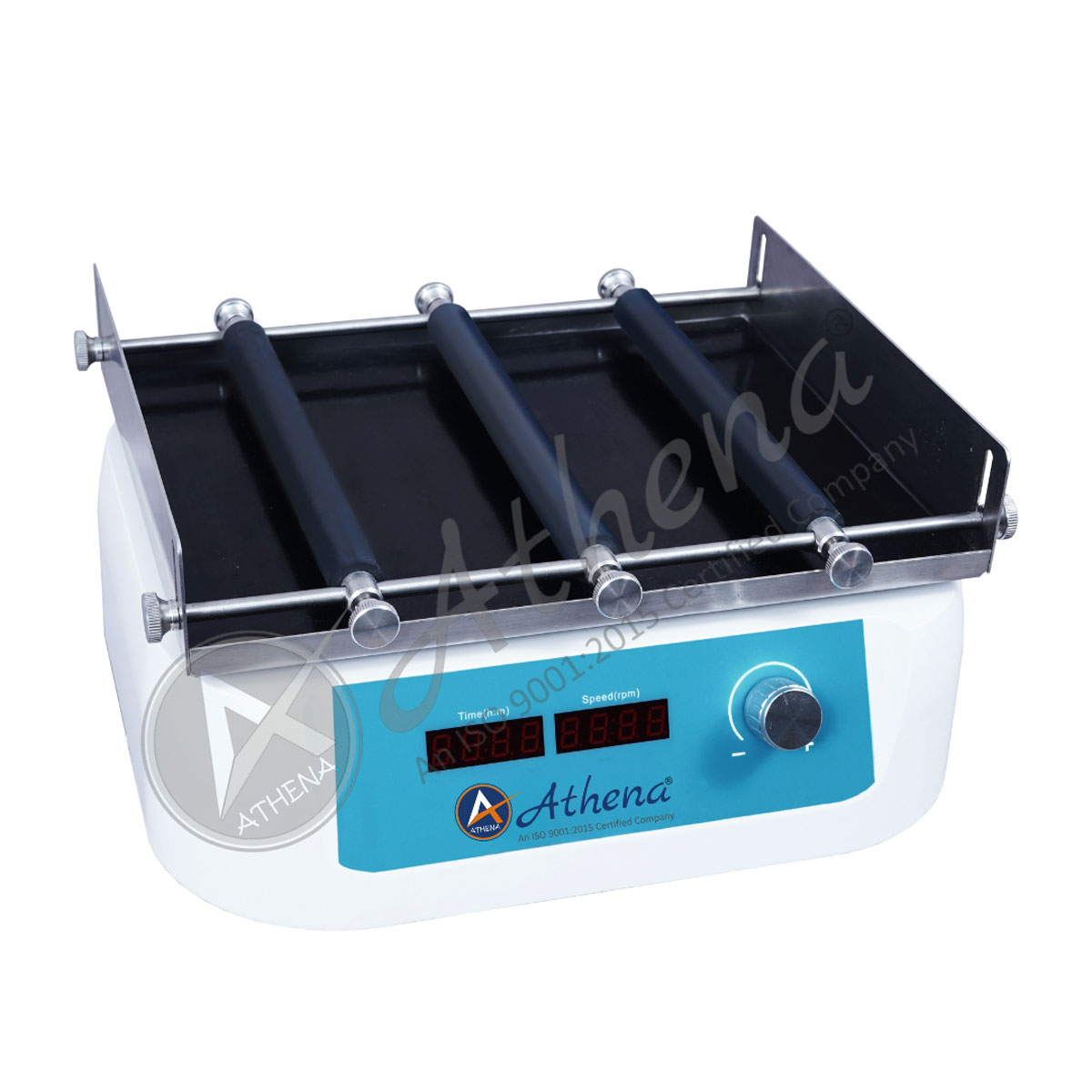

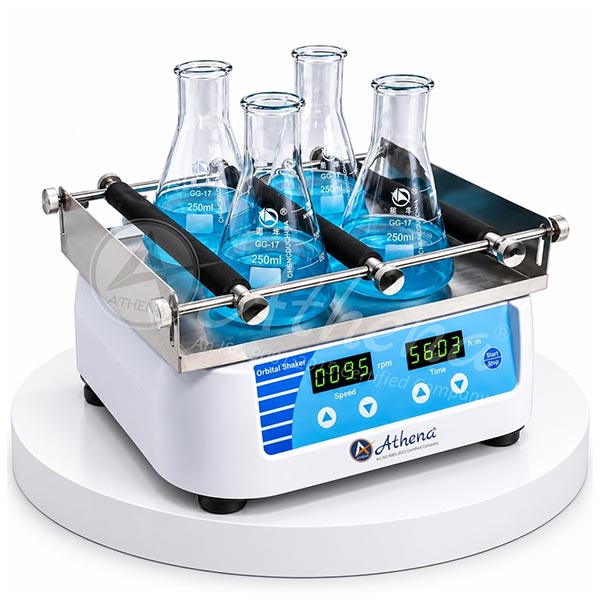

Orbital Shaker
High-Precision Laboratory Mixing Platform
Athena Instruments introduces the Orbital Shaker, a compact, precision-engineered shaking platform designed for efficient and uniform mixing of biological, chemical, and clinical samples. Built with a high-performance DC brushless motor and microprocessor-based control system, the orbital shaker delivers silent, stable, and long-lasting performance—making it ideal for laboratories engaged in molecular biology, microbiology, immunology, chemistry, and quality control.
Available in multiple orbit sizes and speed ranges, the shaker is extensively tested to ensure reproducibility, safety, and compliance with global quality standards including CE, ISO 9001:2015, and FDA.
Product Models & Specifications
|
Model |
Shaking Orbit |
Speed Range |
Time Range |
Max Load |
Power |
Dimensions (mm) |
Net Weight |
|---|---|---|---|---|---|---|---|
| AT-GS-10 | 10 mm | 50 ~ 350 rpm | 1 min ~ 99h 59 min | 3 kg | 50 W | 284 x 264 x 108 | 5.6 kg |
| AT-GS-20 | 20 mm | 50 ~ 300 rpm | 1 min ~ 99h 59 min | 3 kg | 50 W | 284 x 264 x 108 | 5.6 kg |
| AT-GS-30 | 30 mm | 50 ~ 250 rpm | 1 min ~ 99h 59 min | 3 kg | 50 W | 284 x 264 x 108 | 5.6 kg |
- Voltage: AC 100 ~ 230V, 50/60Hz
- Fuse Protection: 250V, 1A, Φ5x20
Platform Options
- Double Deck Platform – P-4A
- Flask Platform – 6-250 / 10-100
- Universal Platform – W-260
- Adjustable Bar Platform – P-12
- Sticky Pad – D-GS
Key Features
Precision Engineering
Built with a high-quality DC brushless motor and micro-computer controller for reliable, maintenance-free operation.
Variable Speed Control
Adjustable speed range from 50 rpm to 350 rpm, based on model, to suit gentle or vigorous mixing applications
Multiple Orbit Options
Available with 10 mm, 20 mm, or 30 mm shaking orbit, ideal for different sample viscosities and mixing needs.
Extended Timing Range
Programmable from 1 minute to 99 hours 59 minutes with automatic shut-off and audible alarm upon completion.
Compact & Durable Design
Streamlined body with vibration-absorbing feet for bench stability, easy cleaning, and low noise output.
Platform Flexibility
Interchangeable platforms to accommodate conical flasks, tubes, microplates, and sample containers of various sizes.
LED Display
Real-time LED display for clear visibility of time and speed settings.
Applications
Life Sciences & Research
For cell culture, staining, hybridization, enzyme reactions, and sample incubation.
Pharmaceutical Labs
Mixing solutions, reagents, or compounds for drug formulation and analysis.
Food & Chemical Testing
Ensures uniform mixing in quality control environments.
Academic Institutions
Reliable tool for routine mixing tasks in teaching and demonstration labs.
Clinical Diagnostics
Ideal for gentle agitation of blood samples, reagents, and assay preparations.
Additional Technical Highlights
Motor Type
Brushless DC motor – silent, durable, and energy-efficient.
Speed Control
Microprocessor controlled, with smooth acceleration and deceleration.
Sample Compatibility
Adapts to a wide variety of flask sizes, microplates, and tubes.
Surface Finish
Easy-clean design with non-slip, corrosion-resistant platforms.
Noise Level
Ultra-low vibration and silent operation (<50 dB).
Custom Configurations
Available on request for unique sample handling requirements.
Why Choose Athena’s Orbital Shaker?
Trusted Performance
Manufactured with uncompromising quality under ISO-certified processes, Athena’s Orbital Shaker is a trusted choice for modern laboratories seeking consistent mixing performance, intuitive control, and global compliance—all in a compact, maintenance-free design.
