Products

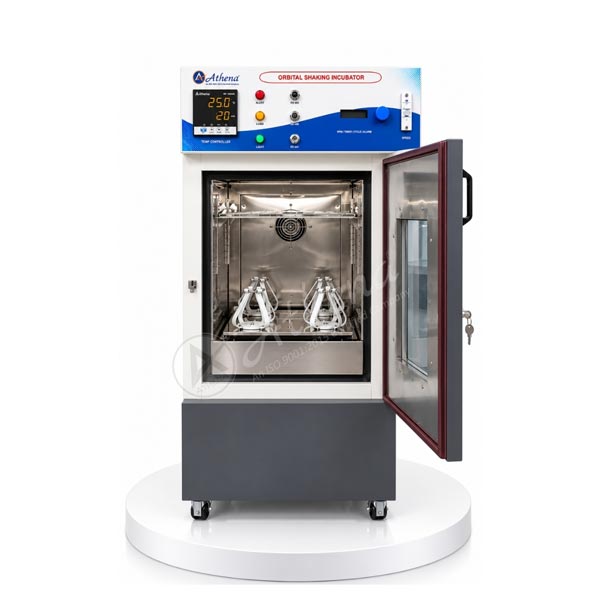

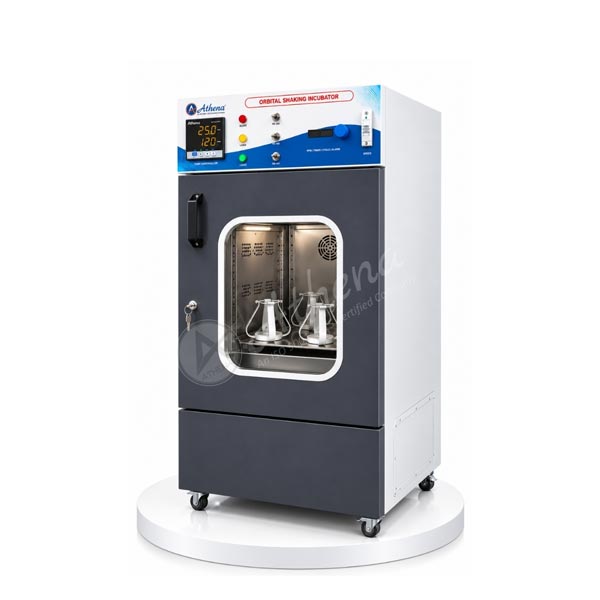

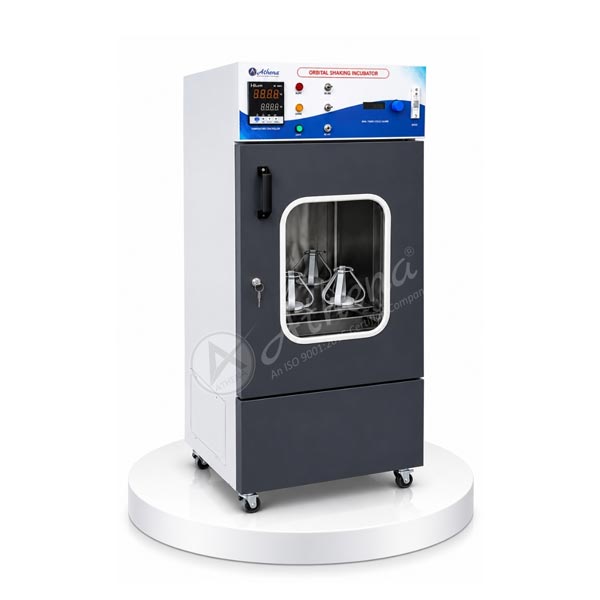

Orbital Shaking Incubator

High-Performance Temperature-Controlled Shaking Chamber for Life Sciences and Biotech Applications

Athena Instruments introduces the Orbital Shaking Incubator, a robust and precision-engineered laboratory system specifically designed for the simultaneous incubation and agitation of biological samples. Engineered to deliver uniform temperature distribution and programmable orbital shaking, this unit is ideal for fermentation, cell culture, enzymatic reactions, molecular biology, and pharmaceutical R&D.

Crafted with SS316 stainless steel interiors, PID-based temperature control, and a variable-speed shaking platform, Athena’s Orbital Shaking Incubator ensures reliable, consistent, and contamination-free performance across research and production environments.

Request a Quote

Product Models & Specifications

Model

Volume

 Platform Size Shaking Capacity Trays Max Flask Capacity
ATOSI-1 100 Ltrs 350 × 350 mm 5 Liters 1

100 ml – 16
250 ml – 9
500 ml – 9
1000 ml – 4
ATOSI-2 200 Ltrs 450 × 450 mm

10 Liters

 2 100 ml – 25
250 ml – 16
500 ml – 16
1000 ml – 9
  • Note : Stainless steel lotus clamps are optional and must be ordered separately. Custom tray layouts available on request.

Key Features

High-Grade Construction
Built with a double-walled body featuring an SS316 stainless steel inner chamber and a powder-coated CRCA outer casing. Insulated with high-density glass wool to reduce heat loss and maintain consistent temperature.
Wide Temperature Range
Operates from 5°C to 60°C, suitable for microbial growth, biochemical studies, and cell line incubation. Maintains stability with ±0.5°C accuracy using a PT-100 sensor.
Dual Heating & Cooling System
  1. Heating via long-life SS air heaters Cooling with Emerson Copeland hermetically sealed compressor
  2. Uses CFC-free R-134A refrigerantfor eco-friendly performance
  3. Over-temperature cutoff system activates at 70°C for enhanced safety
Advanced Orbital Shaking Mechanism
  1. Speed range: 20–250 RPM, controlled by a digital RPM indicator
  2. Shaking amplitude: 25 mm
  3. Powered by a PMDC geared motor for vibration-free, consistent motion
  4. Built-in 999-minute digital timer with audio-visual alarm for timed experiments
Universal Platform Compatibility
  1. Accepts removable SS lotus clamps for flasks ranging from 100 ml to 1000 ml
  2. Adjustable SS rod shelves allow flexible storage of Petri dishes, bottles, and tubes
  3. Interchangeable platform configuration available upon request
Enhanced Visibility & Access
  1. Toughened glass viewing window and internal illumination lamp for real-time sample observation
  2. Lockable insulated door with magnetic gasket ensures airtight sealing and minimal thermal loss

Applications

Biotechnology & Life Sciences
Reliable for bacterial, fungal, yeast, and mammalian cell cultures.
Pharmaceutical R&D
Ideal for fermentation, drug stability testing, and enzymatic activity studies.
Molecular Biology
Supports DNA/RNA hybridization, gene expression studies, and protein analysis.
Environmental & Agricultural Research
Suitable for seed germination, soil testing, and plant tissue culture.
Academic & Industrial Labs
Adaptable for teaching labs and research environments requiring programmable thermal and motion control.

Additional Technical Highlights

check-mark

Material of Construction

SS316 inner chamber, CRCA powder-coated exterior

check-mark

Shaking Drive

PMDC geared motor with variable speed control

check-mark

Sealing Mechanism

Gasket-sealed insulated door with locking mechanism

check-mark

Air Circulation

Motorized blower ensures uniform temperature across the chamber

check-mark

Power Supply

Operates on 230V AC, 50 Hz, single phase

check-mark

User Interface

Microprocessor-based controller with separate displays for RPM and temperature

Why Choose Athena’s Orbital Shaking Incubators?

Precision Incubation

Delivers consistent temperature control with digital accuracy and uniform shaking.

Built for Research

Rugged construction and reliable components ensure long-term use in demanding lab settings.

Modular and Scalable

Available in two chamber sizes with customizable flask configurations.

Certified Quality

Compliant with international standards including CE, ISO 9001:2015, FDA, and GMP.

Backed by Warranty

Includes a 1-Year Manufacturer’s Warranty covering all major components and performance issues.

Global Support

Backed by Athena’s technical support team offering remote and on-site assistance.

Trusted Performance, Certified Quality

Athena’s Orbital Shaking Incubators are CE certified, ISO 9001:2015 compliant, and built under strict quality protocols to deliver field-tested reliability with global certification and long-term operational safety.
